PDF Electronic Seal API

API Parameters

Signature Format (signatureFormat)

Specifies a supported digital signature format:

Document Level Permission (documentLevelPermission)

Specifies the DocMDP (i.e. Document Modification Detection and Prevention) permissions. These permissions are applied to the output electronically sealed document.

data-slots=text
Long Term Validation (LTV) information of Timestamp Certificates (if using Trusted Timestamping) is embedded in the PDF document only if Document Level Permission is set as FORM_FILLING or FORM_FILLING_AND_ANNOTATIONS.

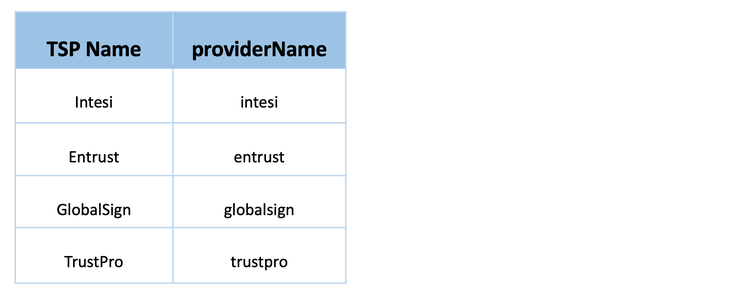

TSP Credential Information (cscCredentialOptions) : Required

TSP parameters encapsulate the sealer's certificate credential as well as the associated authentication and authorization data.

TSA Information (tsaOptions) :

TSA parameters encapsulate the timestamping URL and credentials.

Seal Field Parameters (sealFieldOptions) : Required

The seal field parameters are required to create a new signature field or use an existing signature field.

To add the signature field explicitly, see how to place a signature field in a PDF.

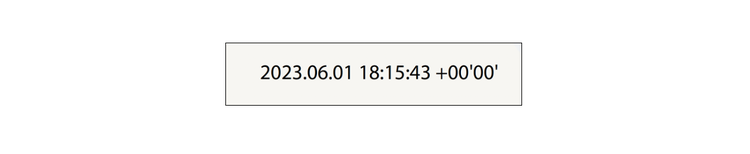

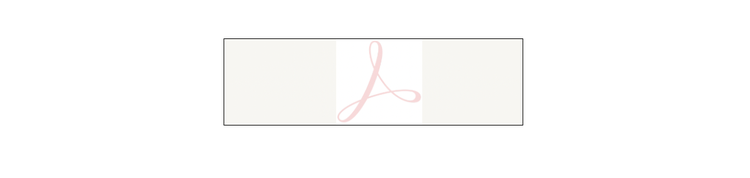

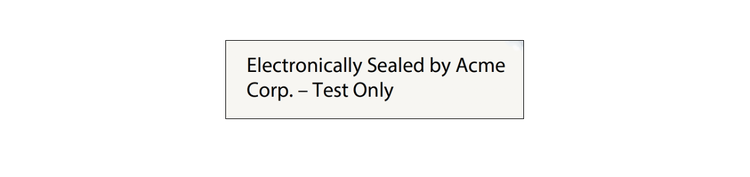

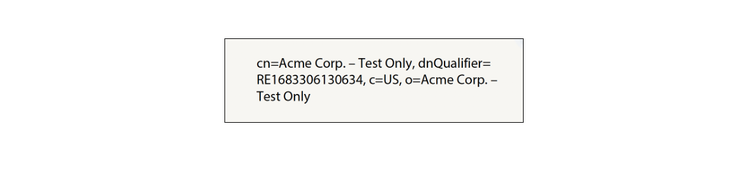

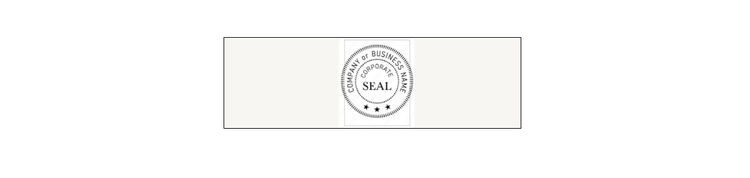

Seal Appearance Parameters (sealAppearanceOptions)

Specifies seal field appearance parameters. These are an enumerated set of display items: NAME, DATE, DISTINGUISHED_NAME, LABELS and SEAL_IMAGE.

Example JSON

{
  "signatureFormat": "PADES",
  "documentLevelPermission": "FORM_FILLING",
  "cscCredentialOptions": {
    "authorizationContext": {
      "accessToken": "<ACCESS_TOKEN>",
      "tokenType": "Bearer"
    },
    "credentialAuthParameters": {
      "pin": "<PIN>"
    },
    "providerName": "<PROVIDER_NAME>",
    "credentialId": "<CREDENTIAL_ID>"
  },
  "tsaOptions": {
    "url": "<TIMESTAMP_URL>",
    "credentialAuthParameters": {
      "username": "<USERNAME>",
      "password": "<PASSWORD>"
    }
  },
  "sealFieldOptions": {
    "pageNumber": 1,
    "fieldName": "Signature1",
    "visible": true,
    "location": {
      "left" : 150,
      "top": 250,
      "bottom": 350,
      "right": 200
    }
  },
  "sealAppearanceOptions": {
    "displayOptions": [
      "NAME",
      "DATE",
      "LABELS",
      "DISTINGUISHED_NAME",
      "SEAL_IMAGE"
    ]
  }
}

data-slots=text
Support of Trusted Timestamping and Document Level Permissions is only available through REST APIs and Java SDK. Other SDKs will support these features in future versions.

API limitations

<br/>

REST API

See our public API Reference for PDF Electronic Seal API.

Apply Electronic Seal with default appearance on PDF

The sample below performs electronic seal operation with default appearance on a given PDF.

Please refer to the API usage guide to understand how to use our APIs.

data-slots=heading, code

data-repeat=5

data-languages=Java, .NET, Node JS, Python, REST API

Java

// Get the samples from https://www.adobe.com/go/pdftoolsapi_java_samples
// Run the sample:
// mvn -f pom.xml exec:java -Dexec.mainClass=com.adobe.pdfservices.operation.samples.electronicseal.ElectronicSeal

package com.adobe.pdfservices.operation.samples.electronicseal;

public class ElectronicSeal {

    // Initialize the logger.
    private static final Logger LOGGER = LoggerFactory.getLogger(ElectronicSeal.class);

    public static void main(String[] args) {
        try (InputStream inputStream = Files.newInputStream(new File("src/main/resources/sampleInvoice.pdf").toPath());
             InputStream inputStreamSealImage = Files.newInputStream(new File("src/main/resources/sampleSealImage.png").toPath())) {
            // Initial setup, create credentials instance
            Credentials credentials = new ServicePrincipalCredentials(
                System.getenv("PDF_SERVICES_CLIENT_ID"),
                System.getenv("PDF_SERVICES_CLIENT_SECRET"));

            // Creates a PDF Services instance
            PDFServices pdfServices = new PDFServices(credentials);

            // Creates an asset(s) from source file(s) and upload
            Asset asset = pdfServices.upload(inputStream, PDFServicesMediaType.PDF.getMediaType());
            Asset sealImageAsset = pdfServices.upload(inputStreamSealImage, PDFServicesMediaType.PNG.getMediaType());

            // Set the document level permission to be applied for output document
            DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

            // Sets the Seal Field Name to be created in input PDF document.
            String sealFieldName = "Signature1";

            // Sets the page number in input document for applying seal.
            Integer sealPageNumber = 1;

            // Sets if seal should be visible or invisible.
            Boolean sealVisible = true;

            // Creates FieldLocation instance and set the coordinates for applying signature
            FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

            // Create FieldOptions instance with required details.
            FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                .setFieldLocation(fieldLocation)
                .setPageNumber(sealPageNumber)
                .setVisible(sealVisible)
                .build();

            // Sets the name of TSP Provider being used.
            String providerName = "<PROVIDER_NAME>";

            // Sets the access token to be used to access TSP provider hosted APIs.
            String accessToken = "<ACCESS_TOKEN>";

            // Sets the credential ID.
            String credentialID = "<CREDENTIAL_ID>";

            // Sets the PIN generated while creating credentials.
            String pin = "<PIN>";

            // Creates CSCAuthContext instance using access token and token type.
            CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

            // Create CertificateCredentials instance with required certificate details.
            CertificateCredentials certificateCredentials = CertificateCredentials.cscCredentialBuilder()
                .withProviderName(providerName)
                .withCredentialID(credentialID)
                .withPin(pin)
                .withCSCAuthContext(cscAuthContext)
                .build();

            // Create parameters for the job
            PDFElectronicSealParams pdfElectronicSealParams = PDFElectronicSealParams
                .pdfElectronicSealParamsBuilder(certificateCredentials, fieldOptions)
                .withDocumentLevelPermission(documentLevelPermission)
                .build();

            // Creates a new job instance
            PDFElectronicSealJob pdfElectronicSealJob = new PDFElectronicSealJob(asset, pdfElectronicSealParams);

            // Sets the optional input seal image for PDFElectronicSealOperation instance
            pdfElectronicSealJob.setSealImageAsset(sealImageAsset);

            // Submit the job and gets the job result
            String location = pdfServices.submit(pdfElectronicSealJob);
            PDFServicesResponse<PDFElectronicSealResult> pdfServicesResponse = pdfServices.getJobResult(location, PDFElectronicSealResult.class);

            // Get content from the resulting asset(s)
            Asset resultAsset = pdfServicesResponse.getResult().getAsset();
            StreamAsset streamAsset = pdfServices.getContent(resultAsset);

            // Creates an output stream and copy stream asset's content to it
            Files.createDirectories(Paths.get("output/"));
            OutputStream outputStream = Files.newOutputStream(new File("output/sealedOutput.pdf").toPath());
            LOGGER.info("Saving asset at output/sealedOutput.pdf");
            IOUtils.copy(streamAsset.getInputStream(), outputStream);
            outputStream.close();
        } catch (ServiceApiException | IOException | SDKException | ServiceUsageException ex) {
            LOGGER.error("Exception encountered while executing operation", ex);
        }
    }
}

.NET

// Get the samples from https://www.adobe.com/go/pdftoolsapi_net_samples
// Run the sample:
// cd ElectronicSeal/
// dotnet run ElectronicSeal.csproj

namespace ElectronicSeal
{
    class Program
    {
        // Initialize the logger.
        private static readonly ILog log = LogManager.GetLogger(typeof(Program));

        static void Main()
        {
            //Configure the logging
            ConfigureLogging();

            try
            {
                // Initial setup, create credentials instance
                ICredentials credentials = new ServicePrincipalCredentials(
                    Environment.GetEnvironmentVariable("PDF_SERVICES_CLIENT_ID"),
                    Environment.GetEnvironmentVariable("PDF_SERVICES_CLIENT_SECRET"));

                // Creates a PDF Services instance
                PDFServices pdfServices = new PDFServices(credentials);

                // Creates an asset(s) from source file(s) and upload
                using Stream inputStream = File.OpenRead(@"SampleInvoice.pdf");
                using Stream inputStreamSealImage = File.OpenRead(@"sampleSealImage.png");
                IAsset asset = pdfServices.Upload(inputStream, PDFServicesMediaType.PDF.GetMIMETypeValue());
                IAsset sealImageAsset =
                    pdfServices.Upload(inputStreamSealImage, PDFServicesMediaType.PNG.GetMIMETypeValue());

                // Set the document level permission to be applied for output document
                DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

                // Sets the Seal Field Name to be created in input PDF document.
                String sealFieldName = "Signature1";

                // Sets the page number in input document for applying seal.
                int sealPageNumber = 1;

                // Sets if seal should be visible or invisible.
                bool sealVisible = true;

                // Creates FieldLocation instance and set the coordinates for applying signature
                FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

                // Create FieldOptions instance with required details.
                FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                    .SetVisible(sealVisible)
                    .SetFieldLocation(fieldLocation)
                    .SetPageNumber(sealPageNumber)
                    .Build();

                // Sets the name of TSP Provider being used.
                String providerName = "<PROVIDER_NAME>";

                // Sets the access token to be used to access TSP provider hosted APIs.
                String accessToken = "<ACCESS_TOKEN>";

                // Sets the credential ID.
                String credentialID = "<CREDENTIAL_ID>";

                // Sets the PIN generated while creating credentials.
                String pin = "<PIN>";

                // Creates CSCAuthContext instance using access token and token type.
                CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

                // Create CertificateCredentials instance with required certificate details.
                CertificateCredentials certificateCredentials = CertificateCredentials.CSCCredentialBuilder()
                    .WithProviderName(providerName)
                    .WithCredentialID(credentialID)
                    .WithPin(pin)
                    .WithCSCAuthContext(cscAuthContext)
                    .Build();

                // Create parameters for the job
                PDFElectronicSealParams pdfElectronicSealParams =
                    PDFElectronicSealParams.PDFElectronicSealParamsBuilder(certificateCredentials, fieldOptions)
                        .WithDocumentLevelPermission(documentLevelPermission)
                        .Build();

                // Creates a new job instance
                PDFElectronicSealJob pdfElectronicSealJob = new PDFElectronicSealJob(asset, pdfElectronicSealParams);
                pdfElectronicSealJob.SetSealImageAsset(sealImageAsset);

                // Submits the job and gets the job result
                String location = pdfServices.Submit(pdfElectronicSealJob);
                PDFServicesResponse<PDFElectronicSealResult> pdfServicesResponse =
                    pdfServices.GetJobResult<PDFElectronicSealResult>(location, typeof(PDFElectronicSealResult));

                // Get content from the resulting asset(s)
                IAsset resultAsset = pdfServicesResponse.Result.Asset;
                StreamAsset streamAsset = pdfServices.GetContent(resultAsset);

                // Creating output streams and copying stream asset's content to it
                String outputFilePath = "/output/sealedOutput.pdf";
                new FileInfo(Directory.GetCurrentDirectory() + outputFilePath).Directory.Create();
                Stream outputStream = File.OpenWrite(Directory.GetCurrentDirectory() + outputFilePath);
                streamAsset.Stream.CopyTo(outputStream);
                outputStream.Close();
            }
            catch (ServiceUsageException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (ServiceApiException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (SDKException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (IOException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (Exception ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
        }

        static void ConfigureLogging()
        {
            ILoggerRepository logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
            XmlConfigurator.Configure(logRepository, new FileInfo("log4net.config"));
        }
    }
}

Node JS

// Get the samples from http://www.adobe.com/go/pdftoolsapi_node_sample
// Run the sample:
// node src/electronicseal/electronic-seal.js

const {
    ServicePrincipalCredentials,
    PDFServices,
    MimeType,
    DocumentLevelPermission,
    FieldLocation,
    FieldOptions,
    CSCAuthContext,
    CSCCredential,
    PDFElectronicSealParams,
    PDFElectronicSealJob,
    PDFElectronicSealResult,
    SDKError,
    ServiceUsageError,
    ServiceApiError
} = require("@adobe/pdfservices-node-sdk");
const fs = require("fs");

(async () => {
    let sourceFileReadStream;
    let sealImageReadStream;
    try {
        // Initial setup, create credentials instance
        const credentials = new ServicePrincipalCredentials({
            clientId: process.env.PDF_SERVICES_CLIENT_ID,
            clientSecret: process.env.PDF_SERVICES_CLIENT_SECRET
        });

        // Creates a PDF Services instance
        const pdfServices = new PDFServices({credentials});

        // Creates an asset(s) from source file(s) and upload
        sourceFileReadStream = fs.createReadStream("./sampleInvoice.pdf")
        sealImageReadStream = fs.createReadStream("./sampleSealImage.png");
        const [sourceFileAsset, sealImageAsset] = await pdfServices.uploadAssets({
            streamAssets: [{
                readStream: sourceFileReadStream,
                mimeType: MimeType.PDF
            }, {
                readStream: sealImageReadStream,
                mimeType: MimeType.PNG
            }]
        });

        // Set the document level permission to be applied for output document
        const documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

        // Set the Seal Field Name to be created in input PDF document
        const sealFieldName = "Signature1";

        // Set the page number in input document for applying seal
        const sealPageNumber = 1;

        // Set if seal should be visible or invisible
        const sealVisible = true;

        // Create FieldLocation instance and set the coordinates for applying signature
        const fieldLocation = new FieldLocation({
            left: 150,
            top: 250,
            right: 350,
            bottom: 200
        });

        // Create FieldOptions instance with required details
        const sealFieldOptions = new FieldOptions({
            visible: sealVisible,
            location: fieldLocation,
            fieldName: sealFieldName,
            pageNumber: sealPageNumber,
        });

        // Set the name of TSP Provider being used
        const providerName = "<PROVIDER_NAME>";

        // Set the access token to be used to access TSP provider hosted APIs
        const accessToken = "<ACCESS_TOKEN>";

        // Set the credential ID
        const credentialId = "<CREDENTIAL_ID>";

        // Set the PIN generated while creating credentials
        const pin = "<PIN>";

        // Create CSCAuthContext instance using access token and token type
        const authorizationContext = new CSCAuthContext({
            accessToken,
            tokenType: "Bearer"
        });

        // Create CertificateCredentials instance with required certificate details
        const certificateCredentials = new CSCCredential({
            providerName,
            credentialId,
            pin,
            authorizationContext,
        });

        // Create parameters for the job
        const params = new PDFElectronicSealParams({
            certificateCredentials,
            sealFieldOptions,
            documentLevelPermission,
        });

        // Creates a new job instance
        const job = new PDFElectronicSealJob({
            inputAsset: sourceFileAsset,
            sealImageAsset,
            params,
        });

        // Submit the job and get the job result
        const pollingURL = await pdfServices.submit({job});
        const pdfServicesResponse = await pdfServices.getJobResult({
            pollingURL,
            resultType: PDFElectronicSealResult
        });

        // Get content from the resulting asset(s)
        const resultAsset = pdfServicesResponse.result.asset;
        const streamAsset = await pdfServices.getContent({asset: resultAsset});

        // Creates a write stream and copy stream asset's content to it
        const outputFilePath = "./sealedOutput.pdf";
        console.log(`Saving asset at ${outputFilePath}`);

        const writeStream = fs.createWriteStream(outputFilePath);
        streamAsset.readStream.pipe(writeStream);
    } catch (err) {
        if (err instanceof SDKError || err instanceof ServiceUsageError || err instanceof ServiceApiError) {
            console.log("Exception encountered while executing operation", err);
        } else {
            console.log("Exception encountered while executing operation", err);
        }
    } finally {
        sourceFileReadStream?.destroy();
        sealImageReadStream?.destroy();
    }
})();

Python


# Initialize the logger
logging.basicConfig(level=logging.INFO)

class ElectronicSeal:
    def __init__(self):
        try:
            pdf_file = open('./sampleInvoice.pdf', 'rb')
            file_input_stream = pdf_file.read()
            pdf_file.close()

            seal_image_file = open('./sampleSealImage.png', 'rb')
            seal_image_input_stream = seal_image_file.read()
            seal_image_file.close()

            # Initial setup, create credentials instance
            credentials = ServicePrincipalCredentials(
                client_id=os.getenv('PDF_SERVICES_CLIENT_ID'),
                client_secret=os.getenv('PDF_SERVICES_CLIENT_SECRET')
            )

            # Creates a PDF Services instance
            pdf_services = PDFServices(credentials=credentials)

            # Creates an asset(s) from source file(s) and upload
            asset = pdf_services.upload(input_stream=file_input_stream, mime_type=PDFServicesMediaType.PDF)
            seal_image_asset = pdf_services.upload(input_stream=seal_image_input_stream, mime_type=PDFServicesMediaType.PNG)

            # Set the document level permission to be applied for output document
            document_level_permission = DocumentLevelPermission.FORM_FILLING

            # Sets the Seal Field Name to be created in input PDF document.
            seal_field_name = "Signature1"

            # Sets the page number in input document for applying seal.
            seal_page_number = 1

            # Sets if seal should be visible or invisible.
            seal_visible = True

            # Creates FieldLocation instance and set the coordinates for applying signature
            field_location = FieldLocation(150, 250, 350, 200)

            # Create FieldOptions instance with required details.
            field_options = FieldOptions(
                field_name=seal_field_name,
                field_location=field_location,
                page_number=seal_page_number,
                visible=seal_visible
            )

            # Sets the name of TSP Provider being used.
            provider_name = "<PROVIDER_NAME>"

            # Sets the access token to be used to access TSP provider hosted APIs.
            access_token = "<ACCESS_TOKEN>"

            # Sets the credential ID.
            credential_id = "<CREDENTIAL_ID>"

            # Sets the PIN generated while creating credentials.
            pin = "<PIN>"

            # Creates CSCAuthContext instance using access token and token type.
            csc_auth_context = CSCAuthContext(
                access_token=access_token,
                token_type="Bearer",
            )

            # Create CertificateCredentials instance with required certificate details.
            certificate_credentials = CSCCredentials(
                provider_name=provider_name,
                credential_id=credential_id,
                pin=pin,
                csc_auth_context=csc_auth_context,
            )

            # Create parameters for the job
            electronic_seal_params = PDFElectronicSealParams(
                seal_certificate_credentials=certificate_credentials,
                seal_field_options=field_options,
            )

            # Creates a new job instance
            electronic_seal_job = PDFElectronicSealJob(input_asset=asset,
                                                       electronic_seal_params=electronic_seal_params,
                                                       seal_image_asset=seal_image_asset)

            # Submit the job and gets the job result
            location = pdf_services.submit(electronic_seal_job)
            pdf_services_response = pdf_services.get_job_result(location, ESealPDFResult)

            # Get content from the resulting asset(s)
            result_asset: CloudAsset = pdf_services_response.get_result().get_asset()
            stream_asset: StreamAsset = pdf_services.get_content(result_asset)

            # Creates an output stream and copy stream asset's content to it

            output_file_path = 'output/ElectronicSeal.pdf'
            with open(output_file_path, "wb") as file:
                file.write(stream_asset.get_input_stream())

        except (ServiceApiException, ServiceUsageException, SdkException) as e:
            logging.exception(f'Exception encountered while executing operation: {e}')

if __name__ == "__main__":
    ElectronicSeal()

REST API

curl --location --request POST 'https://pdf-services.adobe.io/operation/electronicseal' \
--header 'x-api-key: {{Placeholder for client_id}}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {{Placeholder for token}}' \
--data-raw '{
    "inputDocumentAssetID": "urn:aaid:AS:UE1:23c30ee0-2c4d-xxxx-xxxx-087832fca718",
    "sealImageAssetID": "urn:aaid:AS:UE1:23c30ee0-2e4d-xxxx-xxxx-087832fca718",
    "sealOptions": {
        "signatureFormat": "PKCS7",
        "documentLevelPermission": "FORM_FILLING",
        "cscCredentialOptions": {
            "credentialId": "<CREDENTIAL_ID>",
            "providerName": "<PROVIDER_NAME>",
            "authorizationContext": {
                "tokenType": "Bearer",
                "accessToken": "<ACCESS_TOKEN>"
            },
            "credentialAuthParameters": {
                "pin": "<PIN>"
            }
        },
        "sealFieldOptions": {
            "location": {
                "left": 150,
                "top": 250,
                "right": 350,
                "bottom": 200
            },
            "fieldName": "Signature1",
            "pageNumber": 1
        }
    }
}'

Apply Electronic Seal with customized appearance on PDF

The sample below performs electronic seal operation with customized appearance on a given PDF.

Please refer to the API usage guide to understand how to use our APIs.

data-slots=heading, code

data-repeat=5

data-languages=Java, .NET, Node JS, Python, REST API

Java

// Get the samples from https://github.com/adobe/pdfservices-java-sdk-samples/tree/beta
// Run the sample:
// mvn -f pom.xml exec:java -Dexec.mainClass=com.adobe.pdfservices.operation.samples.electronicseal.ElectronicSealWithAppearanceOptions

package com.adobe.pdfservices.operation.samples.electronicseal;

public class ElectronicSealWithAppearanceOptions {

    // Initialize the logger.
    private static final Logger LOGGER = LoggerFactory.getLogger(ElectronicSealWithAppearanceOptions.class);

    public static void main(String[] args) {
        try (InputStream inputStream = Files.newInputStream(new File("src/main/resources/sampleInvoice.pdf").toPath());
             InputStream inputStreamSealImage = Files.newInputStream(new File("src/main/resources/sampleSealImage.png").toPath())) {
            // Initial setup, create credentials instance
            Credentials credentials = new ServicePrincipalCredentials(
                System.getenv("PDF_SERVICES_CLIENT_ID"),
                System.getenv("PDF_SERVICES_CLIENT_SECRET"));

            // Creates a PDF Services instance
            PDFServices pdfServices = new PDFServices(credentials);

            // Creates an asset(s) from source file(s) and upload
            Asset asset = pdfServices.upload(inputStream, PDFServicesMediaType.PDF.getMediaType());
            Asset sealImageAsset = pdfServices.upload(inputStreamSealImage, PDFServicesMediaType.PNG.getMediaType());

            // Set the document level permission to be applied for output document
            DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

            // Create AppearanceOptions and add the required signature display items to it
            AppearanceOptions appearanceOptions = new AppearanceOptions();
            appearanceOptions.addItem(AppearanceItem.NAME);
            appearanceOptions.addItem(AppearanceItem.LABELS);
            appearanceOptions.addItem(AppearanceItem.DATE);
            appearanceOptions.addItem(AppearanceItem.SEAL_IMAGE);
            appearanceOptions.addItem(AppearanceItem.DISTINGUISHED_NAME);


            // Sets the Seal Field Name to be created in input PDF document.
            String sealFieldName = "Signature1";

            // Sets the page number in input document for applying seal.
            Integer sealPageNumber = 1;

            // Sets if seal should be visible or invisible.
            Boolean sealVisible = true;

            // CreatesFieldLocation instance and set the coordinates for applying signature
            FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

            // Create FieldOptions instance with required details.
            FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                .setFieldLocation(fieldLocation)
                .setPageNumber(sealPageNumber)
                .setVisible(sealVisible)
                .build();

            // Sets the name of TSP Provider being used.
            String providerName = "<PROVIDER_NAME>";

            // Sets the access token to be used to access TSP provider hosted APIs.
            String accessToken = "<ACCESS_TOKEN>";

            // Sets the credential ID.
            String credentialID = "<CREDENTIAL_ID>";

            // Sets the PIN generated while creating credentials.
            String pin = "<PIN>";

            // Creates CSCAuthContext instance using access token and token type.
            CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

            // Create CertificateCredentials instance with required certificate details.
            CertificateCredentials certificateCredentials = CertificateCredentials.cscCredentialBuilder()
                .withProviderName(providerName)
                .withCredentialID(credentialID)
                .withPin(pin)
                .withCSCAuthContext(cscAuthContext)
                .build();

            // Create parameters for the job
            PDFElectronicSealParams pdfElectronicSealParams = PDFElectronicSealParams
                .pdfElectronicSealParamsBuilder(certificateCredentials, fieldOptions)
                .withDocumentLevelPermission(documentLevelPermission)
                .withAppearanceOptions(appearanceOptions)
                .build();

            // Creates a new job instance
            PDFElectronicSealJob pdfElectronicSealJob = new PDFElectronicSealJob(asset, pdfElectronicSealParams);
            pdfElectronicSealJob.setSealImageAsset(sealImageAsset);

            // Submit the job and gets the job result
            String location = pdfServices.submit(pdfElectronicSealJob);
            PDFServicesResponse<PDFElectronicSealResult> pdfServicesResponse = pdfServices.getJobResult(location, PDFElectronicSealResult.class);

            // Get content from the resulting asset(s)
            Asset resultAsset = pdfServicesResponse.getResult().getAsset();
            StreamAsset streamAsset = pdfServices.getContent(resultAsset);

            // Creates an output stream and copy stream asset's content to it
            Files.createDirectories(Paths.get("output/"));
            OutputStream outputStream = Files.newOutputStream(new File("output/sealedOutput.pdf").toPath());
            LOGGER.info("Saving asset at output/sealedOutput.pdf");
            IOUtils.copy(streamAsset.getInputStream(), outputStream);
            outputStream.close();
        } catch (ServiceApiException | IOException | SDKException | ServiceUsageException ex) {
            LOGGER.error("Exception encountered while executing operation", ex);
        }
    }
}

.NET

// Get the samples from https://www.adobe.com/go/pdftoolsapi_net_samples
// Run the sample:
// cd ElectronicSealWithAppearanceOptions/
// dotnet run ElectronicSealWithAppearanceOptions.csproj

namespace ElectronicSealWithAppearanceOptions
{
        class Program
    {
        // Initialize the logger.
        private static readonly ILog log = LogManager.GetLogger(typeof(Program));

        static void Main()
        {
            //Configure the logging
            ConfigureLogging();

            try
            {
                // Initial setup, create credentials instance
                ICredentials credentials = new ServicePrincipalCredentials(
                    Environment.GetEnvironmentVariable("PDF_SERVICES_CLIENT_ID"),
                    Environment.GetEnvironmentVariable("PDF_SERVICES_CLIENT_SECRET"));

                // Creates a PDF Services instance
                PDFServices pdfServices = new PDFServices(credentials);

                // Creates an asset(s) from source file(s) and upload
                using Stream inputStream = File.OpenRead(@"SampleInvoice.pdf");
                using Stream inputStreamSealImage = File.OpenRead(@"sampleSealImage.png");
                IAsset asset = pdfServices.Upload(inputStream, PDFServicesMediaType.PDF.GetMIMETypeValue());
                IAsset sealImageAsset =
                    pdfServices.Upload(inputStreamSealImage, PDFServicesMediaType.PNG.GetMIMETypeValue());

                // Create AppearanceOptions and add the required signature display items to it
                AppearanceOptions appearanceOptions = new AppearanceOptions();
                appearanceOptions.AddItem(AppearanceItem.NAME);
                appearanceOptions.AddItem(AppearanceItem.LABELS);
                appearanceOptions.AddItem(AppearanceItem.DATE);
                appearanceOptions.AddItem(AppearanceItem.SEAL_IMAGE);
                appearanceOptions.AddItem(AppearanceItem.DISTINGUISHED_NAME);

                // Set the document level permission to be applied for output document
                DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

                // Sets the Seal Field Name to be created in input PDF document.
                String sealFieldName = "Signature1";

                // Sets the page number in input document for applying seal.
                int sealPageNumber = 1;

                // Sets if seal should be visible or invisible.
                bool sealVisible = true;

                // Creates FieldLocation instance and set the coordinates for applying signature
                FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

                // Create FieldOptions instance with required details.
                FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                    .SetVisible(sealVisible)
                    .SetFieldLocation(fieldLocation)
                    .SetPageNumber(sealPageNumber)
                    .Build();

                // Sets the name of TSP Provider being used.
                String providerName = "<PROVIDER_NAME>";

                // Sets the access token to be used to access TSP provider hosted APIs.
                String accessToken = "<ACCESS_TOKEN>";

                // Sets the credential ID.
                String credentialID = "<CREDENTIAL_ID>";

                // Sets the PIN generated while creating credentials.
                String pin = "<PIN>";

                // Creates CSCAuthContext instance using access token and token type.
                CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

                // Create CertificateCredentials instance with required certificate details.
                CertificateCredentials certificateCredentials = CertificateCredentials.CSCCredentialBuilder()
                    .WithProviderName(providerName)
                    .WithCredentialID(credentialID)
                    .WithPin(pin)
                    .WithCSCAuthContext(cscAuthContext)
                    .Build();

                // Create parameters for the job
                PDFElectronicSealParams pdfElectronicSealParams =
                    PDFElectronicSealParams.PDFElectronicSealParamsBuilder(certificateCredentials, fieldOptions)
                        .WithDocumentLevelPermission(documentLevelPermission)
                        .WithAppearanceOptions(appearanceOptions)
                        .Build();

                // Creates a new job instance
                PDFElectronicSealJob pdfElectronicSealJob = new PDFElectronicSealJob(asset, pdfElectronicSealParams);
                pdfElectronicSealJob.SetSealImageAsset(sealImageAsset);

                // Submits the job and gets the job result
                String location = pdfServices.Submit(pdfElectronicSealJob);
                PDFServicesResponse<PDFElectronicSealResult> pdfServicesResponse =
                    pdfServices.GetJobResult<PDFElectronicSealResult>(location, typeof(PDFElectronicSealResult));

                // Get content from the resulting asset(s)
                IAsset resultAsset = pdfServicesResponse.Result.Asset;
                StreamAsset streamAsset = pdfServices.GetContent(resultAsset);

                // Creating output streams and copying stream asset's content to it
                String outputFilePath = "/output/sealedOutput.pdf";
                new FileInfo(Directory.GetCurrentDirectory() + outputFilePath).Directory.Create();
                Stream outputStream = File.OpenWrite(Directory.GetCurrentDirectory() + outputFilePath);
                streamAsset.Stream.CopyTo(outputStream);
                outputStream.Close();
            }
            catch (ServiceUsageException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (ServiceApiException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (SDKException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (IOException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (Exception ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
        }

        static void ConfigureLogging()
        {
            ILoggerRepository logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
            XmlConfigurator.Configure(logRepository, new FileInfo("log4net.config"));
        }
    }
}

Node JS

// Get the samples from http://www.adobe.com/go/pdftoolsapi_node_sample
// Run the sample:
// node src/electronicseal/electronic-seal-with-appearance-options.js

const {
    ServicePrincipalCredentials,
    PDFServices,
    MimeType,
    FieldLocation,
    FieldOptions,
    CSCAuthContext,
    CSCCredential,
    PDFElectronicSealParams,
    PDFElectronicSealJob,
    PDFElectronicSealResult,
    AppearanceOptions,
    AppearanceItem,
    SDKError,
    ServiceUsageError,
    ServiceApiError, DocumentLevelPermission
} = require("@adobe/pdfservices-node-sdk");
const fs = require("fs");

(async () => {

    let sourceFileReadStream;
    let sealImageReadStream;
    try {
        // Initial setup, create credentials instance
        const credentials = new ServicePrincipalCredentials({
            clientId: process.env.PDF_SERVICES_CLIENT_ID,
            clientSecret: process.env.PDF_SERVICES_CLIENT_SECRET
        });

        // Creates a PDF Services instance
        const pdfServices = new PDFServices({credentials});

        // Creates an asset(s) from source file(s) and upload
        sourceFileReadStream = fs.createReadStream("./sampleInvoice.pdf")
        sealImageReadStream = fs.createReadStream("./sampleSealImage.png");
        const [sourceFileAsset, sealImageAsset] = await pdfServices.uploadAssets({
            streamAssets: [{
                readStream: sourceFileReadStream,
                mimeType: MimeType.PDF
            }, {
                readStream: sealImageReadStream,
                mimeType: MimeType.PNG
            }]
        });

        // Set the document level permission to be applied for output document
        const documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

        // Create AppearanceOptions and add the required signature appearance items
        const sealAppearanceOptions = new AppearanceOptions({
            items: [
                AppearanceItem.DATE,
                AppearanceItem.SEAL_IMAGE,
                AppearanceItem.NAME,
                AppearanceItem.LABELS,
                AppearanceItem.DISTINGUISHED_NAME
            ]
        });

        // Set the Seal Field Name to be created in input PDF document
        const sealFieldName = "Signature1";

        // Set the page number in input document for applying seal
        const sealPageNumber = 1;

        // Set if seal should be visible or invisible
        const sealVisible = true;

        // Create FieldLocation instance and set the coordinates for applying signature
        const fieldLocation = new FieldLocation({
            left: 150,
            top: 250,
            right: 350,
            bottom: 200
        });

        // Create FieldOptions instance with required details
        const sealFieldOptions = new FieldOptions({
            visible: sealVisible,
            location: fieldLocation,
            fieldName: sealFieldName,
            pageNumber: sealPageNumber,
        });

        // Set the name of TSP Provider being used
        const providerName = "<PROVIDER_NAME>";

        // Set the access token to be used to access TSP provider hosted APIs
        const accessToken = "<ACCESS_TOKEN>";

        // Set the credential ID
        const credentialId = "<CREDENTIAL_ID>";

        // Set the PIN generated while creating credentials
        const pin = "<PIN>";

        // Create CSCAuthContext instance using access token and token type
        const authorizationContext = new CSCAuthContext({
            accessToken,
            tokenType: "Bearer"
        });

        // Create CertificateCredentials instance with required certificate details
        const certificateCredentials = new CSCCredential({
            providerName,
            credentialId,
            pin,
            authorizationContext,
        });

        // Create parameters for the job
        const params = new PDFElectronicSealParams({
            documentLevelPermission
            certificateCredentials,
            sealFieldOptions,
            sealAppearanceOptions
        });

        // Creates a new job instance
        const job = new PDFElectronicSealJob({
            inputAsset: sourceFileAsset,
            sealImageAsset,
            params,
        });

        // Submit the job and get the job result
        const pollingURL = await pdfServices.submit({job});
        const pdfServicesResponse = await pdfServices.getJobResult({
            pollingURL,
            resultType: PDFElectronicSealResult
        });

        // Get content from the resulting asset(s)
        const resultAsset = pdfServicesResponse.result.asset;
        const streamAsset = await pdfServices.getContent({asset: resultAsset});

        // Creates a write stream and copy stream asset's content to it
        const outputFilePath = "./sealedOutput.pdf";
        console.log(`Saving asset at ${outputFilePath}`);

        const writeStream = fs.createWriteStream(outputFilePath);
        streamAsset.readStream.pipe(writeStream);
    } catch (err) {
        if (err instanceof SDKError || err instanceof ServiceUsageError || err instanceof ServiceApiError) {
            console.log("Exception encountered while executing operation", err);
        } else {
            console.log("Exception encountered while executing operation", err);
        }
    } finally {
        sourceFileReadStream?.destroy();
        sealImageReadStream?.destroy();
    }
})();

Python


# Initialize the logger
logging.basicConfig(level=logging.INFO)

class ElectronicSealWithAppearanceOptions:
    def __init__(self):
        try:
            pdf_file = open('./sampleInvoice.pdf', 'rb')
            file_input_stream = pdf_file.read()
            pdf_file.close()

            seal_image_file = open('./sampleSealImage.png', 'rb')
            seal_image_input_stream = seal_image_file.read()
            seal_image_file.close()

            # Initial setup, create credentials instance
            credentials = ServicePrincipalCredentials(
                client_id=os.getenv('PDF_SERVICES_CLIENT_ID'),
                client_secret=os.getenv('PDF_SERVICES_CLIENT_SECRET')
            )

            # Creates a PDF Services instance
            pdf_services = PDFServices(credentials=credentials)

            # Creates an asset(s) from source file(s) and upload
            asset = pdf_services.upload(input_stream=file_input_stream, mime_type=PDFServicesMediaType.PDF)
            seal_image_asset = pdf_services.upload(input_stream=seal_image_input_stream, mime_type=PDFServicesMediaType.PNG)

            # Create AppearanceOptions and add the required signature display items to it
            appearance_options: AppearanceOptions = AppearanceOptions()
            appearance_options.add_item(AppearanceItem.NAME)
            appearance_options.add_item(AppearanceItem.LABELS)
            appearance_options.add_item(AppearanceItem.DATE)
            appearance_options.add_item(AppearanceItem.SEAL_IMAGE)
            appearance_options.add_item(AppearanceItem.DISTINGUISHED_NAME)

            # Set the document level permission to be applied for output document
            document_level_permission = DocumentLevelPermission.FORM_FILLING

            # Sets the Seal Field Name to be created in input PDF document.
            seal_field_name = "Signature1"

            # Sets the page number in input document for applying seal.
            seal_page_number = 1

            # Sets if seal should be visible or invisible.
            seal_visible = True

            # Creates FieldLocation instance and set the coordinates for applying signature
            field_location = FieldLocation(150, 250, 350, 200)

            # Create FieldOptions instance with required details.
            field_options = FieldOptions(
                field_name=seal_field_name,
                field_location=field_location,
                page_number=seal_page_number,
                visible=seal_visible
            )

            # Sets the name of TSP Provider being used.
            provider_name = "<PROVIDER_NAME>"

            # Sets the access token to be used to access TSP provider hosted APIs.
            access_token = "<ACCESS_TOKEN>"

            # Sets the credential ID.
            credential_id = "<CREDENTIAL_ID>"

            # Sets the PIN generated while creating credentials.
            pin = "<PIN>"

            # Creates CSCAuthContext instance using access token and token type.
            csc_auth_context = CSCAuthContext(
                access_token=access_token,
                token_type="Bearer",
            )

            # Create CertificateCredentials instance with required certificate details.
            certificate_credentials = CSCCredentials(
                provider_name=provider_name,
                credential_id=credential_id,
                pin=pin,
                csc_auth_context=csc_auth_context,
            )

            # Create parameters for the job
            electronic_seal_params = PDFElectronicSealParams(
                seal_certificate_credentials=certificate_credentials,
                seal_appearance_options=appearance_options,
                seal_field_options=field_options,
                document_level_permissions=document_level_permission,
            )

            # Creates a new job instance
            electronic_seal_job = PDFElectronicSealJob(input_asset=asset,
                                                       electronic_seal_params=electronic_seal_params,
                                                       seal_image_asset=seal_image_asset)

            # Submit the job and gets the job result
            location = pdf_services.submit(electronic_seal_job)
            pdf_services_response = pdf_services.get_job_result(location, ESealPDFResult)

            # Get content from the resulting asset(s)
            result_asset: CloudAsset = pdf_services_response.get_result().get_asset()
            stream_asset: StreamAsset = pdf_services.get_content(result_asset)

            # Creates an output stream and copy stream asset's content to it
            output_file_path = 'output/ElectronicSeal.pdf'
            with open(output_file_path, "wb") as file:
                file.write(stream_asset.get_input_stream())

        except (ServiceApiException, ServiceUsageException, SdkException) as e:
            logging.exception(f'Exception encountered while executing operation: {e}')

if __name__ == "__main__":
    ElectronicSealWithAppearanceOptions()

REST API

curl --location --request POST 'https://pdf-services.adobe.io/operation/electronicseal' \
--header 'x-api-key: {{Placeholder for client_id}}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {{Placeholder for token}}' \
--data-raw '{
    "inputDocumentAssetID": "urn:aaid:AS:UE1:23c30ee0-2c4d-xxxx-xxxx-087832fca718",
    "sealImageAssetID": "urn:aaid:AS:UE1:23c30ee0-2e4d-xxxx-xxxx-087832fca718",
    "sealOptions": {
        "signatureFormat": "PKCS7",
        "documentLevelPermission": "FORM_FILLING",
        "cscCredentialOptions": {
            "credentialId": "<CREDENTIAL_ID>",
            "providerName": "<PROVIDER_NAME>",
            "authorizationContext": {
                "tokenType": "Bearer",
                "accessToken": "<ACCESS_TOKEN>"
            },
            "credentialAuthParameters": {
                "pin": "<PIN>"
            }
        },
        "sealFieldOptions": {
            "location": {
                "left": 150,
                "top": 250,
                "right": 350,
                "bottom": 200
            },
            "fieldName": "Signature1",
            "pageNumber": 1
        },
        "sealAppearanceOptions": {
            "displayOptions": [
                "NAME",
                "DATE",
                "DISTINGUISHED_NAME",
                "LABELS",
                "SEAL_IMAGE"
            ]
        }
    }
}'

Apply Electronic Seal with trusted timestamp on PDF

The sample below performs electronic seal operation with a trusted timestamp on given PDF.

Please refer to the API usage guide to understand how to use our APIs.

data-slots=heading, code

data-repeat=5

data-languages=Java, .NET, Node JS, Python, REST API

Java

// Get the samples from https://github.com/adobe/pdfservices-java-sdk-samples/tree/beta
// Run the sample:
// mvn -f pom.xml exec:java -Dexec.mainClass=com.adobe.pdfservices.operation.samples.electronicseal.ElectronicSealWithAppearanceOptions

package com.adobe.pdfservices.operation.samples.electronicseal;

public class ElectronicSealWithTimeStampAuthority {

    // Initialize the logger.
    private static final Logger LOGGER = LoggerFactory.getLogger(ElectronicSealWithTimeStampAuthority.class);

    public static void main(String[] args) {
        try (InputStream inputStream = Files.newInputStream(new File("src/main/resources/sampleInvoice.pdf").toPath());
             InputStream inputStreamSealImage = Files.newInputStream(new File("src/main/resources/sampleSealImage.png").toPath())) {

            // Initial setup, create credentials instance
            Credentials credentials = new ServicePrincipalCredentials(
                System.getenv("PDF_SERVICES_CLIENT_ID"),
                System.getenv("PDF_SERVICES_CLIENT_SECRET"));

            // Creates a PDF Services instance
            PDFServices pdfServices = new PDFServices(credentials);

            // Creates an asset(s) from source file(s) and upload
            Asset asset = pdfServices.upload(inputStream, PDFServicesMediaType.PDF.getMediaType());
            Asset sealImageAsset = pdfServices.upload(inputStreamSealImage, PDFServicesMediaType.PNG.getMediaType());

            // Set the document level permission to be applied for output document
            DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

            // Sets the Seal Field Name to be created in input PDF document.
            String sealFieldName = "Signature1";

            // Sets the page number in input document for applying seal.
            Integer sealPageNumber = 1;

            // Sets if seal should be visible or invisible.
            Boolean sealVisible = true;

            //Creates FieldLocation instance and set the coordinates for applying signature
            FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

            //Create FieldOptions instance with required details.
            FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                .setFieldLocation(fieldLocation)
                .setPageNumber(sealPageNumber)
                .setVisible(sealVisible)
                .build();

            // Sets the name of TSP Provider being used.
            String providerName = "<PROVIDER_NAME>";

            // Sets the access token to be used to access TSP provider hosted APIs.
            String accessToken = "<ACCESS_TOKEN>";

            // Sets the credential ID.
            String credentialID = "<CREDENTIAL_ID>";

            // Sets the PIN generated while creating credentials.
            String pin = "<PIN>";

            //Creates CSCAuthContext instance using access token and token type.
            CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

            //Create CertificateCredentials instance with required certificate details.
            CertificateCredentials certificateCredentials = CertificateCredentials.cscCredentialBuilder()
                .withProviderName(providerName)
                .withCredentialID(credentialID)
                .withPin(pin)
                .withCSCAuthContext(cscAuthContext)
                .build();

            //Create TSABasicAuthCredentials using username and password
            TSABasicAuthCredentials tsaBasicAuthCredentials = new TSABasicAuthCredentials("<USERNAME>", "<PASSWORD>");

            // Set the Time Stamp Authority Options using url and TSA Auth credentials
            TSAOptions tsaOptions = new RFC3161TSAOptions("<TIMESTAMP_URL>", tsaBasicAuthCredentials);

            // Create parameters for the job
            PDFElectronicSealParams pdfElectronicSealParams = PDFElectronicSealParams.pdfElectronicSealParamsBuilder(certificateCredentials, fieldOptions)
                .withDocumentLevelPermission(documentLevelPermission)
                .withTSAOptions(tsaOptions)
                .build();

            // Creates a new job instance
            PDFElectronicSealJob pdfElectronicSealJob = new PDFElectronicSealJob(asset, pdfElectronicSealParams);

            // Sets the optional input seal image for PDFElectronicSealOperation instance
            pdfElectronicSealJob.setSealImageAsset(sealImageAsset);

            // Submit the job and gets the job result
            String location = pdfServices.submit(pdfElectronicSealJob);
            PDFServicesResponse<PDFElectronicSealResult> pdfServicesResponse = pdfServices.getJobResult(location, PDFElectronicSealResult.class);

            // Get content from the resulting asset(s)
            Asset resultAsset = pdfServicesResponse.getResult().getAsset();
            StreamAsset streamAsset = pdfServices.getContent(resultAsset);

            // Creates an output stream and copy stream asset's content to it
            Files.createDirectories(Paths.get("output/"));
            OutputStream outputStream = Files.newOutputStream(new File("output/sealedOutput.pdf").toPath());
            LOGGER.info("Saving asset at output/sealedOutput.pdf");
            IOUtils.copy(streamAsset.getInputStream(), outputStream);
            outputStream.close();
        } catch (ServiceApiException | IOException | SDKException | ServiceUsageException ex) {
            LOGGER.error("Exception encountered while executing operation", ex);
        }
    }
}

.NET

// Get the samples from https://www.adobe.com/go/pdftoolsapi_net_samples
// Run the sample:
// cd ElectronicSealWithTimeStampAuthority/
// dotnet run ElectronicSealWithTimeStampAuthority.csproj

namespace ElectronicSealWithTimeStampAuthority
{
        class Program
    {
        // Initialize the logger.
        private static readonly ILog log = LogManager.GetLogger(typeof(Program));

        static void Main()
        {
            //Configure the logging
            ConfigureLogging();

            try
            {
                // Initial setup, create credentials instance
                ICredentials credentials = new ServicePrincipalCredentials(
                    Environment.GetEnvironmentVariable("PDF_SERVICES_CLIENT_ID"),
                    Environment.GetEnvironmentVariable("PDF_SERVICES_CLIENT_SECRET"));

                // Creates a PDF Services instance
                PDFServices pdfServices = new PDFServices(credentials);

                // Creates an asset(s) from source file(s) and upload
                using Stream inputStream = File.OpenRead(@"SampleInvoice.pdf");
                using Stream inputStreamSealImage = File.OpenRead(@"sampleSealImage.png");
                IAsset asset = pdfServices.Upload(inputStream, PDFServicesMediaType.PDF.GetMIMETypeValue());
                IAsset sealImageAsset =
                    pdfServices.Upload(inputStreamSealImage, PDFServicesMediaType.PNG.GetMIMETypeValue());

                // Set the document level permission to be applied for output document
                DocumentLevelPermission documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

                // Sets the Seal Field Name to be created in input PDF document.
                String sealFieldName = "Signature1";

                // Sets the page number in input document for applying seal.
                int sealPageNumber = 1;

                // Sets if seal should be visible or invisible.
                bool sealVisible = true;

                // Creates FieldLocation instance and set the coordinates for applying signature
                FieldLocation fieldLocation = new FieldLocation(150, 250, 350, 200);

                // Create FieldOptions instance with required details.
                FieldOptions fieldOptions = new FieldOptions.Builder(sealFieldName)
                    .SetVisible(sealVisible)
                    .SetFieldLocation(fieldLocation)
                    .SetPageNumber(sealPageNumber)
                    .Build();

                // Sets the name of TSP Provider being used.
                String providerName = "<PROVIDER_NAME>";

                // Sets the access token to be used to access TSP provider hosted APIs.
                String accessToken = "<ACCESS_TOKEN>";

                // Sets the credential ID.
                String credentialID = "<CREDENTIAL_ID>";

                // Sets the PIN generated while creating credentials.
                String pin = "<PIN>";

                // Creates CSCAuthContext instance using access token and token type.
                CSCAuthContext cscAuthContext = new CSCAuthContext(accessToken, "Bearer");

                // Create CertificateCredentials instance with required certificate details.
                CertificateCredentials certificateCredentials = CertificateCredentials.CSCCredentialBuilder()
                    .WithProviderName(providerName)
                    .WithCredentialID(credentialID)
                    .WithPin(pin)
                    .WithCSCAuthContext(cscAuthContext)
                    .Build();

                //Create TSABasicAuthCredentials using username and password
                TSABasicAuthCredentials tsaBasicAuthCredentials =
                    new TSABasicAuthCredentials("<USERNAME>", "<PASSWORD>");

                // Set the Time Stamp Authority Options using url and TSA Auth credentials
                TSAOptions tsaOptions = new RFC3161TSAOptions("<TIMESTAMP_URL>", tsaBasicAuthCredentials);

                // Create parameters for the job
                PDFElectronicSealParams pdfElectronicSealParams =
                    PDFElectronicSealParams.PDFElectronicSealParamsBuilder(certificateCredentials, fieldOptions)
                        .WithDocumentLevelPermission(documentLevelPermission)
                        .WithTSAOptions(tsaOptions)
                        .Build();

                // Creates a new job instance
                PDFElectronicSealJob pdfElectronicSealJob = new PDFElectronicSealJob(asset, pdfElectronicSealParams);
                pdfElectronicSealJob.SetSealImageAsset(sealImageAsset);

                // Submits the job and gets the job result
                String location = pdfServices.Submit(pdfElectronicSealJob);
                PDFServicesResponse<PDFElectronicSealResult> pdfServicesResponse =
                    pdfServices.GetJobResult<PDFElectronicSealResult>(location, typeof(PDFElectronicSealResult));

                // Get content from the resulting asset(s)
                IAsset resultAsset = pdfServicesResponse.Result.Asset;
                StreamAsset streamAsset = pdfServices.GetContent(resultAsset);

                // Creating output streams and copying stream asset's content to it
                String outputFilePath = "/output/sealedOutput.pdf";
                new FileInfo(Directory.GetCurrentDirectory() + outputFilePath).Directory.Create();
                Stream outputStream = File.OpenWrite(Directory.GetCurrentDirectory() + outputFilePath);
                streamAsset.Stream.CopyTo(outputStream);
                outputStream.Close();
            }
            catch (ServiceUsageException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (ServiceApiException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (SDKException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (IOException ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
            catch (Exception ex)
            {
                log.Error("Exception encountered while executing operation", ex);
            }
        }

        static void ConfigureLogging()
        {
            ILoggerRepository logRepository = LogManager.GetRepository(Assembly.GetEntryAssembly());
            XmlConfigurator.Configure(logRepository, new FileInfo("log4net.config"));
        }
    }
}

Node JS

// Get the samples from http://www.adobe.com/go/pdftoolsapi_node_sample
// Run the sample:
// node src/electronicseal/electronic-seal-with-stamp-authority.js

const {
    ServicePrincipalCredentials,
    PDFServices,
    MimeType,
    FieldLocation,
    FieldOptions,
    CSCAuthContext,
    CSCCredential,
    PDFElectronicSealParams,
    PDFElectronicSealJob,
    PDFElectronicSealResult,
    DocumentLevelPermission,
    TSABasicAuthCredentials,
    RFC3161TSAOptions,
    SDKError,
    ServiceUsageError,
    ServiceApiError,
} = require("@adobe/pdfservices-node-sdk");
const fs = require("fs");

(async () => {

    let sourceFileReadStream;
    let sealImageReadStream;
    try {
        // Initial setup, create credentials instance
        const credentials = new ServicePrincipalCredentials({
            clientId: process.env.PDF_SERVICES_CLIENT_ID,
            clientSecret: process.env.PDF_SERVICES_CLIENT_SECRET
        });

        // Creates a PDF Services instance
        const pdfServices = new PDFServices({credentials});

        // Creates an asset(s) from source file(s) and upload
        sourceFileReadStream = fs.createReadStream("./sampleInvoice.pdf")
        sealImageReadStream = fs.createReadStream("./sampleSealImage.png");
        const [sourceFileAsset, sealImageAsset] = await pdfServices.uploadAssets({
            streamAssets: [{
                readStream: sourceFileReadStream,
                mimeType: MimeType.PDF
            }, {
                readStream: sealImageReadStream,
                mimeType: MimeType.PNG
            }]
        });

        // Set the document level permission to be applied for output document
        const documentLevelPermission = DocumentLevelPermission.FORM_FILLING;

        // Set the Seal Field Name to be created in input PDF document
        const sealFieldName = "Signature1";

        // Set the page number in input document for applying seal
        const sealPageNumber = 1;

        // Set if seal should be visible or invisible
        const sealVisible = true;

        // Create FieldLocation instance and set the coordinates for applying signature
        const fieldLocation = new FieldLocation({
            left: 150,
            top: 250,
            right: 350,
            bottom: 200
        });

        // Create FieldOptions instance with required details
        const sealFieldOptions = new FieldOptions({
            visible: sealVisible,
            location: fieldLocation,
            fieldName: sealFieldName,
            pageNumber: sealPageNumber,
        });

        // Set the name of TSP Provider being used
        const providerName = "<PROVIDER_NAME>";

        // Set the access token to be used to access TSP provider hosted APIs
        const accessToken = "<ACCESS_TOKEN>";

        // Set the credential ID
        const credentialId = "<CREDENTIAL_ID>";

        // Set the PIN generated while creating credentials
        const pin = "<PIN>";

        // Create CSCAuthContext instance using access token and token type
        const authorizationContext = new CSCAuthContext({
            accessToken,
            tokenType: "Bearer"
        });

        // Create CertificateCredentials instance with required certificate details
        const certificateCredentials = new CSCCredential({
            providerName,
            credentialId,
            pin,
            authorizationContext,
        });

        // Create TSABasicAuthCredentials using username and password
        const tsaBasicAuthCredentials = new TSABasicAuthCredentials({
            username: "<USERNAME>",
            password: "<PASSWORD>"
        });

        // Set the Time Stamp Authority Options using url and TSA Auth credentials
        const tsaOptions = new RFC3161TSAOptions({
            url: "<TIMESTAMP_URL>",
            credentialAuthParameters: tsaBasicAuthCredentials
        });

        // Create parameters for the job
        const params = new PDFElectronicSealParams({
            documentLevelPermission,
            certificateCredentials,
            sealFieldOptions,
            tsaOptions
        });

        // Creates a new job instance
        const job = new PDFElectronicSealJob({
            inputAsset: sourceFileAsset,
            sealImageAsset,
            params,
        });

        // Submit the job and get the job result
        const pollingURL = await pdfServices.submit({job});
        const pdfServicesResponse = await pdfServices.getJobResult({
            pollingURL,
            resultType: PDFElectronicSealResult
        });

        // Get content from the resulting asset(s)
        const resultAsset = pdfServicesResponse.result.asset;
        const streamAsset = await pdfServices.getContent({asset: resultAsset});

        // Creates a write stream and copy stream asset's content to it
        const outputFilePath = "./sealedOutput.pdf";
        console.log(`Saving asset at ${outputFilePath}`);

        const writeStream = fs.createWriteStream(outputFilePath);
        streamAsset.readStream.pipe(writeStream);
    } catch (err) {
        if (err instanceof SDKError || err instanceof ServiceUsageError || err instanceof ServiceApiError) {
            console.log("Exception encountered while executing operation", err);
        } else {
            console.log("Exception encountered while executing operation", err);
        }
    } finally {
        sourceFileReadStream?.destroy();
        sealImageReadStream?.destroy();
    }
})();

Python

# Initialize the logger
logging.basicConfig(level=logging.INFO)

class ElectronicSealWithTimestampAuthority:
    def __init__(self):
        try:
            pdf_file = open('./sampleInvoice.pdf', 'rb')
            file_input_stream = pdf_file.read()
            pdf_file.close()

            seal_image_file = open('./sampleSealImage.png', 'rb')
            seal_image_input_stream = seal_image_file.read()
            seal_image_file.close()

            # Initial setup, create credentials instance
            credentials = ServicePrincipalCredentials(
                client_id=os.getenv('PDF_SERVICES_CLIENT_ID'),
                client_secret=os.getenv('PDF_SERVICES_CLIENT_SECRET')
            )

            # Creates a PDF Services instance
            pdf_services = PDFServices(credentials=credentials)

            # Creates an asset(s) from source file(s) and upload
            asset = pdf_services.upload(input_stream=file_input_stream, mime_type=PDFServicesMediaType.PDF)
            seal_image_asset = pdf_services.upload(input_stream=seal_image_input_stream, mime_type=PDFServicesMediaType.PNG)

            # Set the document level permission to be applied for output document
            document_level_permission = DocumentLevelPermission.FORM_FILLING

            # Sets the Seal Field Name to be created in input PDF document.
            seal_field_name = "Signature1"

            # Sets the page number in input document for applying seal.
            seal_page_number = 1

            # Sets if seal should be visible or invisible.
            seal_visible = True

            # Creates FieldLocation instance and set the coordinates for applying signature
            field_location = FieldLocation(150, 250, 350, 200)

            # Create FieldOptions instance with required details.
            field_options = FieldOptions(
                field_name=seal_field_name,
                field_location=field_location,
                page_number=seal_page_number,
                visible=seal_visible
            )

            # Sets the name of TSP Provider being used.
            provider_name = "<PROVIDER_NAME>"

            # Sets the access token to be used to access TSP provider hosted APIs.
            access_token = "<ACCESS_TOKEN>"

            # Sets the credential ID.
            credential_id = "<CREDENTIAL_ID>"

            # Sets the PIN generated while creating credentials.
            pin = "<PIN>"

            # Creates CSCAuthContext instance using access token and token type.
            csc_auth_context = CSCAuthContext(
                access_token=access_token,
                token_type="Bearer",
            )

            # Create CertificateCredentials instance with required certificate details.
            certificate_credentials = CSCCredentials(
                provider_name=provider_name,
                credential_id=credential_id,
                pin=pin,
                csc_auth_context=csc_auth_context,
            )

            # Create TSABasicAuthCredentials using username and password
            tsa_basic_auth_credentials: TSABasicAuthCredentials = TSABasicAuthCredentials(
                username="<USERNAME>",
                password="<PASSWORD>",
            )

            # Set the Time Stamp Authority Options using url and TSA Auth credentials
            tsa_options: RFC3161TSAOptions = RFC3161TSAOptions(
                url="<TIMESTAMP_URL>",
                tsa_basic_auth_credentials=tsa_basic_auth_credentials,
            )

            # Create parameters for the job
            electronic_seal_params = PDFElectronicSealParams(
                seal_certificate_credentials=certificate_credentials,
                seal_field_options=field_options,
                tsa_options=tsa_options,
                document_level_permissions=document_level_permission,
            )

            # Creates a new job instance
            electronic_seal_job = PDFElectronicSealJob(input_asset=asset,
                                                       electronic_seal_params=electronic_seal_params,
                                                       seal_image_asset=seal_image_asset)

            # Submit the job and gets the job result
            location = pdf_services.submit(electronic_seal_job)
            pdf_services_response = pdf_services.get_job_result(location, ESealPDFResult)

            # Get content from the resulting asset(s)
            result_asset: CloudAsset = pdf_services_response.get_result().get_asset()
            stream_asset: StreamAsset = pdf_services.get_content(result_asset)

            # Creates an output stream and copy stream asset's content to it
            output_file_path = 'output/ElectronicSeal.pdf'
            with open(output_file_path, "wb") as file:
                file.write(stream_asset.get_input_stream())

        except (ServiceApiException, ServiceUsageException, SdkException) as e:
            logging.exception(f'Exception encountered while executing operation: {e}')

if __name__ == "__main__":
    ElectronicSealWithTimestampAuthority()

REST API

curl --location --request POST 'https://pdf-services.adobe.io/operation/electronicseal' \
--header 'x-api-key: {{Placeholder for client_id}}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {{Placeholder for token}}' \
--data-raw '{
    "inputDocumentAssetID": "urn:aaid:AS:UE1:23c30ee0-2c4d-xxxx-xxxx-087832fca718",
    "sealImageAssetID": "urn:aaid:AS:UE1:23c30ee0-2e4d-xxxx-xxxx-087832fca718",
    "sealOptions": {
        "signatureFormat": "PKCS7",
        "documentLevelPermission": "FORM_FILLING",
        "cscCredentialOptions": {
            "credentialId": "<CREDENTIAL_ID>",
            "providerName": "<PROVIDER_NAME>",
            "authorizationContext": {
                "tokenType": "Bearer",
                "accessToken": "<ACCESS_TOKEN>"
            },
            "credentialAuthParameters": {
                "pin": "<PIN>"
            }
        },
        "tsaOptions": {
            "url" : "<TIMESTAMP_URL>",
            "credentialAuthParameters": {
                "username" : "<USERNAME>",
                "password" : "<PASSWORD>"
        },
        "sealFieldOptions": {
            "location": {
                "left": 150,
                "top": 250,
                "right": 350,
                "bottom": 200
            },
            "fieldName": "Signature1",
            "pageNumber": 1
        },
        "sealAppearanceOptions": {
            "displayOptions": [
                "NAME",
                "DATE",
                "DISTINGUISHED_NAME",
                "LABELS",
                "SEAL_IMAGE"
            ]
        }
    }
}'
