UXP Manifest v5

Manifest v5 gives developers access to a new plugin permissions model and WebViews in modal dialogs. Using the full manifest v5 feature set requires PS 23.3.0 or higher. (UXP 6.0 or higher)

Upgrade your plugin to use the latest manifest feature set by changing the manifestVersion element.

"manifestVersion": 5
Copied to your clipboard
"manifestVersion": 5

Example manifest#

{
    "manifestVersion": 5,
    "id": "YOUR_ID_HERE",
    "name": "Name of your plugin",
    "version": "1.0.0",
    "main": "index.html",
    "host": {
        "app": "PS",
        "minVersion": "23.3.0"
    },
    "entrypoints": [
        {
            "type": "command",
            "id": "commandFn",
            "label": {
                "default": "Show A Dialog"
            }
        },
        {
            "type": "panel",
            "id": "panelName",
            "label": {
                "default": "Panel Name"
            },
            "minimumSize": {"width": 230, "height": 200},
            "maximumSize": {"width": 2000, "height": 2000},
            "preferredDockedSize": {"width": 230, "height": 300},
            "preferredFloatingSize": {"width": 230, "height": 300},
            "icons": [
                {"width":23,"height":23,"path":"icons/dark.png","scale":[1,2],"theme":["darkest","dark","medium"]},
                {"width":23,"height":23,"path":"icons/light.png","scale":[1,2],"theme":["lightest","light"]}
            ]
        }
    ],
    "icons": [
        { "width": 23, "height": 23, "path": "icons/icon_D.png", "scale": [ 1, 2 ], "theme": [ "dark", "darkest" ], "species": [ "generic" ] },
        { "width": 23, "height": 23, "path": "icons/icon_N.png", "scale": [ 1, 2 ], "theme": [ "lightest", "light" ], "species": [ "generic" ] }
    ],
    "requiredPermissions": {
        "network": {
            "domains": [
                "https://adobe.com",
            ]
        },
        "clipboard": "readAndWrite",
        "webview": {
            "allow": "yes",
            "domains": [ "https://*.adobe.com", "https://*.google.com"]
        },
        "launchProcess": {
            "schemes":
                [ "https", "slack"],
            "extensions":
                [ ".xd", ".psd" ]
        },
    },
}
Copied to your clipboard
1{
2    "manifestVersion": 5,
3    "id": "YOUR_ID_HERE",
4    "name": "Name of your plugin",
5    "version": "1.0.0",
6    "main": "index.html",
7    "host": {
8        "app": "PS",
9        "minVersion": "23.3.0"
10    },
11    "entrypoints": [
12        {
13            "type": "command",
14            "id": "commandFn",
15            "label": {
16                "default": "Show A Dialog"
17            }
18        },
19        {
20            "type": "panel",
21            "id": "panelName",
22            "label": {
23                "default": "Panel Name"
24            },
25            "minimumSize": {"width": 230, "height": 200},
26            "maximumSize": {"width": 2000, "height": 2000},
27            "preferredDockedSize": {"width": 230, "height": 300},
28            "preferredFloatingSize": {"width": 230, "height": 300},
29            "icons": [
30                {"width":23,"height":23,"path":"icons/dark.png","scale":[1,2],"theme":["darkest","dark","medium"]},
31                {"width":23,"height":23,"path":"icons/light.png","scale":[1,2],"theme":["lightest","light"]}
32            ]
33        }
34    ],
35    "icons": [
36        { "width": 23, "height": 23, "path": "icons/icon_D.png", "scale": [ 1, 2 ], "theme": [ "dark", "darkest" ], "species": [ "generic" ] },
37        { "width": 23, "height": 23, "path": "icons/icon_N.png", "scale": [ 1, 2 ], "theme": [ "lightest", "light" ], "species": [ "generic" ] }
38    ],
39    "requiredPermissions": {
40        "network": {
41            "domains": [
42                "https://adobe.com",
43            ]
44        },
45        "clipboard": "readAndWrite",
46        "webview": {
47            "allow": "yes",
48            "domains": [ "https://*.adobe.com", "https://*.google.com"]
49        },
50        "launchProcess": {
51            "schemes":
52                [ "https", "slack"],
53            "extensions":
54                [ ".xd", ".psd" ]
55        },
56    },
57}

Changes to top-level metadata#

Starting from changes to top-level metadata, here are some keys that changed with the v5 upgrade. Read manifest v4 to learn more about each key/value field.

Key path	Type	Description	Change
`version`	string	Version number of your plugin in `x.y.z` format.	Plugins can specify semver format with no warnings. Specify at least one number and the minor and/or patch will be autofilled with zeroes.
`requiredPermissions`	object	Declare plugin permissions.	New in v5.
`entrypoints`	`EntryPointDefinition[]`	Describes the entries your plugin adds to the Plugins menu and plugin panel.	v5 changes in next section.

Changes to entry points#

The changes to entryPoints add flexibility in specifying the initial view/location of plugin panels.

Key	Type	Description	Change
`id`	string	Unique identifier for the entry point. This `id` will also be mapped to entrypoints defined in your plugin code.	Passed as the id for the uxpcommand, uxpshowpanel, and uxphidepanel
`title`	string	Title for the plugin. Defaults to plugin's name if none is specified	New in v5.

Plugin Permissions#

Plugins using Manifest v5 will enjoy the enhancements in security with the introduction of new permissions model. Users will be asked for their consent when your plugin attempts to use openExternal, openPath, and sp-link/anchor tags. For everything else, consent is given at install time.

Starting with v5, any permissions not explicitly declared in the manifest are not granted by default.

Network#

In order for our plugin to use the network, you must define domains that your plugin will access. You can do this by adding the network object to the requiredPermissions section of the manifest.

{
    "requiredPermissions": {
        "network": {
            "domains": [
                "https://source.unsplash.com",
            ]
        }
    }
}
Copied to your clipboard
1{
2    "requiredPermissions": {
3        "network": {
4            "domains": [
5                "https://source.unsplash.com",
6            ]
7        }
8    }
9}

<img src='https://source.unsplash.com/random'>
Copied to your clipboard
<img src='https://source.unsplash.com/random'>

Clipboard#

To grant read and/or write access to the system clipboard, declare it in requiredPermissions. clipboard accepts:

readAndWrite for read/write access
read for read-only access.

{
    "requiredPermissions": {
        "clipboard": "readAndWrite"
    }
}
Copied to your clipboard
1{
2    "requiredPermissions": {
3        "clipboard": "readAndWrite"
4    }
5}

const clipboard = navigator.clipboard;
const dataTransferProviders = {
    'text/plain': 'Sample text'
};
clipboard.writeText(dataTransferProviders).then(
    (result) => {...},
    (error) => {...}
);
Copied to your clipboard
1const clipboard = navigator.clipboard;
2const dataTransferProviders = {
3    'text/plain': 'Sample text'
4};
5clipboard.writeText(dataTransferProviders).then(
6    (result) => {...},
7    (error) => {...}
8);

Local Filesystem#

localFileSystem accepts:

request: Allows the plugin to access files on the local file system. For files outside of the plugin's data, temporary, and code folders, the user will be prompted for consent.
plugin: Allows the plugin to access the plugin's sandbox, but does not enable file picker APIs.

{
    "requiredPermissions": {
        "localFileSystem": "request"
    }
}
Copied to your clipboard
1{
2    "requiredPermissions": {
3        "localFileSystem": "request"
4    }
5}

const fs = require('uxp').storage.localFileSystem;
const file = await fs.getFileForSaving('manifest_demo.txt');
await file.write('Manifest v5 demo');
Copied to your clipboard
1const fs = require('uxp').storage.localFileSystem;
2const file = await fs.getFileForSaving('manifest_demo.txt');
3await file.write('Manifest v5 demo');

If plugin is not specified for plugin storage, the manifest will default to that setting.

Launch Process#

The launchProcess permission in the manifest controls the ability to launch applications and open files in other applications.

With manifest v5, the launchProcess permission must be declared to use openExternal or openPath.

"permissions": {
    "launchProcess": {
        // allows launching files with specified URI schemes
        "schemes":
            [ "https", "slack", "adbxd" ],
        // allows opening files with the specified file extensions
        "extensions":
            [ ".pdf", ".xd", ".psd" ],
    },
}
Copied to your clipboard
1"permissions": {
2    "launchProcess": {
3        // allows launching files with specified URI schemes
4        "schemes":
5            [ "https", "slack", "adbxd" ],
6        // allows opening files with the specified file extensions
7        "extensions":
8            [ ".pdf", ".xd", ".psd" ],
9    },
10}

Both openPath and openExternal rely on this permission set, and upon either function call, the user will get a runtime consent dialog. Only after they agree will the API call execute.

Plugin communication#

If enabled, the plugin can communicate with other installed plugins. Defaults to false.

"permissions": {
    "ipc": {
        "enablePluginCommunication": true
    }
}
Copied to your clipboard
1"permissions": {
2    "ipc": {
3        "enablePluginCommunication": true
4    }
5}

const { pluginManager } = require("uxp");
// find the Alchemist plugin in the loaded plugins
const alchemistPlugin = Array.from(pluginManager.plugins).find(plugin => plugin.id==="2bcdb900");
//What commands and panels are available?
const alchemistCommands = Array.from(alchemistPlugin.manifest.commands, command => command.commandId); // result: ["resetStateFn"]
const alchemistPanels = Array.from(alchemistPlugin.manifest.panels, command => command.panelId); // result: ["inspector"]
// Show the inspector panel; note that panels can only be made visible -- you can't ask to hide the panel
alchemistPlugin.showPanel("inspector");
// Reset Alchemists state... but be sure you want to do this!
alchemistPlugin.invokeCommand("resetStateFn");
Copied to your clipboard
1const { pluginManager } = require("uxp");
2// find the Alchemist plugin in the loaded plugins
3const alchemistPlugin = Array.from(pluginManager.plugins).find(plugin => plugin.id==="2bcdb900");
4//What commands and panels are available?
5const alchemistCommands = Array.from(alchemistPlugin.manifest.commands, command => command.commandId); // result: ["resetStateFn"]
6const alchemistPanels = Array.from(alchemistPlugin.manifest.panels, command => command.panelId); // result: ["inspector"]
7// Show the inspector panel; note that panels can only be made visible -- you can't ask to hide the panel
8alchemistPlugin.showPanel("inspector");
9// Reset Alchemists state... but be sure you want to do this!
10alchemistPlugin.invokeCommand("resetStateFn");

WebViews#

WebViews are available with UXP 6.0, and need to be configured in your plugin's manifest (v5 required).

In your manifest.json:

{
    "manifestVersion": 5,
    "requiredPermissions": {
        "webview": {
            "allow": "yes",
            // domains --> string[] | "all"
            "domains": [ "https://*.adobe.com", "https://*.google.com"],
        }
    }
}
Copied to your clipboard
1{
2    "manifestVersion": 5,
3    "requiredPermissions": {
4        "webview": {
5            "allow": "yes",
6            // domains --> string[] | "all"
7            "domains": [ "https://*.adobe.com", "https://*.google.com"],
8        }
9    }
10}

Then in your plugin's code:

<dialog>
    <webview id="webview" width="100%" height="360px" src="https://www.adobe.com"></webview>
</dialog>
Copied to your clipboard
1<dialog>
2    <webview id="webview" width="100%" height="360px" src="https://www.adobe.com"></webview>
3</dialog>

document.querySelector("dialog").showModal();
Copied to your clipboard
document.querySelector("dialog").showModal();

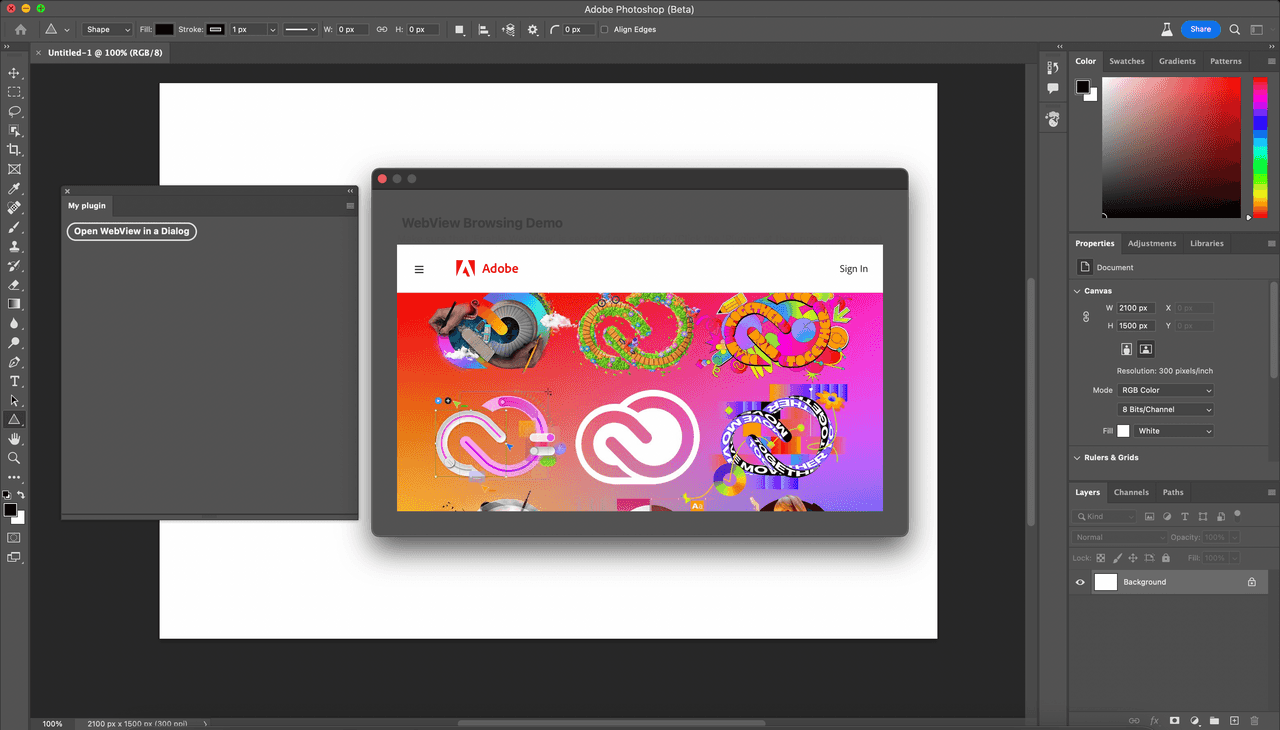

Webview

Limitations#

WebViews are available within modal dialogs only for now.
