Edit text

The Edit Text endpoint allows you to modify text layers within Photoshop files (PSD files).

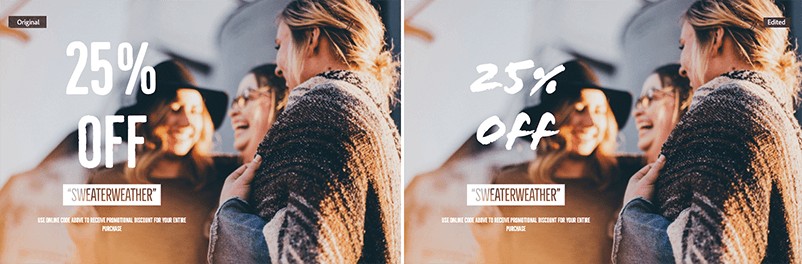

In these example images, we've altered the font on the original image (on the left) using the Text API:

alt image

The Edit Text endpoint supports editing one or more text layers within a PSD. Users can:

Format text properties such as anti-alias, orientation and edit text contents. Only changing the text properties won't change styling.
Edit the text contents.
Edit font size.
Edit the text orientation (horizontal/vertical).
Add text treatments like strike-through, underline, and capitalization.

Use custom fonts, specified in the API request body.
Change the font.
Change the font color to RGB, CMYK, grayscale, or lab.
Edit the paragraph alignment, such as left, center, right, justify, justify left, justify center, and justify right.
Format line and character spacing through leading, tracking, and autoKern settings.

Known limitations

The API can't automatically detect missing fonts in the layers. To prevent potentially missing fonts from being replaced, provide an href to the font in options.fonts. For more details on specifying custom fonts, see the Font handling section.
Ensure that the input file is a PSD and that it contains one or more text layers.
Some text attributes (for example, tracking, leading, and kerning) don't retain their original values.

Font handling

To correctly operate on text layers, the fonts needed for those layers need to be available when processing the PSD.

Reference fonts in the API request using the correct Postscript name for that font. Using any other name causes the API to treat this as a missing font.

To use a custom font you must include an href to the font in the API request inputs, in this format: <font_postscript_name>.<ext>.

Example

{
  "storage": "external",
  "href": "<STORAGE_URL_TO_OPEN_SANS_CONDENSED_LIGHT_TTF>"
}
Copied to your clipboard
{
  "storage": "external",
  "href": "<STORAGE_URL_TO_OPEN_SANS_CONDENSED_LIGHT_TTF>"
}

Handling missing fonts

Use the manageMissingFonts field in the options of the request to specify how to handle missing fonts. There are two accepted values:

fail to force the request/job to fail.
useDefault to use the system designated default font: ArialMT.

Or specify a global font in the globalFont field in the options section of the request, which would act as a default font for the current request.

NOTE

With an OAuth integration, Adobe Fonts can be used as a global font as well. If the global font is a custom font, upload it to a supported cloud storage type and specify the href and storage type in the options.fonts section of the request.

Supported fonts

The supported Postscript fonts are:


AcuminVariableConcept
AdobeArabic-Bold
AdobeArabic-BoldItalic
AdobeArabic-Italic
AdobeArabic-Regular
AdobeDevanagari-Bold
AdobeDevanagari-BoldItalic
AdobeDevanagari-Italic
AdobeDevanagari-Regular
AdobeFanHeitiStd-Bold
AdobeGothicStd-Bold
AdobeGurmukhi-Bold
AdobeGurmukhi-Regular
AdobeHebrew-Bold
AdobeHebrew-BoldItalic
AdobeHebrew-Italic
AdobeHebrew-Regular
AdobeHeitiStd-Regular
AdobeMingStd-Light
AdobeMyungjoStd-Medium
AdobePiStd
AdobeSongStd-Light
AdobeThai-Bold
AdobeThai-BoldItalic
AdobeThai-Italic
AdobeThai-Regular
CourierStd
CourierStd-Bold
CourierStd-BoldOblique
CourierStd-Oblique
EmojiOneColor
KozGoPr6N-Bold
KozGoPr6N-Medium
KozGoPr6N-Regular
KozMinPr6N-Regular
MinionPro-Regular
MinionVariableConcept-Italic
MinionVariableConcept-Roman
MyriadArabic-Bold
MyriadArabic-BoldIt
MyriadArabic-It
MyriadArabic-Regular
MyriadHebrew-Bold
MyriadHebrew-BoldIt
MyriadHebrew-It
MyriadHebrew-Regular
MyriadPro-Bold
MyriadPro-BoldIt
MyriadPro-It
MyriadPro-Regular
MyriadVariableConcept-Italic
MyriadVariableConcept-Roman
NotoSansKhmer-Regular
NotoSansLao-Regular
NotoSansMyanmar-Regular
NotoSansSinhala-Regular
SourceCodeVariable-Italic
SourceCodeVariable-Roman
SourceSansVariable-Italic
SourceSansVariable-Roman
SourceSerifVariable-Roman
TrajanColor-Concept

Implementation examples

Making a text layer edit

This code sample makes a text layer edit:

curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs":[
    {
      "href":"<SIGNED_GET_URL>",
      "storage":"<storage>"
    }
  ],
  "options":{
    "layers":[
      {
        "name": "My Text Layer",
        "text": {
            "content": "CHANGED TO NEW TEXT",
            "orientation": "horizontal",
            "characterStyles": [{
                "size": 15,
                "orientation": "horizontal",
                "color": {
                    "red":255,
                    "green":0,
                    "blue":0
                }
            }],
            "paragraphStyles": [{
              "alignment": "right"
            }]
        }
      }
    ]
  },
  "outputs":[
    {
      "href":"<SIGNED_POST_URL>",
      "storage":"<storage>",
      "type":"vnd.adobe.photoshop"
    }
  ]
}'
Copied to your clipboard
curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs":[
    {
      "href":"<SIGNED_GET_URL>",
      "storage":"<storage>"
    }
  ],
  "options":{
    "layers":[
      {
        "name": "My Text Layer",
        "text": {
            "content": "CHANGED TO NEW TEXT",
            "orientation": "horizontal",
            "characterStyles": [{
                "size": 15,
                "orientation": "horizontal",
                "color": {
                    "red":255,
                    "green":0,
                    "blue":0
                }
            }],
            "paragraphStyles": [{
              "alignment": "right"
            }]
        }
      }
    ]
  },
  "outputs":[
    {
      "href":"<SIGNED_POST_URL>",
      "storage":"<storage>",
      "type":"vnd.adobe.photoshop"
    }
  ]
}'

Editing two text layers

This example applies edits to two text layers:

curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs": [
    {
      "href": "<SIGNED_GET_URL>",
      "storage": "<storage>"
    }
  ],
  "options": {
    "fonts": [
      {
        "storage": "<storage>",
        "href": "<SIGNED_GET_URL>"
      }
    ],
    "layers": [
      {
        "name": "<name_of_text_layer_1_to_edit>",
        "text": {
            "orientation": "horizontal",
            "contents": "New text Contents 1",
            "antiAlias": "antiAliasSharp",
            "characterStyles": [{
              "autoKern": "metricsKern",
              "fontPostScriptName": "<font_postscript_name>",
              "fontCaps": "allCaps",
              "size": 25,
              "leading": 20,
              "tracking": 20,
              "syntheticBold": true,
              "ligature": true,
              "syntheticItalic": true,
              "color": {
                "blue": 100,
                "green": 200,
                "red": 163
              }
            }],
            "paragraphStyles": [{
              "align": "right"
            }]
        }
      },
      {
        "name": "<name_of_text_layer_2_to_edit>",
        "text": {
          "contents": "New text Contents 2",
          "characterStyles": [{
              "size": 45,
              "stylisticAlternates": true,
              "leading": 100,
              "tracking": 100,
              "baseline": "subScript",
              "strikethrough": true,
              "underline": true,
              "verticalScale": 150,
              "horizontalScale": 200,
              "color": {
                "blue": 300,
                "green": 100,
                "red": 63
              }
            }]
        }
      }
    ]
  },
  "outputs": [
    {
      "href": "<SIGNED_POST_URL>",
      "type": "vnd.adobe.photoshop",
      "storage": "<storage>"
    }
  ]
}'
Copied to your clipboard
curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs": [
    {
      "href": "<SIGNED_GET_URL>",
      "storage": "<storage>"
    }
  ],
  "options": {
    "fonts": [
      {
        "storage": "<storage>",
        "href": "<SIGNED_GET_URL>"
      }
    ],
    "layers": [
      {
        "name": "<name_of_text_layer_1_to_edit>",
        "text": {
            "orientation": "horizontal",
            "contents": "New text Contents 1",
            "antiAlias": "antiAliasSharp",
            "characterStyles": [{
              "autoKern": "metricsKern",
              "fontPostScriptName": "<font_postscript_name>",
              "fontCaps": "allCaps",
              "size": 25,
              "leading": 20,
              "tracking": 20,
              "syntheticBold": true,
              "ligature": true,
              "syntheticItalic": true,
              "color": {
                "blue": 100,
                "green": 200,
                "red": 163
              }
            }],
            "paragraphStyles": [{
              "align": "right"
            }]
        }
      },
      {
        "name": "<name_of_text_layer_2_to_edit>",
        "text": {
          "contents": "New text Contents 2",
          "characterStyles": [{
              "size": 45,
              "stylisticAlternates": true,
              "leading": 100,
              "tracking": 100,
              "baseline": "subScript",
              "strikethrough": true,
              "underline": true,
              "verticalScale": 150,
              "horizontalScale": 200,
              "color": {
                "blue": 300,
                "green": 100,
                "red": 63
              }
            }]
        }
      }
    ]
  },
  "outputs": [
    {
      "href": "<SIGNED_POST_URL>",
      "type": "vnd.adobe.photoshop",
      "storage": "<storage>"
    }
  ]
}'

Changing the font in a text layer

This example changes the font in a text layer named My Text Layer to a custom font VeganStylePersonalUse. The value for the fontName field in the text.characterStyles section is the full Postscript name of the custom font:

curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs":[
    {
      "href":"<SIGNED_GET_URL>",
      "storage":"<storage>"
    }
  ],
  "options":{
    "fonts": [
      {
        "storage": "<storage>",
        "href": "<SIGNED_GET_URL_TO_VeganStylePersonalUse.ttf>"
      }
    ],
    "layers":[
      {
        "name": "My Text Layer",
        "text": {
            "content": "CHANGED TO NEW TEXT",
            "orientation": "horizontal",
            "characterStyles": [{
                "size": 15,
                "orientation": "horizontal",
                "color": {
                    "red":255,
                    "green":0,
                    "blue":0
                }
            }],
            "paragraphStyles": [{
              "alignment": "right"
            }]
        }
      }
    ]
  },
  "outputs":[
    {
      "href":"<SIGNED_POST_URL>",
      "storage":"<storage>",
      "type":"vnd.adobe.photoshop"
    }
  ]
}'
Copied to your clipboard
curl -X POST \
  https://image.adobe.io/pie/psdService/text \
  -H "Authorization: Bearer $token"  \
  -H "x-api-key: $apiKey" \
  -H "Content-Type: application/json" \
  -d '{
  "inputs":[
    {
      "href":"<SIGNED_GET_URL>",
      "storage":"<storage>"
    }
  ],
  "options":{
    "fonts": [
      {
        "storage": "<storage>",
        "href": "<SIGNED_GET_URL_TO_VeganStylePersonalUse.ttf>"
      }
    ],
    "layers":[
      {
        "name": "My Text Layer",
        "text": {
            "content": "CHANGED TO NEW TEXT",
            "orientation": "horizontal",
            "characterStyles": [{
                "size": 15,
                "orientation": "horizontal",
                "color": {
                    "red":255,
                    "green":0,
                    "blue":0
                }
            }],
            "paragraphStyles": [{
              "alignment": "right"
            }]
        }
      }
    ]
  },
  "outputs":[
    {
      "href":"<SIGNED_POST_URL>",
      "storage":"<storage>",
      "type":"vnd.adobe.photoshop"
    }
  ]
}'
