Building your first add-on with the Document API

This tutorial will guide you through the creation of your first Adobe Express add-on based on the Adobe Express Document API.

Introduction

Hello, and welcome to this Adobe Express Document API tutorial, where we'll build together a fully functional Grid System add-on from scratch. Grid systems are widely used in the design world to bring structure and consistency to all visual content, from flyers to web pages or social media posts.

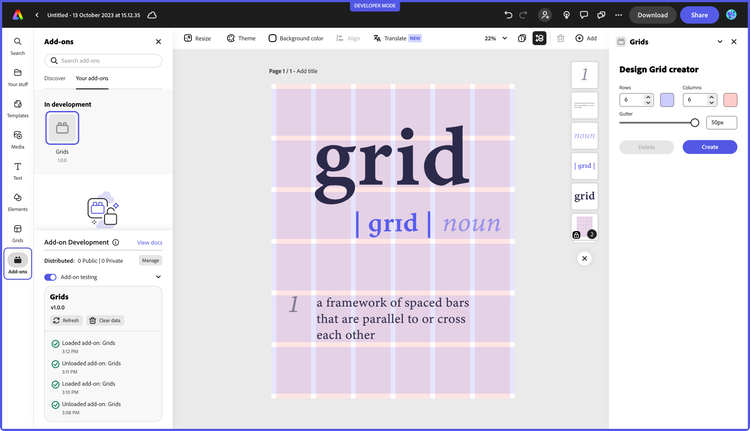

grids addon

Your add-on will allow users to create a variable number of rows and columns, control the spacing between them (known as the gutter), and apply color overlays.

Changelog

This tutorial has been written by Davide Barranca, software developer and author from Italy; revision history as follows.

January 9th, 2024

  • Added additional information on the project's setup.
  • Renamed createStroke() to makeStroke(): according to the new naming convention, make* is used for plain objects and helper utilities, whereas create* is reserved to live document objects, e.g., createEllipse().
  • Improved explanations for importing Spectrum Web Components.

December 3rd, 2023

  • Removed the experimental warning from the document model sandbox APIs.
  • Importing colorUtils instead of utils from "express-document-sdk"; the built-in colorUtils.fromHex() method replaces the custom hexToColor().
  • In the new API, nodes don't have the fills property (and it's append() method) anymore; instead, they use fill, to which a ColorFill is assigned.

November 29th, 2023

  • apiProxy() now accepts "documentSandbox" as a parameter, instead of "script".
  • manifest.json now accepts "documentSandbox" in lieu of the "script" property for the document sandbox entry point. This requires the "@adobe/ccweb-add-on-scripts" dependency to be updated to version "^1.1.0" or newer in the package.json file.
  • addOnSandboxSdk is now imported from "add-on-sdk-document-sandbox" (it used to be "AddOnScriptSdk").
  • editor and other modules are now imported from "express-document-sdk" (it used to be "express").
  • The webpack.config.js file has been updated to reflect the new imports (see the externals object) in both the express-grids-addon and express-addon-document-api-template projects.
  • Constants are now constants (lowercase), and their enumerations have changed (e.g., BlendModeValue is now BlendMode).
  • translateX and translateY have conflated in the new translation property.
  • The group's warning about the operations order (create, append, fill) has been removed; groups can now be created, filled and appended.

November 21st, 2023

  • Editor API are now called the Document API, which are part of the Document Model Sandbox.
  • Update the add-on folders to reflect the new naming convention (script is now documentSandbox).
  • Update Reference Documentation links and screenshots.

November 6th, 2023

  • First publication.

Prerequisites

  • Familiarity with HTML, CSS, JavaScript.
  • Familiarity with the Adobe Express add-ons environment; if you need a refresher, follow the quickstart guide.
  • An Adobe Express account; use your existing Adobe ID or create one for free.
  • Node.js version 16 or newer.

Topics Covered

Getting Started with the Document API

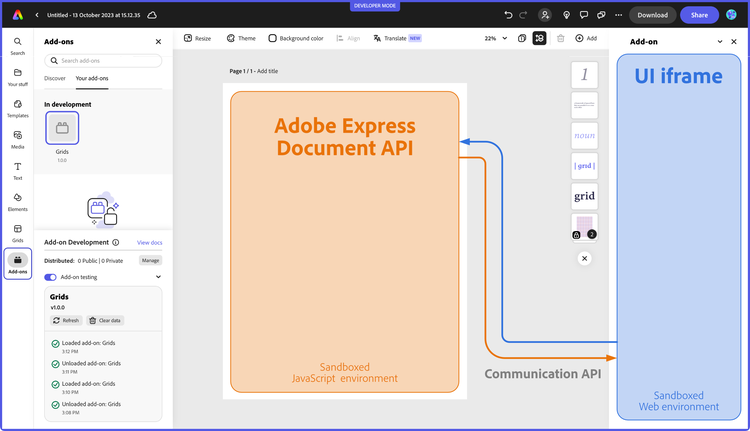

As part of the Document Model Sandbox, the Adobe Express Document API (from now on, Document API) is a powerful tool that extends the capabilities of Adobe Express add-ons, offering direct interaction with the open document. Let's take a moment to review the difference between the two core components of the architecture of an add-on.

  • The iframe hosts the add-on User Interface and runs its internal logic. You can think about it as a web application operating in a sandboxed environment: it needs to be separate from the rest of the Adobe Express content for security reasons, which is precisely why the add-on is hosted within an <iframe> element (a detailed technical description is found here). If you come from a CEP/UXP background, it's akin to developing the panel of an extension or plugin.
  • The Document Model Sandbox: allows you to operate on the document. It's a sandboxed JavaScript environment that communicates with the iframe (thanks to the Communication API), providing access to the Document API. Drawing the parallel with CEP and UXP again, it represents scripting; that is, the possibility to drive Adobe Express programmatically and, for example, add pages or artboards, create new shapes, rotate or group them, etc.

This is a high-level overview of the overall structure; while the implementation has more technical nuances, there's no need to dive deeper now.

grids addon communication

The Project Structure

The complete code for the Grids System add-on can be found here: it is provided as a complete project, although it would be best if you followed along from this starting point, which sets up a JavaScript/Webpack environment with everything needed.1

You can either clone the entire repository:

Copied to your clipboard
git clone https://github.com/AdobeDocs/express-add-on-samples.git

Or download it as a .zip file (click the green "Code" button and then "Download ZIP").

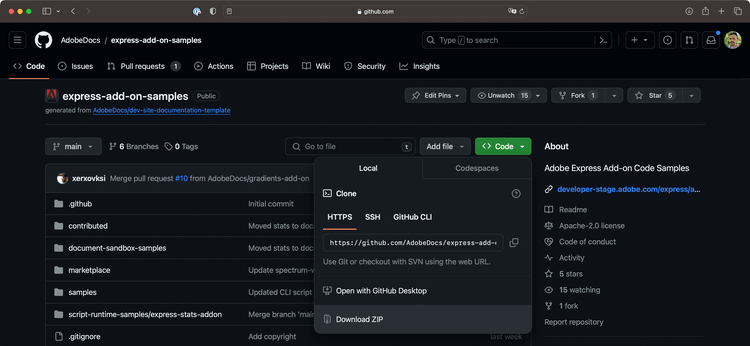

grids addon git

Then cd in the project folder (either the grids-design-start or grids-design-end one) and run the following commands:

Copied to your clipboard
cd express-add-on-samples/document-sandbox-samples/express-grids-addon/grids-design-end
npm install
npm run build
npm run start

This will install the required dependencies, build the project, and then serve it locally on port 5241; if you need more clarification about how to load an add-on in Adobe Express, please refer to the quickstart guide for a step-by-step walkthrough.

Before jumping into the code, let's look at how the project is structured. At the time of this writing, the CLI provides a few templates, but Only ReactJS-based ones include the Document Sandbox while also having a Webpack configuration, which is preferable when using Spectrum Web Components (SWC). This project provides support for both of them.

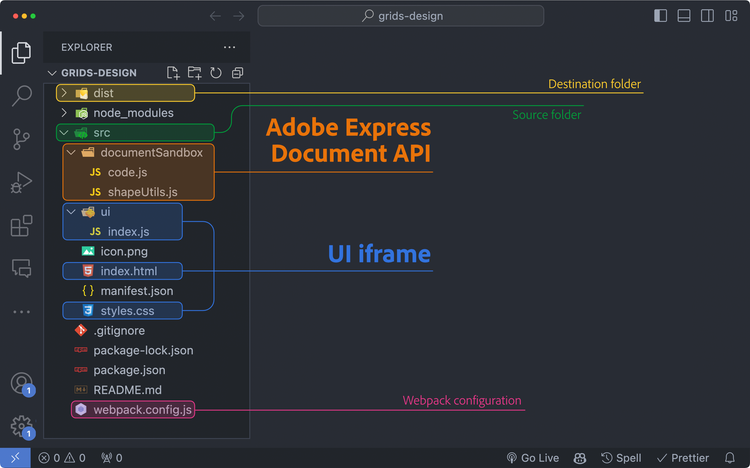

grids addon folder structure

As usual, we'll work in the src folder while Webpack outputs the result in dist. The add-on entry point is index.html, which relies on ui/index.js for the iframe logic code (UI element handlers, etc.). The Document API entry point is instead documentSandbox/code.js, as defined in the manifest.json:

Copied to your clipboard
{
// ...
"entryPoints": [
{
"type": "panel",
"id": "panel1",
"main": "index.html",
"documentSandbox": "code.js" // 👈 here
}
]
}

If you're wondering about documentSandbox/shapeUtils.js, it is an auxiliary file containing private code consumed by code.js that doesn't need to be exposed to the iframe in this specific project. The code of the blank template is as follows.

Copied to your clipboard
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="description" content="Adobe Express Add-on tutorial using JavaScript and the Document Sandbox" />
<meta name="keywords" content="Adobe, Express, Add-On, JavaScript, Document Sandbox, Document API" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Grids add-on</title>
<link rel="stylesheet" href="styles.css" />
</head>
<body>
<sp-theme scale="medium" color="light" theme="express">
<sp-button id="createShape">Create shape</sp-button>
</sp-theme>
</body>
</html>

The index.html contains a <sp-theme> wrapper, whose role is explained here, and just a button. There's already something going on in index.js and code.js instead, which we must understand.

The Communication API

A crucial component of any add-on that consumes the Document API is the communication bridge with the iframe. As we've seen earlier, it's precisely the role of the Communication API.

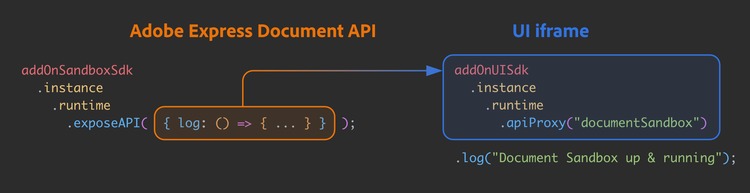

The mechanism is straightforward: through the runtime object (code.js, line 2), you can invoke the exposeApi() method, which grants the iframe access to the object literal that is passed as a parameter. The iframe must get to the runtime, too, and use its apiProxy() method passing "documentSandbox". This asynchronous call results in the same object whose log() can now be invoked.

Add-on Communication API

It would not be uncommon to define an object literal first and pass it to the exposeAPI later.

It's also possible to expose iframe methods to the Document Sandbox, i.e., using apiProxy() passing "panel", but it's outside the scope of this tutorial—please refer to this sample to see it in action.

The Document API

Using the Reference Documentation

The Document API is rapidly expanding: to keep track of its progress, you must get accustomed to consulting the Reference Documentation.

Add-on Communication API

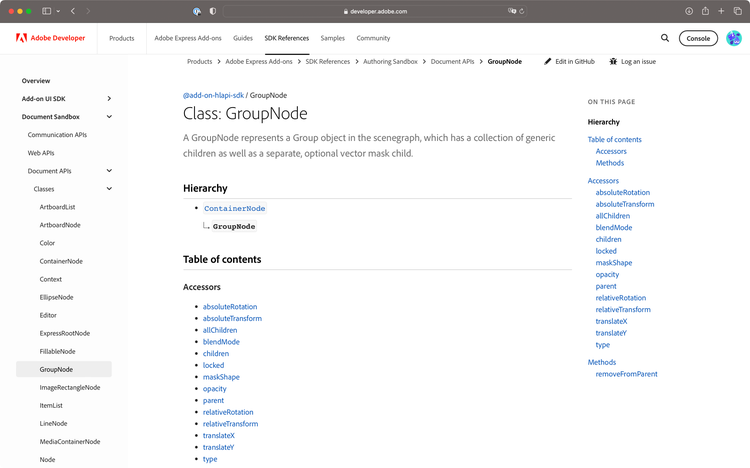

In the left-navbar, you can browse through all the Classes (which Adobe Express elements are instantiated from), Interfaces and constants. It's a hierarchical representation of the Document API data structures: for instance, you can see that a RectangleNode is a subclass of the FillableNode, which in turn subclasses the StrokableNode, which eventually is just a particular kind of Node—the base class.

Some properties are shared among the RectangleNode and, say, other StrokableNode subclasses such as the EllipseNode: for instance, the opacity, or blendMode. Other ones are unique, like the topLeftRadius, which, in the context of an EllipseNode, wouldn't make sense.

Creating the first Shape

It's finally time to start laying down some elements. Let's hook the only iframe button currently available to a function exposed by the Document API. Type the following into the source files (index.html, index.js, and code.js have been edited), then run the add-on.

Copied to your clipboard
<body>
<sp-theme scale="medium" color="light" theme="express">
<sp-button id="createShape" disabled>Create shape</sp-button>
</sp-theme>
</body>

Please note that it's considered good practice to initially disable all interactive elements that need to communicate with the Document API. In this case, there's only one CTA (Call To Action) <sp-button>, but generally any other elements that can make changes to the document should be treated similarly. You should enable them only when the addOnUISdk and addOnSandboxSdk are initialized, and event listeners are properly set (see index.js line 13).

The createShapeButton invokes the createShape() method defined and exposed in code.js (lines 7-19), passing an option object with arbitrary width and height properties. The function reveals key insights about the Document API—let's have a deeper look at the code.

According to the Reference, createRectangle() is a method of the Editor class, which must be imported from "express-document-sdk" with the following statement.

Copied to your clipboard
import { editor, colorUtils, constants } from "express-document-sdk";

We'll also make use of colorUtils and constants—they are named imports from "express-document-sdk", too. The createRectangle() function doesn't need any parameter, either required or optional; hence, the properties of this new element must be set after its creation.

Copied to your clipboard
const rect = editor.createRectangle();
rect.width = width;
rect.height = height;
rect.translation = { x: 50, y: 50 };

Dimensions and positions are straightforward while assigning a fill color is a two-step process.

Copied to your clipboard
const col = colorUtils.fromRGB(0.9, 0.5, 0.9);
const fillColor = editor.makeColorFill(col);
rect.fill = fillColor;

First, you make use of the fromRGB() method from the colorUtils class, which expects four parameters in the (0..1) range: R, G, B and an optional Alpha, and returns a Color instance. Then, you use such color to create either a fill or stroke—here, we're using makeColorFill(). Finally, you set it to the shape by assigning it to the fill property.

The rect object now exists as a RectangleNode instance with a width of 200 pixels, a height of 100, the top-left corner at the coordinate (50, 50) and a pastel pink fill color. But it still needs to be rendered on the page!

Copied to your clipboard
// appending the rect object to the scene
editor.context.insertionParent.children.append(rect);

Let's unpack this line. As it usually happens with any DOM (Document Object Model), it's easier if read backwards—from the end to the beginning. We are appending the rect object to the children list of the insertionParent (which is "the preferred parent to insert newly added content into") of the context (the "User's current selection context"), a property of the editor class.2

In other words, we're adding rect as a sibling of whatever happens to be active at the moment: this is what the context.insertionParent.children dance does. If you try to add rect while a shape nested inside a group is selected, then rect will also belong to that group. Please note that Adobe Express documents are based on data structures where instances are appended to collections: you append() a rectangle to a container's children collection.3

grids addon shape

Alternatively, you can target the insertion point specifically rather than relying on what happens to be selected at the time of execution. For instance, the following code uses the first Artboard of the first Page.

Copied to your clipboard
// ...
const doc = editor.documentRoot; // document
const currentPage = doc.pages.first; // page
const currentArtboard = currentPage.artboards.first; // artboard
currentArtboard.children.append(rect); // children
// or
editor.documentRoot.pages.first.artboards.first.children.append(rect);

Quoting a revealing bit of the Page reference:

A PageNode represents a page in the document. A page contains one or more artboards, representing "scenes" in a linear timeline sequence. Those artboards, in turn, contain all the visual content of the document.

You now understand the fundamentals of the Adobe Express DOM and the hierarchical relations between nodes. You have all the necessary tools to begin coding the Grids add-on; you can always refer to the documentation when needed.

Coding the Grids add-on

Designing the UI with Spectrum Web Components

Although the main subject of this tutorial is the Document API, let's spend a moment discussing the Grid add-on's User Interface. It's built mainly with Spectrum Web Components (see this guide for a refresher on Adobe's UX Guidelines and the use of the Spectrum Design System), in particular:

  • <sp-number-field> for the Rows and Columns inputs;
  • <sp-slider> for the Gutter;4
  • <sp-swatch> for the color picker;
  • <sp-button-group> and <sp-button> for the CTA buttons.

The layout is based on nested FlexBox CSS classes, such as row and column. Because of the fixed width, margins are tight; the design has also been compacted along the Y-axis for consistency.

grids addon swc

Please remember that any Spectrum Web Component you use must be installed and imported into the project first—refer to the instructions on their official site and this guide. In a nutshell, find the package name in each component's documentation, and then npm install the ones you need.

Copied to your clipboard
npm install @spectrum-web-components/button
npm install @spectrum-web-components/action-button
npm install @spectrum-web-components/button-group
npm install @spectrum-web-components/field-label
npm install @spectrum-web-components/number-field
npm install @spectrum-web-components/slider
npm install @spectrum-web-components/swatch
npm install @spectrum-web-components/theme

Finally, import them in the ui/index.js file.

Copied to your clipboard
import "@spectrum-web-components/styles/typography.css";
import "@spectrum-web-components/theme/src/themes.js";
import "@spectrum-web-components/theme/theme-light.js";
import "@spectrum-web-components/theme/express/theme-light.js";
import "@spectrum-web-components/theme/express/scale-medium.js";
import "@spectrum-web-components/theme/sp-theme.js";
import "@spectrum-web-components/button/sp-button.js";
import "@spectrum-web-components/button-group/sp-button-group.js";
import "@spectrum-web-components/field-label/sp-field-label.js";
import "@spectrum-web-components/number-field/sp-number-field.js";
import "@spectrum-web-components/slider/sp-slider.js";
import "@spectrum-web-components/swatch/sp-swatch.js";

The only tricky UI bit worth mentioning here is relative to the color pickers. SWC features a variety of color-related components (Color Area, Color Handle, Color Loupe, Color Slider) but not an actual picker. This add-on implements it via a <sp-swatch> for the UI and a hidden native <input> element behind it.

Copied to your clipboard
<div class="row">
<!-- ... -->
<sp-swatch id="rowsColorSwatch" class="color-well"></sp-swatch>
<input type="color" id="rowsColorPicker" style="display: none;" />
</div>

The <sp-swatch> click handler programmatically triggers the <input> click, which, although hidden, can still display the browser's native color picker. On input (i.e., when the user selects a different color within the picker), the color attribute of the <sp-swatch> controlling its fill is changed accordingly to keep both of them in sync. Please note that their values are initialized in ui/index.js for convenience—setting them in index.html would be equally fine.

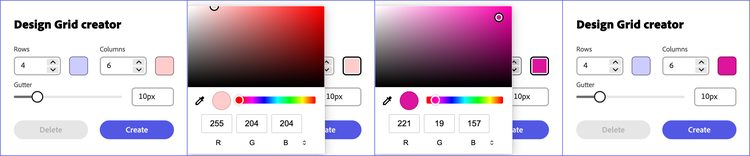

grids addon picker

Please refer to the source code for other details on the HTML structure, which are not discussed here for brevity's sake.

Collecting values from the UI

Let's finish the UI, completing the code for ui/index.js. As you can see, it is all standard JavaScript: besides the color pickers we've just discussed, Rows, Columns and Gutter values are initialized (lines 17-19); the Document Sandbox is retrieved, and everything the Document API exposes is stored in the sandboxProxy constant (lines 9-10).

Copied to your clipboard
<body>
<sp-theme scale="medium" color="light" theme="express">
<h2>Design Grid creator</h2>
<div class="row gap-20">
<div class="row">
<div class="column">
<sp-field-label for="rows" size="m">Rows</sp-field-label>
<sp-number-field id="rows" min="1" max="20"> </sp-number-field>
</div>
<sp-swatch id="rowsColorSwatch" class="color-well"></sp-swatch>
<input type="color" id="rowsColorPicker" style="display: none;" />
</div>
<div class="row">
<div class="column">
<sp-field-label for="cols" size="m">Columns</sp-field-label>
<sp-number-field id="cols" min="1" max="20"> </sp-number-field>
</div>
<sp-swatch id="colsColorSwatch" class="color-well"></sp-swatch>
<input type="color" id="colsColorPicker" style="display: none;" />
</div>
</div>
<div class="row">
<sp-slider
label="Gutter"
id="gutter"
variant="filled"
editable
hide-stepper
min="1"
max="50"
format-options='{"style": "unit", "unit": "px"}'
step="1"
></sp-slider>
</div>
<sp-button-group horizontal>
<sp-button id="deleteGrid" variant="secondary" disabled>Delete</sp-button>
<sp-button id="createGrid" disabled>Create</sp-button>
</sp-button-group>
</sp-theme>
</body>

Eventually, the two buttons (Delete and Create) invoke methods exposed by the Document API, respectively deleteGrid() and createGrid(). The latter expects an options object with rows, columns, gutter, columnColor, and rowColor properties.

Validation and Error Handling

It's worth taking a moment to discuss good validation and error-handling practices at this stage. Just as the QA engineer walking into a bar in the famous joke, you must ensure that user input aligns with what the grid algorithm expects; for example, that it receives unsigned integers.

For this tutorial, we'll limit ourselves to setting min and max values for the Rows, Columns, and Gutter ranges. This will prevent scenarios like creating a negative number of columns. In a typical implementation, you'd want to insert a validation routine before invoking the primary function. Depending on the algorithm's and the UI's complexity, this routine might belong to the iframe, the Document Sandbox, or both. Additionally, apart from validating value type and range, you may want to ensure that the Gutter size is compatible with the chosen number of Rows and Columns to prevent them from overflowing the page dimensions.5

Another crucial notion is to avoid silent failures: every action should either succeed or provide the user with a notification if it doesn't. That's why, for instance, the Delete button is left disabled until a set of grids is created; instead of handling the removal of a non-existent grid, it's preferable to prevent it in the first place.

Creating Rows and Columns

It makes sense to approach this grid business with some caution, as we're just starting with the Document API. Let's set up documentSandbox/code.js to expose this addGrid() method and manage the argument provided.

Copied to your clipboard
import addOnSandboxSdk from "add-on-sdk-document-sandbox";
const { runtime } = addOnSandboxSdk.instance;
import { editor, colorUtils, constants } from "express-document-sdk";
function start() {
runtime.exposeApi({
addGrid({ columns, rows, gutter, columnColor, rowColor }) {
console.log("addGrid", columns, rows, gutter, columnColor, rowColor);
},
});
}
start();

When the user clicks the Create button, the parameters from the UI are properly collected, passed to addGrid() in the Document Sandbox, and logged. So far, so good, the Communication API does its job.

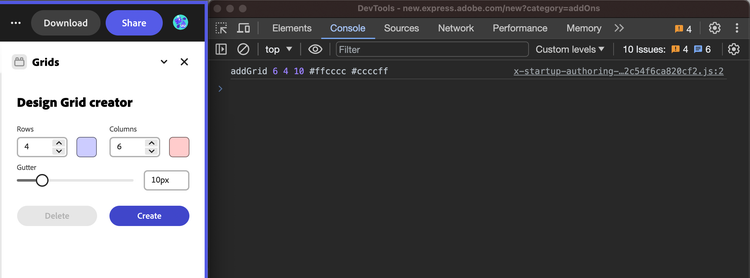

grids addon console

To begin with, we'll create rows: rectangles that must be as wide as the page. To calculate their height, first, subtract the total number of gutters (which is equal to the number of rows plus one) from the page height. Then, divide the resulting value by the number of rows.

Copied to your clipboard
rowHeight = (pageHeight - (rowsNumber + 1) * gutter) / rowsNumber;

This is because we're using gutters as page margins, too, as the following illustration shows.

grids addon rowheight

We must get hold of the Document (as documentRoot, from the Editor class) and Page—the first one from the pages list will be OK for our purposes. Page properties like width and height will be used to compute the attributes of each "row" Rectangle.

Copied to your clipboard
// ...
runtime.exposeApi({
addGrid({ columns, rows, gutter, columnColor, rowColor }) {
const doc = editor.documentRoot;
const page = doc.pages.first;
const rowWidth = page.width;
const rowHeight = (page.height - (rowsNumber + 1) * gutter) / rowsNumber;
},
});

In case you want to use the currently active Page instead, you have to traverse back to it using the insertionParent property of the context we've seen earlier as a starting point, and its parent property until you reach a node whose type is equal to the string "Page". Adobe Express documents must have at least one page, so this is a safe operation. Modify the addGrid() function as follows.

Copied to your clipboard
addGrid({ columns, rows, gutter, columnColor, rowColor }) {
// Using the current page.
let currentNode = editor.context.insertionParent;
let page = null;
while (currentNode) {
if (currentNode.type === "Page") {
page = currentNode;
break;
}
currentNode = currentNode.parent;
}
// ... rest of the code
}

To draw all four (or any number coming from the UI) rectangles at once, a loop is in order.

Copied to your clipboard
// ...
var rowsRect = [];
for (let i = 0; i < rows; i++) {
let r = editor.createRectangle();
r.width = page.width;
r.height = rowHeight;
// moving the row in place
r.translation = { x: 0, y: gutter + (gutter + rowHeight) * i };
rowsRect.push(r);
}
// adding the rows to the page
rowsRect.forEach((rect) => page.artboards.first.children.append(rect));

We've created all the needed rectangles, shifting them on the Y-axis according to their number and gutter, collecting them in a rowsRect array; which, in turn, we've looped through to append them all to the first artboard in the page.

Using the same principles, we can create columns: rectangles as tall as the page and whose width we can compute.

Copied to your clipboard
const doc = editor.documentRoot;
const page = doc.pages.first;
var colsRect = [];
const colWidth = (page.width - (cols + 1) * gutter) / cols;
for (let i = 0; i < cols; i++) {
let r = editor.createRectangle();
r.width = colWidth;
r.height = page.height;
r.translation = { x: gutter + (gutter + colWidth) * i, y: 0 };
cols.push(r);
}
cols.forEach((rect) => page.artboards.first.children.append(rect));

We now have most of what is needed to complete the Grids add-on; we're in dire need of a better structure, though.

Organizing the code

The Grid creation process can be split into smaller, separate steps—we can take this chance to think about how to structure the entire project.

  • Creating a rectangle is best handled using a dedicated createRect() function.
  • Rows and Columns can be separate processes, too.
  • code.js doesn't need to expose anything else but the addGrid() and deleteGrid() methods.
  • addRows() and addColumns() can belong to the shapeUtils.js module and imported in documentSandbox/code.js, while createRect() will be kept as private.
Copied to your clipboard
import addOnSandboxSdk from "add-on-sdk-document-sandbox";
import { editor } from "express-document-sdk";
import { addColumns, addRows } from "./shapeUtils";
// Get the Document Sandbox.
const { runtime } = addOnSandboxSdk.instance;
function start() {
const sandboxProxy = {
addGrid({ columns, rows, gutter, columnColor, rowColor }) {
addRows(rows, gutter, rowColor);
addColumns(columns, gutter, columnColor);
// ...
},
deleteGrid() {
// ...
},
};
runtime.exposeApi(sandboxProxy);
}
start();

As planned, createRect() conveniently acts as a rectangles factory function, consumed by addRows() and addColumns(). Since the color is received as a Hex string (like "#ffcccc"), we make use of the colorUtil.fromHex() method to convert into a Color instance—see shapeUtils.js, line 9.

It'd be nice to group rows and columns. The Editor class provides a createGroup() method returning a GroupNode. Like all ContainerNode classes, it has a children property, which we can append rectangles to.

Copied to your clipboard
const addRows = (rowsNumber, gutter, color) => {
// ...
var rows = [];
// ...
const rowsGroup = editor.createGroup(); // creating a group
page.artboards.first.children.append(rowsGroup); // appending to the page
rowsGroup.children.append(...rows); // appending rectangles
};
// 👆 same in addColumns()

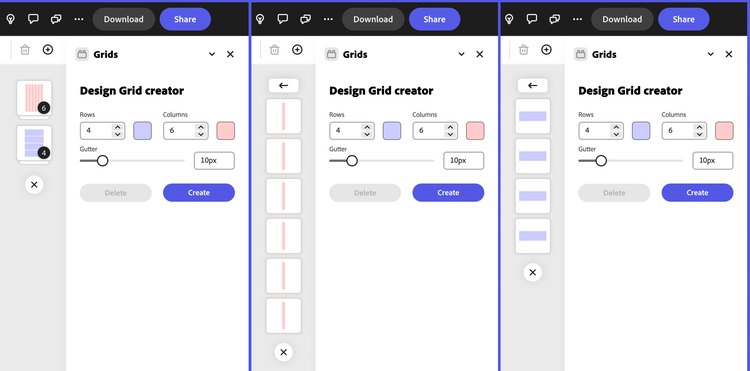

grids addon groups

To complete the project, we can add some finishing touches. Groups can be locked: preventing accidental shifts and transformations would be nice indeed. The Reference documentation comes in handy again with the boolean locked property, which we can easily set after populating the group.

Copied to your clipboard
// ...
rowsGroup.children.append(...rows);
rowsGroup.locked = true;

The Reference also shows an interesting blendMode: setting it to multiply will produce a visually nicer overlay effect (opacity can be an alternative).

Copied to your clipboard
// ...
rowsGroup.blendMode = constants.BlendMode.multiply;
rowsGroup.locked = true;

At present, the Reference includes only a few enumerations, such as BlendMode. As the Document API expands, more enumerations will be added. They provide sets of named constants, making the code more readable by replacing direct numeric values with descriptive names.

It would be preferable if a single group contained Rows and Columns; we must edit both addRows() and addColumns() first to return their group in order to reference them in the parent one.

Copied to your clipboard
const addRows = (rowsNumber, gutter, color) => {
// ...
rowsGroup.locked = true;
return rowsGroup; // 👈 returning the group
};
const addColumns = (columNumber, gutter, color) => {
// ...
columnsGroup.locked = true;
return columnsGroup; // 👈
};

They can be referenced in addGrid(), appending them as children of this new group.

Copied to your clipboard
addGrid({ columns, rows, gutter, columnColor, rowColor }) {
// ...
const rowGroup = addRows(rows, gutter, rowColor);
const columnGroup = addColumns(columns, gutter, columnColor);
// create a parent group
const gridGroup = editor.createGroup();
page.artboards.first.children.append(gridGroup);
gridGroup.children.append(rowGroup, columnGroup); // filling with Rows and Columns
gridGroup.locked = true;
}

Deleting Grids

From the users' perspective, it would speed up the testing process of new grid designs if they could clear the current one and experiment with different combinations—that is, a Delete button. You can both add and remove elements to a container object's children list: most Node elements have a removeFromParent() method, which detaches them from their parent container.

Copied to your clipboard
gridGroup.removeFromParent(); // voilà

Curb your enthusiasm: if you think about it, there might be an issue lurking here. The process of removing a group is performed at a later time, with respect to its creation: how can we be sure to target the correct container? Groups don't have names or IDs, at least for the time being. Luckily, the code.js file provides an environment that persists in between iframe calls: in other words, you can store the group in a variable and retrieve it later.

Copied to your clipboard
let gridRef = null; // 👈 Grids group reference
function start() {
runtime.exposeApi({
addGrid({ columns, rows, gutter, columnColor, rowColor }) {
// ...
const gridGroup = editor.createGroup();
// ...
gridRef = gridGroup; // 👈 storing the group for later
},
deleteGrid() {
if (gridRef) {
try {
gridRef.removeFromParent(); // 👈 removing from the document
gridRef = null; // clearing the reference
} catch (error) {
console.error(error);
return "Error: the Grid could not be deleted.";
}
}
},
});
}
start();

Although not exposed through the Communication API, the gridRef variable is private to code.js, and exists within the closure of the functions defined inside and exposed by runtime.exposeApi().6

Next Steps

Congratulations! You've coded from scratch the Grids Design System add-on. This proof-of-concept may be extended to make it even more useful as a product; you may implement the following features as an exercise.

  • Page margins: we're using the gutter for this purpose, but a proper <sp-number-field> can be added to allow users to set margins.
  • Visibility toggle: Use a <sp-slider>to control the grid's opacity, or add a <sp-switch> to toggle them on and off.
  • Presets: a dropdown menu might store commonly used grid sets—use a <sp-picker> and the Client Storage API.

Lessons Learned

Let's review the concepts covered in this tutorial and how they've been implemented in the Grids add-on.

  • The iframe and the Document Sandbox are two distinct entities able to share contexts via the Communication API. We've used the exposeApi() method of the runtime object to allow the iframe to invoke functions in the Document API domain.
  • The Document API provides access to Adobe Express' Document Object Model, which defines containment structures and inheritance hierarchies. We've retrieved the document, its pages, and artboards; created, moved and assigned blending modes to shapes; created, populated and locked groups.
  • Nodes (elements) in Adobe Express documents can be added to the document in a position relative to the currently active selection or targeting a container as the insertion point; we've seen how ContainerNode elements have a children collection to append() elements to.
  • The Document API context is permanent in between iframe calls. We've seen that it's possible to store a reference to a Node within the exposed methods' closure and act upon it after its creation.
  • Spectrum Web Components are crucial to UI building, but sometimes they require customization; in this project, we've linked a <sp-swatch> to a traditional <input> element to create an Adobe Express' native-looking color picker.

Final Project

The code for this project can be downloaded here. It's available in two states: the starting point (one Create Shape button in the UI and the respective Document API function) if you want to follow along with the tutorial and type in the code—the best way to learn—and the final state, which code is also found below for convenience.

Copied to your clipboard
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="description" content="Adobe Express Add-on tutorial using JavaScript and the Document Sandbox" />
<meta
name="keywords"
content="Adobe, Express, Add-On, JavaScript, Document Sandbox, Adobe Express Document API"
/>
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Grids add-on</title>
<link rel="stylesheet" href="styles.css" />
</head>
<body>
<sp-theme scale="medium" color="light" theme="express">
<h2>Design Grid creator</h2>
<div class="row gap-20">
<div class="row">
<div class="column">
<sp-field-label for="rows" size="m">Rows</sp-field-label>
<sp-number-field id="rows" min="1" max="20"> </sp-number-field>
</div>
<sp-swatch id="rowsColorSwatch" class="color-well"></sp-swatch>
<input type="color" id="rowsColorPicker" style="display: none;" />
</div>
<div class="row">
<div class="column">
<sp-field-label for="cols" size="m">Columns</sp-field-label>
<sp-number-field id="cols" min="1" max="20"> </sp-number-field>
</div>
<sp-swatch id="colsColorSwatch" class="color-well"></sp-swatch>
<input type="color" id="colsColorPicker" style="display: none;" />
</div>
</div>
<div class="row">
<sp-slider
label="Gutter"
id="gutter"
variant="filled"
editable
hide-stepper
min="1"
max="50"
format-options='{"style": "unit", "unit": "px"}'
step="1"
></sp-slider>
</div>
<sp-button-group horizontal>
<sp-button id="deleteGrid" variant="secondary" disabled>Delete</sp-button>
<sp-button id="createGrid" disabled>Create</sp-button>
</sp-button-group>
</sp-theme>
</body>
</html>

  1. Alternatively, you can use this blank template and start from scratch, but you'd need to manually add the documentSandbox/shapeUtils.js file and the various Spectrum imports.
  2. The quotes are from the Documentation Reference of each element.
  3. The terms "list" is used in the Adobe Express reference documentation, while "collection" may be more familiar to CEP/UXP developers; they are used interchangeably here.
  4. It could have been another <sp-number-field>, but a slider played well with the overall design.
  5. For example, you may want to retrieve the page's width and height properties at the beginning, and use them in the rest of the code.
  6. Future versions of the Document API may provide more deliberate ways to refer to elements.
  • Privacy
  • Terms of Use
  • Do not sell or share my personal information
  • AdChoices
Copyright © 2024 Adobe. All rights reserved.
