Tax use cases

This page explores different use cases and scenarios for implementing tax integrations using the Adobe Commerce checkout starter kit.

For more general use cases, refer to use-cases.

Collect taxes

You can calculate and apply taxes on shopping carts during checkout by using the collectTaxes webhook. See webhooks to understand and setup a webhook.

To register a webhook, you need to create a webhooks.xml configuration file in your module or in the root app/etc directory.

The following example demonstrates how to add a webhook to the plugin.magento.out_of_process_tax_management.api.oop_tax_collection.collect_taxes method:

Copied to your clipboard
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_AdobeCommerceWebhooks:etc/webhooks.xsd">
    <method name="plugin.magento.out_of_process_tax_management.api.oop_tax_collection.collect_taxes" type="before">
        <hooks>
            <batch name="collect_taxes">
                <hook
                    name="collect_taxes"
                    url="https://<your_app_builder>.runtime.adobe.io/api/v1/web/commerce-checkout-starter-kit/tax-calculation"
                    method="POST" timeout="10000" softTimeout="2000"
                    priority="300" required="true" fallbackErrorMessage="Tax calculation failed. Please try again later."
                    ttl="0"
                >
                </hook>
            </batch>
        </hooks>
    </method>
</config>

When the quote is recalculated, such as during a cart update or at checkout, a synchronous call is dispatched to the App Builder application that handles tax calculation. The response is returned through the oopQuote object, which includes the calculated tax fields. This webhook is only triggered when a shipping destination address is set, to avoid unnecessary calls during early cart interactions.

Refer to actions/tax-calculation.js for an example of how to process the request and return the tax calculation to the commerce instance. This file can serve as a template to implement custom tax calculations.

Payload

The Appbuilder application receives the following payload as an oopQuote object that contains the necessary data for the tax calculation. Once the calculation is processed, the response will populate the tax and tax_breakdown fields under the items array and provide the response to the commerce instance.

Copied to your clipboard
{
  "oopQuote": {
    "customer_tax_class": "string",
    "items": [
      {
        "code": "sequence-1",
        "type": "product",
        "tax_class": "tax-1",
        "unit_price": 60,
        "quantity": 2,
        "is_tax_included": false,
        "discount_amount": 0,
        "custom_attributes": [],
        "sku": "SKU-1",
        "name": "Product Name 01",
        "tax": null,
        "tax_breakdown": []
      },
      {
        "code": "shipping",
        "type": "shipping",
        "tax_class": "Shipping Tax",
        "unit_price": 60,
        "quantity": 1,
        "is_tax_included": false,
        "discount_amount": 0,
        "custom_attributes": [],
        "sku": null,
        "name": null,
        "tax": null,
        "tax_breakdown": []
      }
    ],
    "ship_from_address": {
      "street": [],
      "city": "City1",
      "region": "Alhabama",
      "region_code": "AL",
      "country": "US",
      "postcode": "12345"
    },
    "ship_to_address": {
      "street": ["address 1", "address 2"],
      "city": "City1",
      "region": "California",
      "region_code": "CA",
      "country": "US",
      "postcode": "12345"
    },
    "billing_address": {
      "street": ["address 1", "address 2"],
      "city": "City1",
      "region": "California",
      "region_code": "CA",
      "country": "US",
      "postcode": "12345"
    },
    "shipping": {
      "shipping_method": "FREE",
      "shipping_description": "FREE"
    },
    "custom_attributes": []
  }
}

Responses to commerce webhooks are expected to modify the original request body in various ways (see Webhook responses and logging). The following response example uses the replace operation to set the tax field and the add operation to add different taxes to the tax_breakdown array.

The key points for constructing the response are:

  • The amount in the tax object represents the actual tax applied to each line item.
  • The rate in both the tax and tax_breakdown objects is included for reference to indicate which tax rate was applied.
  • The discount_compensation_amount corresponds to the hidden tax, which accounts for the portion of tax adjusted by discounts.
Copied to your clipboard
[
  {
    "op": "add",
    "path": "oopQuote/items/0/tax_breakdown",
    "value": {
      "data": {
        "code": "state_tax",
        "rate": 4.5,
        "amount": 5.4,
        "title": "State Tax",
        "tax_rate_key": "state_tax-4.5"
      }
    },
    "instance": "Magento\\OutOfProcessTaxManagement\\Api\\Data\\OopQuoteItemTaxBreakdownInterface"
  },
  {
    "op": "add",
    "path": "oopQuote/items/0/tax_breakdown",
    "value": {
      "data": {
        "code": "county_tax",
        "rate": 3.6,
        "amount": 4.32,
        "title": "County Tax",
        "tax_rate_key": "county_tax-3.6"
      }
    },
    "instance": "Magento\\OutOfProcessTaxManagement\\Api\\Data\\OopQuoteItemTaxBreakdownInterface"
  },
  {
    "op": "replace",
    "path": "oopQuote/items/0/tax",
    "value": {
      "data": {
        "rate": 8.1,
        "amount": 9.72,
        "discount_compensation_amount": 0
      }
    },
    "instance": "Magento\\OutOfProcessTaxManagement\\Api\\Data\\OopQuoteItemTaxInterface"
  }
]

Update custom attributes on tax classes via Admin UI

The out-of-process tax module allows you to add custom attributes to tax classes. These attributes are useful when integrating with third-party tax systems that require standardized identifiers or additional metadata.
For the relevant endpoints to update tax class custom attributes, see the Tax API reference.

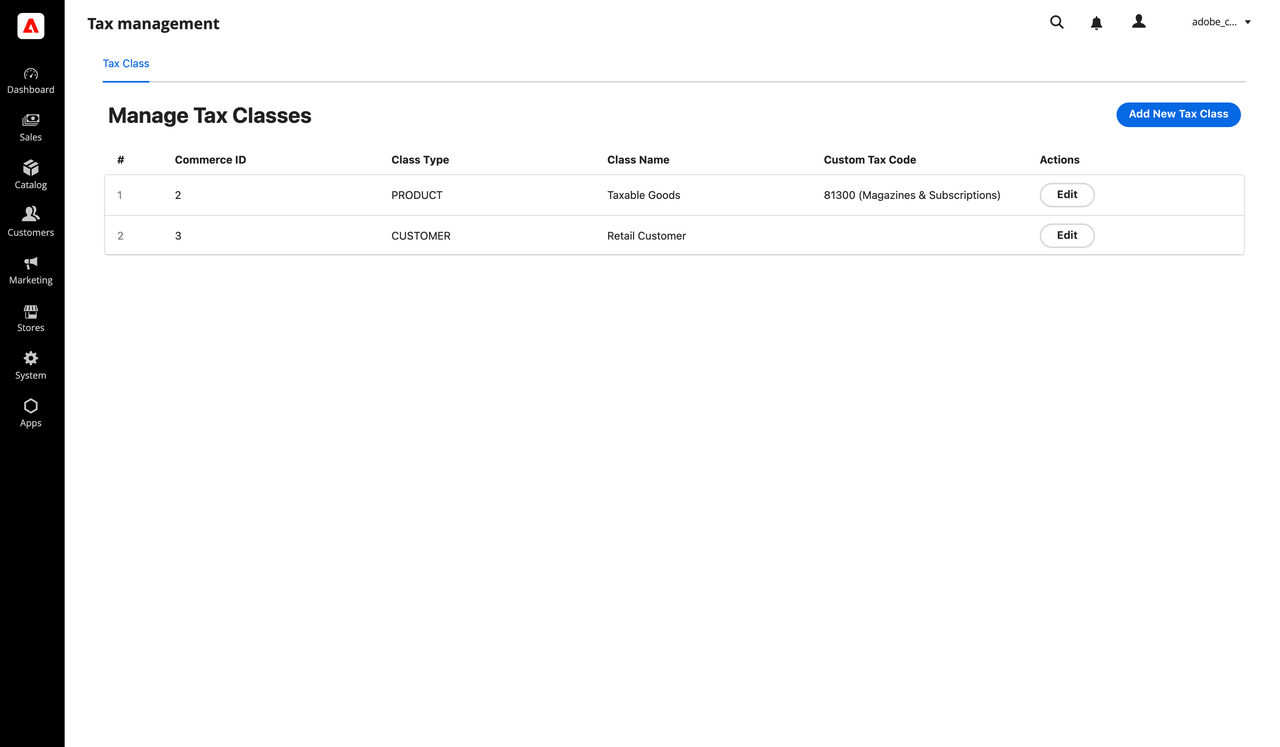

To simplify management, the starter kit includes a sample Admin UI application. This single-page application, located in the commerce-backend-ui-1, connects to your Commerce instance, retrieves tax classes, and allows you to add or edit their custom attributes directly from the UI.

Tax Management UI

To set up the Admin UI application in your Commerce environment, see the Admin UI SDK documentation.

Once custom attributes are assigned to tax classes, they are included in webhook requests during tax calculation. Here's an example payload showing how the custom attributes from tax classes appear in the webhook request:

Copied to your clipboard
{
  "oopQuote": {
    "customer_tax_class": "Retail Customer",
    "custom_attributes": {
      "tax_code": "005",
      "tax_label": "Retail"
    },
    ...
    "items": [
      {
        "tax_class": "Taxable Goods",
        "custom_attributes": {
          "tax_code": "001",
          "tax_label": "Textbook"
        },
        ...
      }
    ]
  }
}

Propagate custom attributes of tax classes

The out-of-process tax module introduces support for assigning serialized custom attributes to tax classes. These attributes are then automatically associated with shopping cart data during cart creation and product addition. This allows for tax-related metadata to be included early in the checkout process and carried forward into subsequent operations.

How it works

  • Customer Tax Class > Quote:
    When a customer creates a shopping cart, any serialized custom attributes associated with the customer's tax class are copied to the Quote entity.

  • Product Tax Class > Quote Item:
    When a product is added to the cart, serialized custom attributes from the product's tax class are copied to the corresponding Quote Item.

This ensures that both the Quote and each Quote Item contain tax-relevant custom data for further processing or integration.

Quote to Order propagation

Once the customer places an order, all serialized custom attributes already present in the Quote and Quote Item entities are automatically propagated to the Order and Order Item entities, respectively.

This propagation ensures that tax class metadata—initially attached by customer and product associations—is consistently preserved throughout the entire checkout lifecycle. This allows external systems (such as tax calculation services) to access the tax class and its serialized custom attributes using:

  • REST APIs
  • GraphQL queries
  • Event-driven integrations using Adobe Commerce Eventing

This consistency is critical for third-party integrations that rely on tax classification metadata for compliance, reporting, or invoicing purposes.
