Adobe Analytics - Mobile Services

This extension enables in-app messaging, push notifications, and marketing links functionality from Mobile Services on the Experience Platform SDK.

Review the following Mobile Services functionality documentation for context and set up before implementation at these links:

To use the Mobile Services extension, complete the following steps:

  1. Configure the Mobile Services extension in the Data Collection UI.
  2. If using acquisition and marketing links, update your configuration in the Analytics extension.
  3. Add Mobile Services extension to your app.
  4. Implement the Mobile Services APIs in your app.

Configure the Mobile Services extension in the Data Collection UI

Automatic configuration (Recommended)

  1. In the Data Collection UI, select the Extensions tab.
  2. Choose Catalog, locate the Adobe Analytics – Mobile Services extension, and select Install.

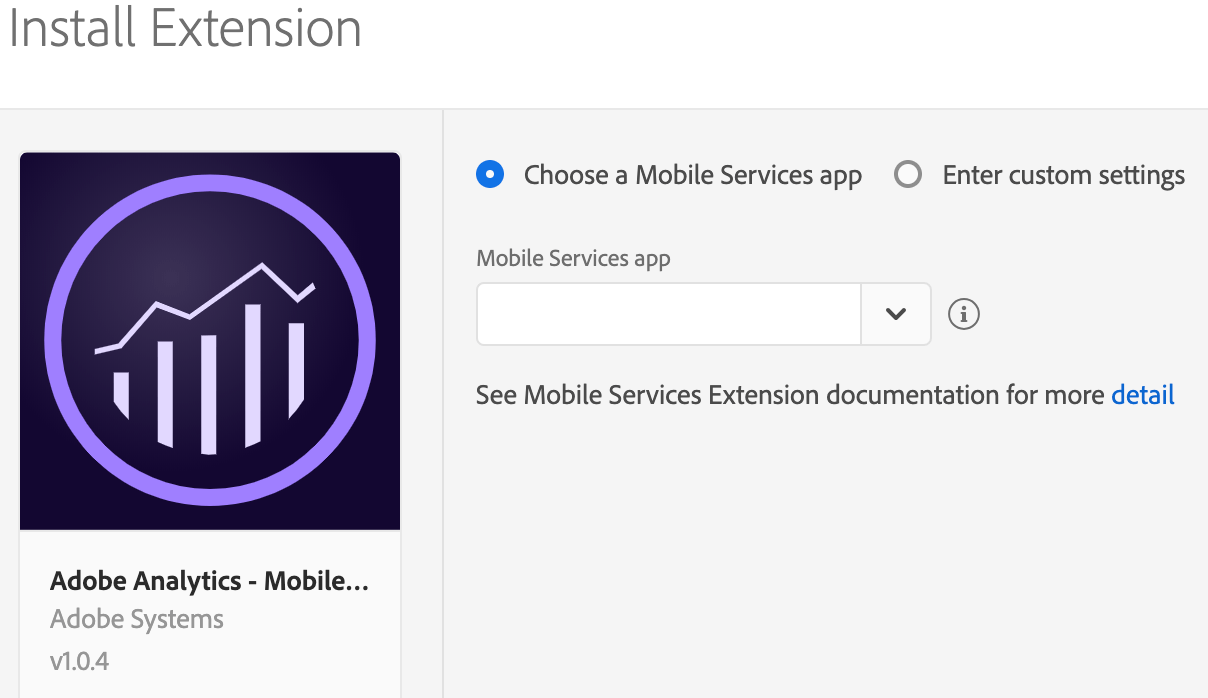

  3. Select a Mobile Services app and complete the following tasks:
    1. In Mobile Services app, select app from the drop-down list.
    2. Select Save.
    3. Follow the publishing process to update the SDK configuration.

Mobile Services Extension Configuration

Manual configuration

Mobile Services Extension Configuration

To install the Mobile Services extension, complete the following steps:

  1. Select Enter Custom settings.

  2. Enter an Acquisition time out. The recommended time out is 5 seconds. To enable app acquisition, this value must be greater than 0.

  3. Provide the Acquisition App ID (sample value: 0eb9f2791f0880623f91e41e5309d2ae25066e513054a4cb59168dc886b526da)).

    You can find the Acquisition App ID in Mobile Services.

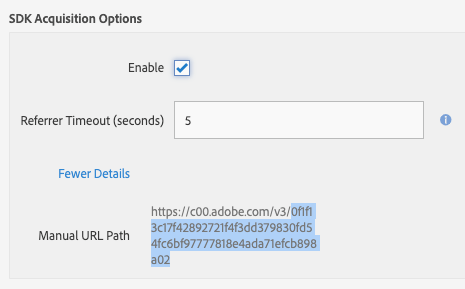

  4. Select your app, navigate to Manage App Settings page, and in the SDK Acquisition Options section, copy the hashed string similar to the highlighted value:

    sdk acquisition options

  5. Provide the Messages URL. This value would look something similar to: https://assets.adobedtm.com/b213432c5204bf94318f4ef0539a38b487d10368/scripts/satellite-5c7711bc64746d7f5800036e.json

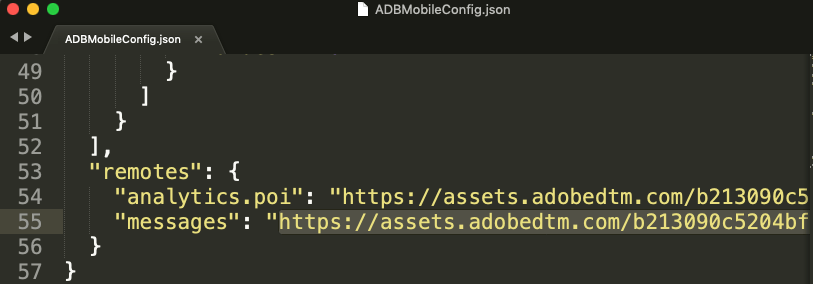

    You can find the Messages URL from your ADBMobileConfig.json file typically near the bottom of the file.

    adb mobile config

  6. Select Save.

  7. Follow the publishing process to update your SDK configuration.

Configure the Adobe Analytics extension

  1. To ensure that this extension is correctly configured and implemented, follow the steps in the configure the Mobile Services extension in the Data Collection UI section.

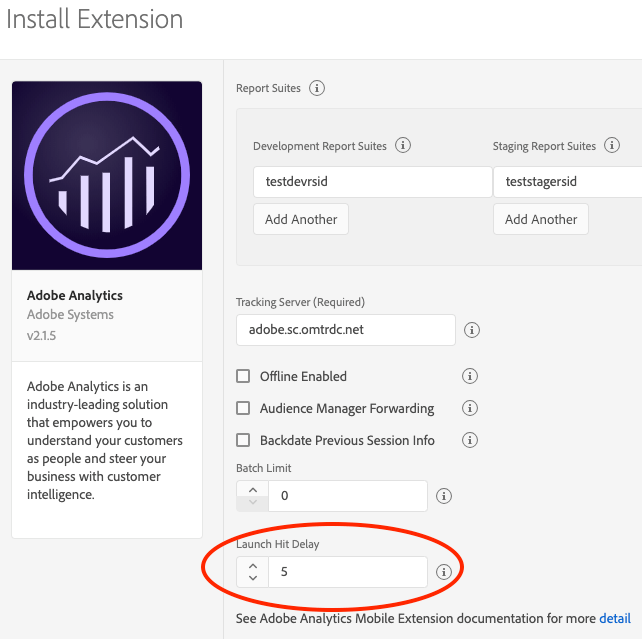

  2. In Launch Hit Delay, type a value of 5s or more to ensure that the acquisition context is sent to Analytics with your Lifecycle information.

launch hit delay

Add the Mobile Services extension to your app

Add the Mobile Services extension to your project using the app's Gradle file.

Java

Import the Mobile Services extension in your application's main activity.

Copied to your clipboard
import com.adobe.marketing.mobileservices.*;

Register Mobile Services with Mobile Core

Java

Call the setApplication() method once in the onCreate() method of your main activity. For example, your code might look like the following:

Copied to your clipboard
public class MobileServicesApp extends Application {


@Override
public void onCreate() {
     super.onCreate();
     MobileCore.setApplication(this);


     try {
             Analytics.registerExtension();
             MobileServices.registerExtension(); //Register Mobile Services with Mobile Core
             Lifecycle.registerExtension();
             Identity.registerExtension();
             MobileCore.start(null);
     } catch (Exception e) {
     //Log the exception
     }
  }
}

Implement Mobile Services APIs in your app

To use your Android or iOS extension with the Experience Platform SDKs, implement the following APIs:

Set up push messaging

Obtain the registration ID/token by using the Firebase Cloud Messaging (FCM) APIs.

Java

Syntax

Copied to your clipboard
void setPushIdentifier(final String registrationID)

Example

Copied to your clipboard
MobileCore.setPushIdentifier(registrationID);

Debugging the push messaging set up

If the Mobile Services API is correctly configured, after installing your app on a mobile device, verify that the following SDK debug log is displayed:

To verify, make a request to demdex.net, containing the device push token has been sent:

Copied to your clipboard
2019-01-31 18:22:35.261676-0800 DemoApp[935:156015] [AMSDK DEBUG <com.adobe.module.identity>]: Sending request (https://dpm.demdex.net/id?d_rtbd=json&d_ver=2&d_orgid=B1F855165B4C9EA50A495E06@AdobeOrg&d_mid=43583282444503123217621782542046274680&d_blob=j8Odv6LonN4r3an7LhD3WZrU1bUpAkFkkiY1ncBR96t2PTI&dcs_region=9)

Set up push tracking

Use the following API to track a push messaging click in Adobe Analytics.

On Android, the SDK handles push tracking to analytics without any additional set up. If the application has implemented the FirebaseMessaginService class and will handle the push notifications when the application is in foreground, read the push data from the received Intent and add it to the intent extras of the Activity to be launched. An example can be found in the Mobile Services implement push messaging tutorial.

Troubleshooting push messaging

For more information, see the following:

Set up in-app messaging

This feature allows you to deliver in-app messages that are triggered from any analytics data or event. After the implementation, messages are dynamically delivered to the app and do not require a code update. In-app messages are created in Mobile Services. For more information, see the create an in-app message tutorial.

To set up your app for in-app messages, implement the following instructions. You can complete these steps even if you have not yet defined any messages in Mobile Services. After you define messages, they are delivered dynamically to your app and displayed without an app store update.

Update the AndroidManifest.xml file to declare the full screen activity and enable the Message Notification Handler.

Java

If you are using either fullscreen message or local notification functionality, update the AndroidManifest.xml with the following:

Copied to your clipboard
<activity
    android:name="com.adobe.marketing.mobile.MessageFullScreenActivity"
    android:windowSoftInputMode="adjustUnspecified|stateHidden" >
</activity>
<receiver android:name="com.adobe.marketing.mobile.MessageNotificationHandler" />

If you selected a modal layout, select one of the following themes for the message:

  • Theme.Translucent.NoTitleBar.Fullscreen
  • Theme.Translucent.NoTitleBar
  • Theme.Translucent

Example

Copied to your clipboard
<activity
android:name="com.adobe.marketing.mobile.MessageFullScreenActivity"
android:theme="@android:style/Theme.Translucent.NoTitleBar.Fullscreen"
android:windowSoftInputMode="adjustUnspecified|stateHidden" >
</activity>
<receiver android:name="com.adobe.marketing.mobile.MessageNotificationHandler" />

Fallback images

When creating a full-screen message, you can optionally specify a fallback image. If your message cannot retrieve its intended image from the web, the SDK attempts to load the image with the same name from your application's assets folder. This allows you to show your message in its original form, even if the user is offline or the predetermined image is unreachable.

Configuring notification icons

The following methods allow you to configure the small and large icons that appear in the notification area, and the large icon that is displayed when notifications appear in the notification drawer.

setSmallIconResourceId

This API sets the small icon that is used for notifications that are created by the SDK. This icon appears in the status bar and is the secondary image that is displayed shown when the user sees the complete notification in the notification center.

Syntax

Copied to your clipboard
public static void setSmallIconResourceId(final int resourceId);

Example

Copied to your clipboard
MobileCore.setSmallIconResourceID(R.drawable.appIcon);

setLargeIconResourceId

This API sets the large icon that is used for notifications that are created by the SDK. This icon is the primary image that is displayed when the user sees the complete notification in the notification center.

Syntax

Copied to your clipboard
public static void setLargeIconResourceId(final int resourceId);

Example

Copied to your clipboard
MobileCore.setLargeIconResourceId(R.drawable.appIcon);

Tracking in-app messages

The SDK automatically tracks metrics for your in-app messages.

For full screen and alert style in-app messages, the following metrics are tracked:

  • Impressions: when user triggers an in-app message.
  • Click throughs: when user selects the Click through button.
  • Cancels: when user selects the Cancel button.

For custom full screen in-app messages, the HTML content in the message needs to include the correct code to notify the SDK tracking about the following buttons:

  • Click-through (redirect) example tracking: adbinapp://confirm/?url=http://www.yoursite.com
  • Cancel (close) example tracking: adbinapp://cancel

For local (remote) notifications, the following metrics are tracked:

  • Impressions: when user triggers the notification.
  • Opens: when user opens app from the notification.

The following example shows you how to include open tracking:

Copied to your clipboard
- (BOOL) application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {


  // handle local notification click-throughs for iOS 10 and older
  NSDictionary *localNotificationDictionary = launchOptions[UIApplicationLaunchOptionsLocalNotificationKey];
  if ([localNotificationDictionary isKindOfClass:[NSDictionary class]]) {
       [ACPCore collectLaunchInfo:localNotificationDictionary];
  }


}
- (void) application:(UIApplication *)application didReceiveLocalNotification:(UILocalNotification *)notification {
   [ACPCore collectLaunchInfo:notification.userInfo];
}

Troubleshooting in-app messaging

For more information, see the following:

Acquisition and marketing links

Acquisition and marketing links must be created in Adobe Mobile Services. For more information, see the documentation on Acquisition within the Mobile Services.

When the user downloads and runs an app as the result of a Google Play store acquisition, the data from the referrer is collected and sent to Adobe Mobile Services. Custom keys that were part of the acquisition data from Google Play are name-spaced with a.acquisition.custom.

Using the BroadcastReceiver

  1. Implement the BroadcastReceiver for the referrer.

    Copied to your clipboard
    package com.your.package.name;  // replace with your app package name


    import android.content.BroadcastReceiver;
    import android.content.Context;
    import android.content.Intent;


    public class GPBroadcastReceiver extends BroadcastReceiver {
      @Override
      public void onReceive(Context c, Intent i) {
          com.adobe.marketing.mobile.MobileServices.processReferrer(c, i);
      }
    }

  2. Update the AndroidManifest.xml to enable the BroadcastReceiver you previously created.

    Copied to your clipboard
    <receiver android:name="com.your.package.name.GPBroadcastReceiver" android:exported="true">
        <intent-filter>
            <action android:name="com.android.vending.INSTALL_REFERRER" />
        </intent-filter>
    </receiver>

Using the Google Play Install Referrer APIs

Starting on March 1, 2020, Google is deprecating the install_referrer intent broadcast mechanism. For more information, see the Still Using InstallBroadcast? Switch to the Play Referrer API by March 1, 2020. To continue collecting install referrer information from the Google Play store, update your application to use the Mobile Services extension version 1.1.0 or newer.

With the deprecation, instead of creating a BroadcastReceiver, you need to collect the install referrer URL from a new Google API and pass the resulting URL to the SDK.

  1. Add the Google Play Install Referrer package to your gradle file's dependencies:

    Copied to your clipboard
    implementation 'com.android.installreferrer:installreferrer:1.1'

  2. To retrieve the referrer URL from the Install Referrer API, complete the steps in the get the install referrer tutorial.

  3. Pass the referrer URL to the SDK:

    Copied to your clipboard
    MobileServices.processGooglePlayInstallReferrerUrl(referrerUrl);

    To decide the best way to use the Google Play Install Referrer APIs in your app, see Google's documentation. Here is an example of how to use the Adobe SDK with the Google Play Install Referrer APIs:

    Copied to your clipboard
    void handleGooglePlayReferrer() {
        // Google recommends only calling this API the first time you need it:
        // https://developer.android.com/google/play/installreferrer/library#install-referrer


        // Store a boolean in SharedPreferences to ensure we only call it once.
        final SharedPreferences prefs = getSharedPreferences("acquisition", 0);
        if (prefs != null) {
            if (prefs.getBoolean("referrerHasBeenProcessed", false)) {
                return;
            }
        }


        final InstallReferrerClient referrerClient = InstallReferrerClient.newBuilder(getApplicationContext()).build();
        referrerClient.startConnection(new InstallReferrerStateListener() {
            private boolean complete = false;


            @Override
            public void onInstallReferrerSetupFinished(int responseCode) {
                switch (responseCode) {
                    case InstallReferrerClient.InstallReferrerResponse.OK:
                        // connection is established
                        complete();
                        try {
                            final ReferrerDetails details = referrerClient.getInstallReferrer();


                            // pass the install referrer url to the SDK
                            MobileServices.processGooglePlayInstallReferrerUrl(details.getInstallReferrer());


                        } catch (final RemoteException ex) {
                            Log.w("Acquisition - RemoteException while retrieving referrer information (%s)", ex.getLocalizedMessage() == null ? "unknown" : ex.getLocalizedMessage());
                        } finally {
                            referrerClient.endConnection();
                        }
                        break;
                    case InstallReferrerClient.InstallReferrerResponse.FEATURE_NOT_SUPPORTED:
                    case InstallReferrerClient.InstallReferrerResponse.SERVICE_UNAVAILABLE:
                    default:
                        // API not available in the Play Store app - nothing to do here
                        complete();
                        referrerClient.endConnection();
                        break;
                }
            }


            @Override
            public void onInstallReferrerServiceDisconnected() {
                if (!complete) {
                    // something went wrong trying to get a connection, try again
                    referrerClient.startConnection(this);
                }
            }


            void complete() {
                complete = true;
                SharedPreferences.Editor editor = getSharedPreferences("acquisition", 0).edit();
                editor.putBoolean("referrerHasBeenProcessed", true);
                editor.apply();
            }
        });
    }

Deep link tracking

The SDK can parse key-value pairs of data that are appended to any deep or universal link, provided the link contains a key a.deeplink.id and a corresponding non-null and user generated value. All key-value pairs of data that are appended to the URL string are parsed, attached to a lifecycle hit as context data, and sent to Adobe Analytics.

You can also append one or more of the following reserved keys, with user-generated values, to the deep or universal link:

  • a.launch.campaign.trackingcode
  • a.launch.campaign.source
  • a.launch.campaign.medium
  • a.launch.campaign.medium
  • a.launch.campaign.content

Java

Syntax

Copied to your clipboard
public static void trackAdobeDeepLink(final Uri uri)

Example

Copied to your clipboard
MobileServices.trackAdobeDeepLink

Integration with Apple Search Ads (iOS)

The Adobe Experience Platform SDK leverages Apple's Search Ads attribution to attribute app downloads that originate from Search Ads campaigns in the Apple App Store. For more information about Search Ad campaigns, see Apple Search Ads. This optional feature helps you easily measure the effectiveness of your Search Ads app download campaigns by adding a few lines of code to your app.

Implement Search Ads integration

To enable your app for Search Ad attribution, you will need to add the iAd framework, in addition to the Mobile Services extension to your app.

Reporting on Search Ads Attribution

Apple Search Ads attribution data is provided in the acquisition name, the source, and the term values.

If attribution = true , all of the iad-* fields will be included in a Lifecycle request to Adobe Analytics. In addition, the following values will be mapped from the "iad" dictionary to our typical acquisition context data fields:

  • iad-campaign-id --> a.referrer.campaign.trackingcode
  • iad-campaign-name --> a.referrer.campaign.name
  • iad-adgroup-id --> a.referrer.campaign.content
  • iad-keyword --> a.referrer.campaign.term

This mapping ensures that the values are available in Adobe Analytics standard reporting.

Migration notes

To prepare for your migration, please note the following information:

  • Lifetime value is not supported on the Experience Platform SDK, so it should not be used to trigger in-app messages or local notifications.
  • ce is no longer supported as a trigger for in-app messages or local notifications.
  • a.internalaction or action (from Lifecycle) can be used to trigger in-app messages or local notifications. You should, however, use LaunchEvent instead.
  • Local notifications do not support Android 8.0 or higher.

Watch the video

Additional information

Was this helpful?

Community

Support

Adobe Developer

  • Privacy
  • Terms of Use
  • Do not sell or share my personal information
  • AdChoices
Copyright © 2024 Adobe. All rights reserved.
