Lesson 2: Writing a Serverless Action

There are many existing npm packages to display a barcode. Some don't play well in serverless environments. For this codelab, we'll use bwip-js to render a code128 barcode.

Barcode action

First, install the dependency with:

Copy
npm i bwip-js --save
Copied to your clipboard
npm i bwip-js --save

Then import the dependency in your action:

Copy
const bwipjs = require('bwip-js');
Copied to your clipboard
const bwipjs = require('bwip-js');

Now we can use the library and generate a barcode buffer in the exported main function:

Copy
const buffer = await bwipjs.toBuffer({
  bcid: 'code128',
  text: params.value,
  scale: 3,
  height: 10,
  includetext: false,
});
Copied to your clipboard
const buffer = await bwipjs.toBuffer({
  bcid: 'code128',
  text: params.value,
  scale: 3,
  height: 10,
  includetext: false,
});

Notice that we defined a value parameter to be passed to the barcode generator configuration. This is the actual data that the barcode will be holding.

Then we can return the image representation of the buffer with:

Copy
return {
  headers: { 'Content-Type': 'image/png' },
  statusCode: 200,
  body: buffer.toString('base64')
};
Copied to your clipboard
return {
  headers: { 'Content-Type': 'image/png' },
  statusCode: 200,
  body: buffer.toString('base64')
};

Finally we can add checks to verify the requested value parameter, add logging and appropriate error handling to obtain following action:

Copy
const { Core } = require('@adobe/aio-sdk');
const { errorResponse, stringParameters, checkMissingRequestInputs } = require('../utils');
const bwipjs = require('bwip-js');

// main function that will be executed by Adobe I/O Runtime
async function main (params) {
  // create a Logger
  const logger = Core.Logger('main', { level: params.LOG_LEVEL || 'info' });

  try {
    // 'info' is the default level if not set
    logger.info('Calling the main action');

    // log parameters, only if params.LOG_LEVEL === 'debug'
    logger.debug(stringParameters(params));

    // check for missing request input parameters and headers
    const requiredParams = ['value'];
    const errorMessage = checkMissingRequestInputs(params, requiredParams);
    if (errorMessage) {
      // return and log client errors
      return errorResponse(400, errorMessage, logger);
    }

    const buffer = await bwipjs.toBuffer({
      bcid: 'code128',
      text: params.value,
      scale: 3,
      height: 10,
      includetext: false,
      backgroundcolor: 'ffffff'
    });

    return {
      headers: { 'Content-Type': 'image/png' },
      statusCode: 200,
      body: buffer.toString('base64')
    };
  } catch (error) {
    // log any server errors
    logger.error(error);
    // return with 500
    return errorResponse(500, error.message, logger);
  }
}

exports.main = main;

Copied to your clipboard
const { Core } = require('@adobe/aio-sdk');
const { errorResponse, stringParameters, checkMissingRequestInputs } = require('../utils');
const bwipjs = require('bwip-js');

// main function that will be executed by Adobe I/O Runtime
async function main (params) {
  // create a Logger
  const logger = Core.Logger('main', { level: params.LOG_LEVEL || 'info' });

  try {
    // 'info' is the default level if not set
    logger.info('Calling the main action');

    // log parameters, only if params.LOG_LEVEL === 'debug'
    logger.debug(stringParameters(params));

    // check for missing request input parameters and headers
    const requiredParams = ['value'];
    const errorMessage = checkMissingRequestInputs(params, requiredParams);
    if (errorMessage) {
      // return and log client errors
      return errorResponse(400, errorMessage, logger);
    }

    const buffer = await bwipjs.toBuffer({
      bcid: 'code128',
      text: params.value,
      scale: 3,
      height: 10,
      includetext: false,
      backgroundcolor: 'ffffff'
    });

    return {
      headers: { 'Content-Type': 'image/png' },
      statusCode: 200,
      body: buffer.toString('base64')
    };
  } catch (error) {
    // log any server errors
    logger.error(error);
    // return with 500
    return errorResponse(500, error.message, logger);
  }
}

exports.main = main;

You can run the action locally using the CLI with:

Copy
aio app run --local
Copied to your clipboard
aio app run --local

which will:

1. Start a local OpenWhisk stack on Docker.
2. Package and deploy the Runtime action and its dependencies using a built-in webpack configuration.
3. Start a local development environment and provide the action url e.g. http://localhost:3233/api/v1/web/guest/my-barcode-app-0.0.1/barcode for testing and debugging.

Note that we'll cover how to do debug an App Builder app in another codelab.

Now if you add the value parameter to the url e.g. ?value=test, the action should generate a barcode:

Deploying

You can deploy an App Builder Headless app with aio app run or aio app deploy. This will deploy the actions to Adobe I/O Runtime. aio app deploy would have deployed the UI to a CDN but since we don't have any UI, that step is simply ignored. We'll have a separate codelab to guide you through building an App Builder App with UI.

Make sure to set your Adobe I/O Runtime secrets (namespace and auth) in the .env file. We'll also turn off the built-in authentication by setting require-adobe-auth: false in the manifest.yml.
The security topic will be covered in a dedicated codelab.

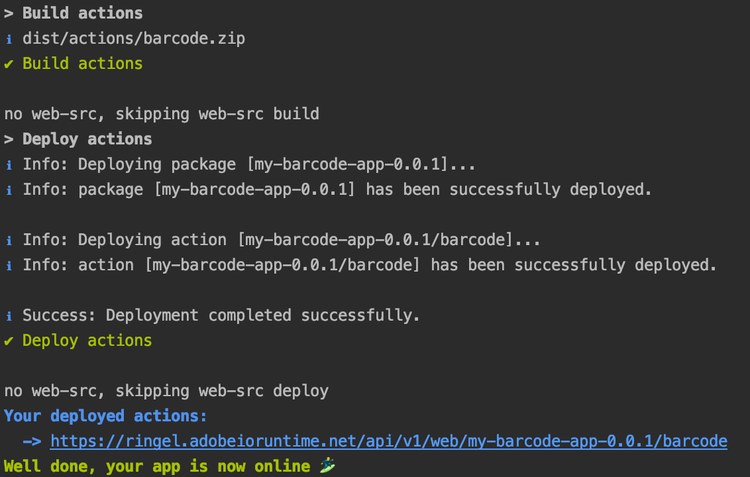

Hitting deploy with the CLI will output the deployed action url:

Congratulations ! Your first App Builder Headless App is live.

How can we test that the passed value is actually rendered as a barcode ? Luckily for us, there are also barcode readers that we can leverage in our tests.
