Built-in UI Components: Color Picker

Adobe Express includes a set of built-in UI Components that provide a consistent experience across different parts of the application.

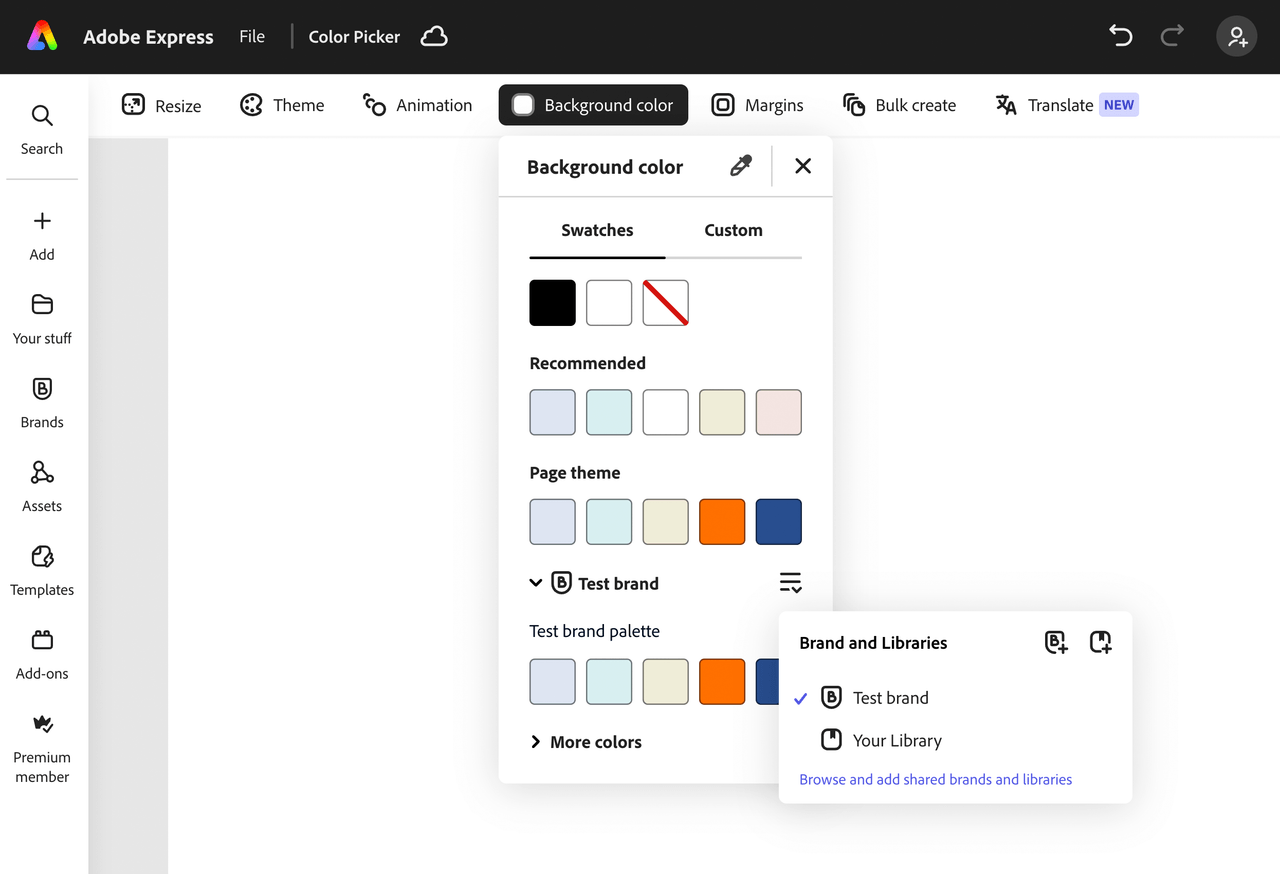

Features

The Adobe Express native Color Picker offers several unique features, compared to the Browser's default alternative, for example:

Color Picker

Using the Adobe Express Color Picker in your add-on instead of building your own version provides a few benefits:

Please note that the Color Picker is going to be available to add-ons in Adobe Express on desktop environment only.

API

The addOnUISdk.app has two dedicated method:

data-variant=info

data-slots=text
Please refer to the API reference for a complete list of the available options.

showColorPicker()

showColorPicker(
  anchorElement: HTMLElement,
  options?: ColorPickerOptions): Promise<void>;

The method accepts a reference to an HTML element as its first argument, which will become the color picker's anchor element. This is important for two reasons:

  1. The picker will be positioned relative to this element, based on the placement options available in the ColorPickerPlacement enumerable;

  2. The anchor will receive two custom events:

    • "colorpicker-color-change" when the color changes—use it to get the color.
    • "colorpicker-close" when the picker is closed—use it to clean up any state.
data-variant=warning

data-slots=text
When colors are changed during a drag action (e.g., on the color area or slider), only the final color at the end of the drag will be sent, to avoid performance issues.

The second argument is an object of type ColorPickerOptions that allows you to customize the picker with the following options:

hideColorPicker()

hideColorPicker(): Promise<void>;

This method will programmatically close the color picker.

Examples

data-variant=info

data-slots=text
Please also refer to the the Color Picker section of the Use Color how-to guide for more examples.

Basic usage

import addOnUISdk, {
  ColorPickerPlacement,
} from "https://express.adobe.com/static/add-on-sdk/sdk.js";

// Basic usage - just show color picker
addOnUISdk.app.showColorPicker(element);

// Example 1: With title, initial color and eyedropper
addOnUISdk.app.showColorPicker(element, {
  title: "Color Picker 1",
  initialColor: 0x00ff00,
  eyedropperHidesPicker: true,
});

// Example 2: With alpha channel disabled
addOnUISdk.app.showColorPicker(element, {
  title: "Color Picker 2",
  initialColor: 0xff0000,
  disableAlphaChannel: true,
});

// Example 3: With initial color only
addOnUISdk.app.showColorPicker(element, {
  title: "Color Picker 3",
  initialColor: 0x0000ff,
});

// Example 4: Basic with title
addOnUISdk.app.showColorPicker(element, {
  title: "Color Picker 4",
});

// Example 5: With title and placement
addOnUISdk.app.showColorPicker(element, {
  title: "Color Picker 5",
  placement: ColorPickerPlacement.bottom,
});

Listening to events

import addOnUISdk, {
  ColorPickerEvent,
} from "https://express.adobe.com/static/add-on-sdk/sdk.js";

addOnUISdk.ready.then(async () => {
  const colorPickerButton = document.getElementById("colorPicker");

  // Add event listeners for color picker events
  colorPickerButton.addEventListener(ColorPickerEvent.colorChange, (event) => {
    console.log("Color picker color change event from add-on:", event.detail);
  });

  colorPickerButton.addEventListener(ColorPickerEvent.close, (event) => {
    console.log("Color picker closed from add-on:", event.detail);
  });

  colorPickerButton.addEventListener("click", () => {
    addOnUISdk.app.showColorPicker(colorPickerButton, {
      title: "JS Color Picker",
      initialColor: 0x00ff00,
      placement: "bottom",
    });
  });
});

Using ReactJS

// Example of Color Picker with auto-hide after 10 seconds
<Button
  size="s"
  ref={buttonRef2}
  id="color-picker1"
  style={{ width: "200px" }}
  onClick={() => {
    addOnUISdk.app.showColorPicker(buttonRef2.current, {
      title: "Color Picker 2",
      initialColor: 0xff0000,
      disableAlphaChannel: true,
    });
    setTimeout(() => {
      console.log("Hiding Color Picker 1 after 10 seconds");
      addOnUISdk.app.hideColorPicker();
    }, 10000);
  }}
>
  Color Picker
</Button>

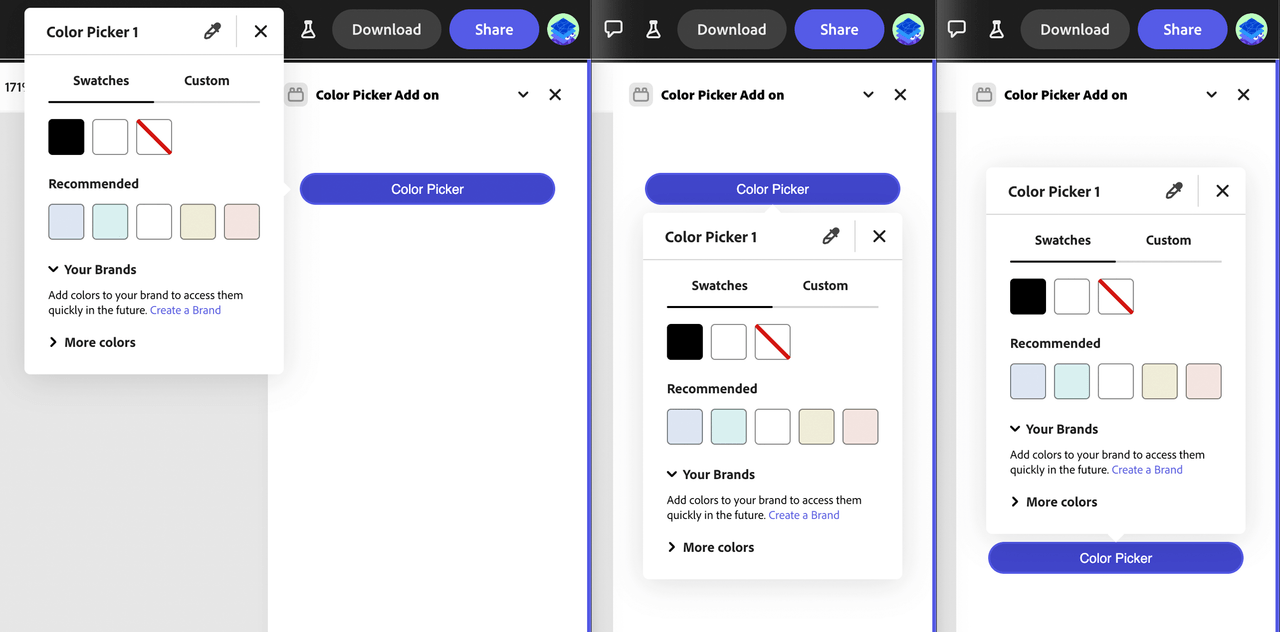

Positioning

The color picker can be positioned relative to the anchor element using the placement option in the ColorPickerOptions object. The position will be flipped (right to left or bottom to top) when there is not enough space to show the picker in the specified placement.

Color Picker Placement

Error Conditions

Invalid anchor element: must be an instance of HTMLElement.

Invalid title: must be a string.

Invalid initialColor: must be either a number in 0xRRGGBB[AA] format or a string in "#RRGGBB[AA]" format.

Invalid placement value: must be one of the valid ColorPickerPlacement values.

Invalid eyedropperHidesPicker: must be a boolean value.

Invalid disableAlphaChannel: must be a boolean value.
