Create a Markdown Parser Add-on with the Text API

Learn how to build from scratch an Adobe Express add-on capable of parsing Markdown files and converting them into rich text directly within an Adobe Express document.

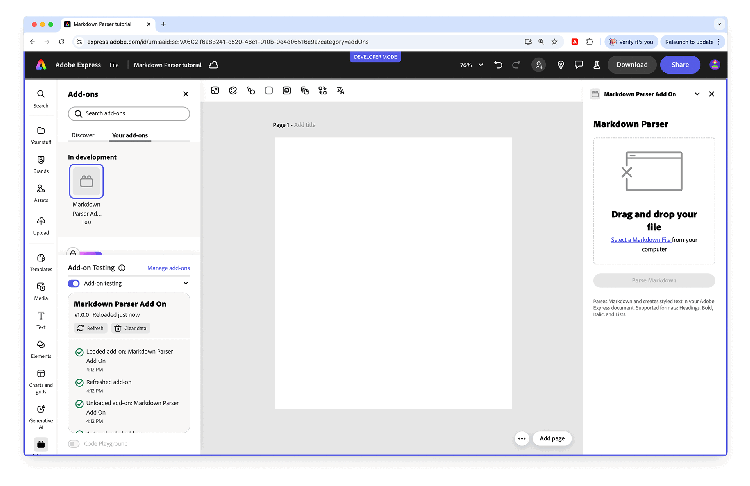

Markdown Parser complete add-on

Introduction

Welcome to this hands-on tutorial where we'll build a complete Markdown Parser add-on. It will provide a way for your users to import Markdown documents and see them instantly transformed into styled text elements inside Adobe Express, respecting formatting like headings, bold, italics, and lists.

data-variant=info

data-slots=header, text1
What's Markdown?
Markdown is a popular lightweight markup language, widely used for formatting textual content quickly and intuitively.
# Markdown sample – heading

For example, this is **bold**, _italic_ and even `monospace` text.
It can do much more!

What you'll learn

What you'll build

The add-on will feature a drag-and-drop area for uploading Markdown files and a button to parse the content. It'll read and interpret the Markdown file, and use the Text API to create and insert a Text node with the appropriate Character and Paragraph styles.

Prerequisites

Before diving into the tutorial, ensure you have:

Difficulty

This tutorial is designed for intermediate developers who are comfortable with JavaScript and the Adobe Express add-on SDK.

1. Project Setup

We'll start by setting up the foundational structure for our add-on.

1.1 Environment Setup

First, let's get your development environment ready. Download the Markdown Parser Add-on from GitHub.

The express-markdown-parser-addon-start folder follows a simple and organized structure:

.
├── package.json             📦 Project configuration
├── webpack.config.js        🔧 Build configuration
├── src
│   ├── index.html           🌐 UI container
│   ├── ui
│   │   └── index.js         💻 UI logic
│   └── sandbox
│       └── code.js          📝 Document Sandbox API logic

We'll add a few files and packages along the way, but this is the starting point, which comes from a slightly adapted CLI template.

1.2 Initial Code

The sample starts with a simple "Hello World" setup to ensure the communication bridge between the UI and the document sandbox is working.

Here is a breakdown of this initial setup:

data-slots=heading, code

data-repeat=3

data-languages=index.html, ui/index.js, sandbox/code.js

index.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0"/>
  <title>Markdown Parser add-on</title>
  <link rel="stylesheet" href="styles.css"/>
</head>

<body>
  <sp-theme scale="medium" color="light" system="express">
    <h2>Markdown Parser</h2>
    <sp-button id="helloButton">Say Hello</sp-button>
  </sp-theme>
</body>
</html>

ui/index.js

import "@spectrum-web-components/styles/typography.css";
import "@spectrum-web-components/theme/src/themes.js";
import "@spectrum-web-components/theme/theme-light.js";
import "@spectrum-web-components/theme/express/theme-light.js";
import "@spectrum-web-components/theme/express/scale-medium.js";
import "@spectrum-web-components/theme/sp-theme.js";
import "@spectrum-web-components/button/sp-button.js";

import addOnUISdk from "https://express.adobe.com/static/add-on-sdk/sdk.js";

addOnUISdk.ready.then(async () => {
  console.log("addOnUISdk is ready for use.");

  // Get the Authoring Sandbox
  const { runtime } = addOnUISdk.instance;
  const sandboxProxy = await runtime.apiProxy("documentSandbox");

  // Log the message to the console when the button is clicked
  document.getElementById("helloButton").addEventListener("click", () => {
    sandboxProxy.sayHello("from the UI");
  });
});

sandbox/code.js

import addOnSandboxSdk from "add-on-sdk-document-sandbox";
const { runtime } = addOnSandboxSdk.instance;

function start() {
  // APIs to be exposed to the UI runtime
  const sandboxApi = {
    sayHello: (message) => {
      console.log(`Hello ${message}, the sandbox is also running.`);
    },
  };
  runtime.exposeApi(sandboxApi);
}

start();

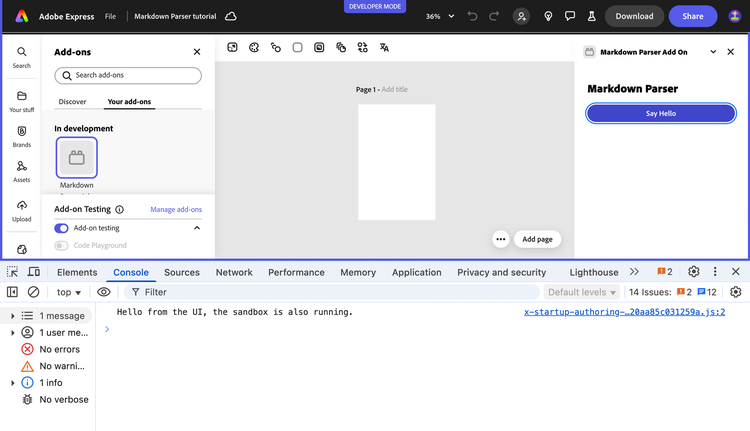

Hello World

2. Build the UI and Handle Files

Now, let's create the actual user interface for our add-on and implement the file handling logic.

2.1 Design the UI with Spectrum Web Components

We'll use Spectrum Web Components (SWC) to create a UI that feels native to Adobe Express. Our interface will have a dropzone for files, a button to trigger parsing, and a progress indicator. The project has already imported the Spectrum Theme and Button components, let's add the other ones we need.

npm install @spectrum-web-components/dropzone \
            @spectrum-web-components/illustrated-message \
            @spectrum-web-components/link \
            @spectrum-web-components/progress-circle

Update src/index.html with the following markup.

data-slots=heading, code

data-repeat=2

data-languages=index.html, styles.css

index.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0"/>
  <title>Markdown Parser add-on</title>
  <link rel="stylesheet" href="styles.css"/>
</head>

<body>
  <sp-theme scale="medium" color="light" system="express">
    <h2>Markdown Parser</h2>
    <div class="row">
      <sp-dropzone tabindex="0" id="dropzone" drop-effect="copy">
        <sp-illustrated-message id="message"
          style="--mod-illustrated-message-display: flex;"
          heading="Drag and drop your file">
          <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 150 103"
               width="150" height="103">
            <path
              d="M133.7,8.5h-118c-1.9,0-3.5,1.6-3.5,3.5v27c0,0.8,0.7,1.5,1.5,1.5s1.5-0.7,1.5-1.5V23.5h119V92c0,0.3-0.2,0.5-0.5,0.5h-118c-0.3,0-0.5-0.2-0.5-0.5V69c0-0.8-0.7-1.5-1.5-1.5s-1.5,0.7-1.5,1.5v23c0,1.9,1.6,3.5,3.5,3.5h118c1.9,0,3.5-1.6,3.5-3.5V12C137.2,10.1,135.6,8.5,133.7,8.5z M15.2,21.5V12c0-0.3,0.2-0.5,0.5-0.5h118c0.3,0,0.5,0.2,0.5,0.5v9.5H15.2z M32.6,16.5c0,0.6-0.4,1-1,1h-10c-0.6,0-1-0.4-1-1s0.4-1,1-1h10C32.2,15.5,32.6,15.9,32.6,16.5z M13.6,56.1l-8.6,8.5C4.8,65,4.4,65.1,4,65.1c-0.4,0-0.8-0.1-1.1-0.4c-0.6-0.6-0.6-1.5,0-2.1l8.6-8.5l-8.6-8.5c-0.6-0.6-0.6-1.5,0-2.1c0.6-0.6,1.5-0.6,2.1,0l8.6,8.5l8.6-8.5c0.6-0.6,1.5-0.6,2.1,0c0.6,0.6,0.6,1.5,0,2.1L15.8,54l8.6,8.5c0.6,0.6,0.6,1.5,0,2.1c-0.3,0.3-0.7,0.4-1.1,0.4c-0.4,0-0.8-0.1-1.1-0.4L13.6,56.1z">
            </path>
          </svg>
        </sp-illustrated-message>
        <div>
          <label for="file-input">
            <sp-link href="#"
              onclick="document.getElementById('file-input').click()">
              Select a Markdown File
            </sp-link>
            from your computer
          </label>
          <input type="file" id="file-input" style="display: none" />
        </div>
      </sp-dropzone>
    </div>

    <div class="row button-row">
      <sp-button id="parseButton" variant="accent" disabled>
        Parse Markdown
      </sp-button>
      <sp-progress-circle size="s" indeterminate id="progress-circle">
      </sp-progress-circle>
    </div>

    <div class="row info-text">
      <p>
        Parses Markdown and creates styled text in your Adobe Express
        document. Supported formats: Headings, Bold, Italic, and Lists.
      </p>
    </div>
  </sp-theme>
</body>
</html>

styles.css

body { margin: 0; padding: 0; overflow-x: hidden; }

sp-theme {
  margin: 0 var(--spectrum-global-dimension-static-size-300);
  display: grid;
}

h2 { font-weight: var(--spectrum-global-font-weight-black); }

sp-button { flex: 1; }

sp-dropzone { max-width: 272px; }

sp-progress-circle { margin-left: 10px; }

.row {
  display: flex; flex-direction: row; justify-content: space-between;
  width: 100%; align-items: flex-end;
}

.button-row {
  margin-top: 20px; display: flex; align-items: center;
  justify-content: center;
}

.gap-20 { gap: var(--spectrum-global-dimension-static-size-250); }

.gutter-row {
  display: flex; flex-direction: row; justify-content: flex-end;
  align-items: flex-start; border: 1px solid black; width: 100%;
  margin-bottom: var(--spectrum-global-dimension-static-size-150);
}

.info-text { margin-top: 10px; font-size: 12px; color: #6e6e6e; }

2.2 Handle File Uploads

To handle file interactions, we'll create a new file called ui/file-handler.js. This module will set up event listeners on the dropzone and the hidden file input. We'll also touch the ui/index.js file to import and pass it the sandbox proxy.

Let's walk through the file handling logic in ui/file-handler.js:

In ui/index.js, instead:

data-slots=heading, code

data-repeat=2

data-languages=JavaScript, JavaScript

ui/index.js

import "@spectrum-web-components/styles/typography.css";

import "@spectrum-web-components/theme/src/themes.js";
import "@spectrum-web-components/theme/theme-light.js";
import "@spectrum-web-components/theme/express/theme-light.js";
import "@spectrum-web-components/theme/express/scale-medium.js";
import "@spectrum-web-components/theme/sp-theme.js";

import "@spectrum-web-components/button/sp-button.js";
import "@spectrum-web-components/link/sp-link.js";
import "@spectrum-web-components/illustrated-message/sp-illustrated-message.js";
import "@spectrum-web-components/dropzone/sp-dropzone.js";
import "@spectrum-web-components/progress-circle/sp-progress-circle.js";

import addOnUISdk from "https://express.adobe.com/static/add-on-sdk/sdk.js";
import setupFileHandler from "./file-handler.js";

addOnUISdk.ready.then(async () => {
  console.log("addOnUISdk is ready for use.");

  // Get the Authoring Sandbox
  const { runtime } = addOnUISdk.instance;
  const sandboxProxy = await runtime.apiProxy("documentSandbox");

  // Pass the sandbox proxy to the file handler
  setupFileHandler(sandboxProxy); // 👈
});

ui/file-handler.js

// Sets up file handling functionality for the markdown parser add-on
export default function setupFileHandler(sandboxProxy) {
  customElements.whenDefined("sp-dropzone").then(() => {
    const dropzone = document.getElementById("dropzone");
    const parseButton = document.getElementById("parseButton");
    const message = document.getElementById("message");
    const fileInput = document.getElementById("file-input");
    const progressCircle = document.getElementById("progress-circle");
    let input;
    let beingDraggedOver = false;
    let markdownContent = null;

    // Hide progress initially
    if (progressCircle) { progressCircle.style.display = "none" }

    const isMarkdownFile = (file) => {
      return (
        file.name.toLowerCase().endsWith(".md") ||
        file.type === "text/markdown"
      );
    };

    const updateMessage = () => {
      message.heading =
        input !== undefined
          ? beingDraggedOver
            ? "Drop here to replace!"
            : "Got it!"
          : "Drag and drop your file";
    };

    const handleDropOrChange = (event) => {
      let file;

      // Handle different event sources
      if (event.type === "drop") {
        file = event.dataTransfer.files[0];
      } else if (event.type === "change") {
        file = event.target.files[0];
      } else if (event.detail && event.detail.dropEvent) {
        // Handle sp-dropzone-drop event
        file = event.detail.dropEvent.dataTransfer.files[0];
      }
      if (!file) {
        console.error("No file found in the event"); return;
      }
      if (!isMarkdownFile(file)) {
        message.heading = "Please drop a markdown (.md) file"; return;
      }

      // Set input to a temporary value to show "Got it!" immediately
      input = "loading";
      dropzone.setAttribute("filled", true);
      beingDraggedOver = false;
      updateMessage();

      const reader = new FileReader();
      reader.onload = (e) => {
        const content = e.target.result;
        input = content;
        markdownContent = content;
        console.log("Markdown content:", content);
        // Enable parse button now that we have content
        parseButton.disabled = false;
        // Ensure message is updated after content is loaded
        updateMessage();
      };
      reader.readAsText(file);
    };

    // Function to parse markdown and insert styled text
    // into the document - To be implemented later...
    const parseMarkdownAndInsert = async () => {
      if (!markdownContent) {
        console.error("No markdown content to parse"); return;
      }
      console.log("Parsing will be implemented in the next section.");
      message.heading = "Parsing not implemented yet.";
    };

    // Event listeners
    dropzone.addEventListener("dragover", (event) => {
      event.preventDefault();
      beingDraggedOver = true;
      updateMessage();
    });
    dropzone.addEventListener("dragleave", () => {
      beingDraggedOver = false;
      updateMessage();
    });
    dropzone.addEventListener("drop", (event) => {
      event.preventDefault();
      handleDropOrChange(event);
    });
    // Also listen for the Spectrum Web Component's native event
    dropzone.addEventListener("sp-dropzone-drop", (event) => {
      event.preventDefault();
      handleDropOrChange(event);
    });
    fileInput.addEventListener("change", (event) => {
      handleDropOrChange(event);
    });

    // Parse button click handler
    parseButton.addEventListener("click", parseMarkdownAndInsert);
    // Initially disable parse button until we have content
    parseButton.disabled = true;
  });
}

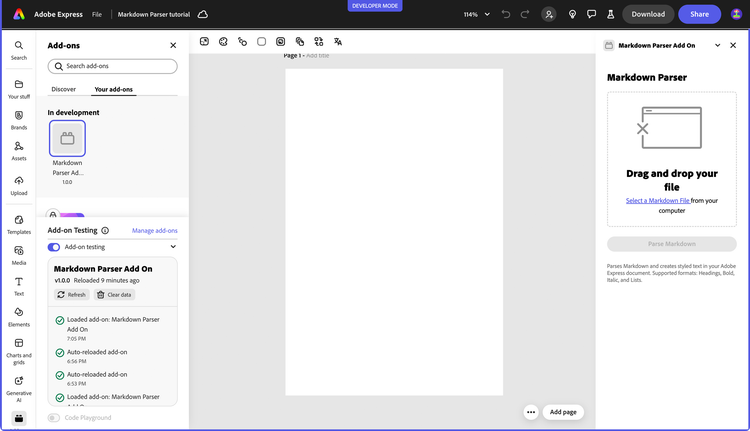

Markdown Parser UI

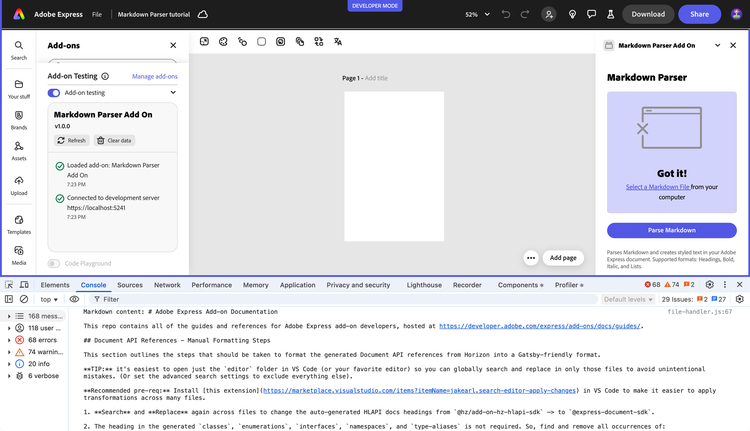

As soon as you drop a Markdown file, the UI will show "Got it!" and the Parse Markdown button will be enabled.

Markdown Parser with console text

3. Parse Markdown

The next step is to take the raw text from the uploaded file and convert it into a structured format that we can work with.

3.1 Parse Markdown into an Abstract Syntax Tree (AST)

Parsing involves analyzing a Markdown text as a string and converting it into a data structure called an Abstract Syntax Tree (AST). An AST is a tree representation, where each node denotes a construct occurring in the text.

For example, the Markdown ## Hello would be parsed into a heading node with a depth of 2, containing a text node with the value "Hello".

We will use two popular libraries for this task:

Let's install them:

npm install unified \
            remark-parse \
            remark-stringify \
            mdast-util-to-string

3.2 Implement the Parser

Now, let's create the ui/markdown-parser.js file. This module will be responsible for taking Markdown text and returning an AST.

Here's what our parser module does:

data-slots=heading, code

data-repeat=1

data-languages=JavaScript

ui/markdown-parser.js

import { unified } from "unified";
import remarkParse from "remark-parse";
import remarkStringify from "remark-stringify";
import { toString } from "mdast-util-to-string";

// Parse markdown content into an abstract syntax tree (AST)
export async function parseMarkdown(markdownContent) {
  try {
    // Create a unified processor with remark-parse
    const processor = unified().use(remarkParse);
    // Parse the markdown content into an AST
    const ast = processor.parse(markdownContent);
    // Run any transformations needed
    const result = await processor.run(ast);
    return result;
  } catch (e) {
    console.error("Error parsing markdown in markdown-parser.js:", e);
    throw e;
  }
}

// Replace multiple consecutive spaces, tabs,
// and newlines with a single space
function cleanText(text) { return text.replace(/\s+/g, " ").trim() }

// Get properly formatted text from the AST
export function getFormattedText(ast) {
  let text = "";

  // Process nodes to create proper paragraph breaks
  const processNode = (node) => {
    if (!node) return "";
    if (node.type === "root") {
      // Process each child node
      node.children.forEach((child, index) => {
        const childText = processNode(child);
        text += childText;
        // Add paragraph breaks between block elements
        if (
          index < node.children.length - 1 &&
          ["paragraph", "heading", "list"].includes(child.type)
        ) {  text += "\n\n" }
      });
      return text;
    }

    // Handle specific node types
    switch (node.type) {
      case "paragraph": return cleanText(toString(node));
      case "heading":   return cleanText(toString(node));
      case "list":
        let listText = "";
        node.children.forEach((item, index) => {
          // const marker = node.ordered ? `${index + 1}. ` : "• ";
          const itemText = cleanText(toString(item));
          // listText += marker + itemText;
          listText += itemText;
          if (index < node.children.length - 1) { listText += "\n" }
        });
        return listText;
      default:
        // For other node types, just return the text
        return cleanText(toString(node));
    }
  };
  return processNode(ast);
}

// Convert AST back to markdown string (for testing/debugging)
export async function astToMarkdown(ast) {
  try {
    const processor = unified().use(remarkStringify);
    const result = processor.stringify(ast);
    return result;
  } catch (e) {
    console.error("Error converting AST to markdown:", e);
    throw e;
  }
}

// Extract plain text from the AST
export function extractTextFromAst(ast) { return toString(ast) }

// Process markdown by parsing to AST + transforming for Adobe Express
export async function processMarkdown(markdownContent) {

  const ast = await parseMarkdown(markdownContent);
  // Extract all headings for potential TOC
  const headings = [];
  const processNode = (node) => {
    if (node.type === "heading") {
      headings.push({
        depth: node.depth, text: toString(node),
        children: node.children
      });
    }
    if (node.children) { node.children.forEach(processNode) }
  }
  processNode(ast);

  // Get both formatted text (with proper paragraphs) and raw text
  const formattedText = getFormattedText(ast);

  return { ast, headings, plainText: formattedText, formattedText }
}

3.3 Connect the Parser

Now that we have a module capable of turning Markdown text into an Abstract Syntax Tree (AST), let's connect it to our UI. This will serve as a great checkpoint to verify that our file reading and parsing logic are working correctly before we move on to styling.

First, import the parseMarkdown function at the top of src/ui/file-handler.js; next, update the placeholder parseMarkdownAndInsert function with a new logic to call the parser and log the result to the console.

data-slots=heading, code

data-repeat=1

data-languages=JavaScript

ui/file-handler.js

import { parseMarkdown } from "./markdown-parser.js";     // 👈

export default function setupFileHandler(sandboxProxy) {
  customElements.whenDefined("sp-dropzone").then(() => {

    // 👆 (keep the rest of the file the same) 👆

    const parseMarkdownAndInsert = async () => {
      if (!markdownContent) {
        console.error("No markdown content to parse");
        return;
      }
      try {
        progressCircle.style.display = "block";
        message.heading = "Processing markdown...";
        parseButton.disabled = true;

        // 1. Parse the markdown to get the AST           // 👈
        const ast = await parseMarkdown(markdownContent); // 👈
        console.log("Parsed Markdown AST:", ast);         // 👈

        message.heading = "AST logged to console!";
      } catch (error) {
        console.error("Error during parsing:", error);
        message.heading = "Error parsing markdown";
      } finally {
        progressCircle.style.display = "none";
        parseButton.disabled = false;
      }
    };

    // 👇 (keep the rest of the file the same) 👇

  });
}

Now, when you run the add-on, upload a Markdown file, and click "Parse Markdown", you should see the structured AST object in your browser's developer console. This confirms that the core parsing mechanism is working perfectly.

Markdown Parser with console AST output

4. Integrate with the Adobe Express Text API

With our Markdown parsed into an AST, the final and most exciting part is to render it as styled text in the Adobe Express document.

4.1 Convert the AST into Styled Text for Adobe Express

Our overall strategy is as follows:

  1. Extract Plain Text: First, we'll convert the entire AST into a single string of plain text, using our getFormattedText function.
  2. Generate Style Ranges: We'll traverse the AST again. For each node that requires styling (like a heading, strong, or emphasis node), we'll record its type of style and its start and end position in the plain text string.
  3. Communicate with Sandbox: We'll send the plain text and the array of style ranges to our document sandbox.
  4. Apply Styles in Sandbox: The sandbox code will create a single TextNode with the plain text. Then, it will iterate through the style ranges and apply the corresponding character or paragraph styles using the Text API.

4.2 The Formatter: Generating Style Ranges

The new ui/adobe-express-formatter.js module is responsible for the second step: traversing the AST and generating style ranges.

This formatter's goal is to map the AST structure to a list of styling instructions that Adobe Express can understand.

data-slots=heading, code

data-repeat=1

data-languages=JavaScript

ui/adobe-express-formatter.js

import { getFormattedText, extractTextFromAst } from "./markdown-parser.js";

// Creates a mapping of text ranges and their styling commands for Adobe Express
function processNodeForStyling(ast, styleRanges) {
  let offset = 0;

  const traverse = (node) => {
    if (!node) return;

    const startOffset = offset;
    // Helper function to process styled nodes with common pattern
    const processStyledNode = (node, styleType, styleProps = {}) => {
      const rangeStart = offset;
      node.children.forEach(traverse);
      const rangeEnd = offset;

      styleRanges.push({
        start: rangeStart,  end: rangeEnd,
        style: { type: styleType, ...styleProps },
      });
    };

    switch (node.type) {
      case "root":
        node.children.forEach((child, index) => {
          traverse(child);
          if (
            index < node.children.length - 1 &&
            ["paragraph", "heading", "list"].includes(child.type)
          ) {
            offset += 2; // \n\n between blocks
          }
        });
        break;

      case "paragraph":
        node.children.forEach(traverse);
        break;
      case "heading":
        processStyledNode(node, "heading", { level: node.depth });
        break;
      case "text":
        offset += node.value.length;
        break;
      case "emphasis":
        processStyledNode(node, "emphasis", { italic: true });
        break;
      case "strong":
        processStyledNode(node, "strong", { bold: true });
        break;

      // example AST traversal logic for lists:
      case "list":
        const listStart = offset;
        node.children.forEach((item, index) => {
          item.children.forEach(traverse);
          // newline between items
          if (index < node.children.length - 1) offset += 1;
        });
        styleRanges.push({
          start: listStart, end: offset,
          style: { type: "list", ordered: node.ordered },
        });
        break;
      case "inlineCode":
        offset += node.value.length;
        styleRanges.push({
          start: startOffset, end: offset,
          style: { type: "code", isInline: true },
        });
        break;
      default:
        if (node.children) node.children.forEach(traverse);
        break;
    }
  };
  traverse(ast);
}

// Create Adobe Express text styling instructions from a markdown AST
export function createExpressStylingFromAST(ast) {
  // Extract the full text from the AST
  const plainText = getFormattedText(ast);
  const styleRanges = [];
  // Process the AST to generate style ranges
  processNodeForStyling(ast, styleRanges, plainText);
  return { plainText, styleRanges }
}

// Helper function to print out style ranges for debugging
export function debugStyleRanges(text, styleRanges) {
  console.log("---- Style Ranges Debug ----");
  styleRanges.forEach((range, index) => {
    const snippet = text.substring(range.start, range.end);
    console.log(
      `Range ${index}: ${range.start}-${range.end} (${range.style.type})`
    );
    console.log(`Text: "${snippet}"`);
    console.log("Style:", range.style);
    console.log("-----");
  });
}

// Helper function to apply Adobe Express text styling
export async function applyExpressTextStyling(sandboxProxy, text, styleRanges) {
  try {
    // First create a text node with the plain text
    const textNode = await sandboxProxy.createTextNode(text);

    // Then apply styling to the text node
    for (const range of styleRanges) {
      switch (range.style.type) {
        case "heading":
          await sandboxProxy.applyHeadingStyle(
            textNode, range.start, range.end, range.style.level
          );
          break;
        case "emphasis":
          await sandboxProxy.applyTextStyle(
            textNode, range.start, range.end, { italic: true }
          );
          break;
        case "strong":
          await sandboxProxy.applyTextStyle(
            textNode, range.start, range.end, { bold: true }
          );
          break;
        case "link":
          await sandboxProxy.applyLinkStyle(
            textNode, range.start, range.end, range.style.url
          );
          break;
        // You can add cases for other styles here...
      }
    }
    return textNode;
  } catch (error) {
    console.error("Error applying Express text styling:", error);
    throw error;
  }
}

4.3 The Sandbox: Apply the Styles

Now, let's implement the final piece in sandbox/code.js. This script will receive the text and style ranges and use the Text API to perform the magic. We'll also define our styling rules in sandbox/constants.js which allows to easily change the visual output (fonts, sizes, spacing) of the parsed Markdown without having to search through the application logic.

This sandbox/code.js is where the visual transformation happens. Here are the key points:

data-slots=heading, code

data-repeat=2

data-languages=JavaScript

sandbox/constants.js

export const MD_CONSTANTS = {
  FONTS: {
    HEADING: "SourceSans3-Bold",
    EMPHASIS: "SourceSans3-It",
    STRONG: "SourceSans3-Bold",
    CODE: "AnonymousPro",
    REGULAR: "SourceSans3-Regular",
  },
  HEADING_SIZES: {
    1: 24, 2: 22, 3: 20, 4: 18, 5: 16, 6: 16, DEFAULT: 16
  },
  LAYOUT: {
    MARGIN: 20,
    DEFAULT_FONT_SIZE: 16,
    LINE_SPACING: 1.5,
    PARAGRAPH_SPACE_AFTER: 8,
  },
  DEBUG: false,
};

sandbox/code.js

import addOnSandboxSdk from "add-on-sdk-document-sandbox";
import { editor, fonts, constants } from "express-document-sdk";
import { MD_CONSTANTS } from "./constants.js";

const { runtime } = addOnSandboxSdk.instance;
const DEBUG_STYLES = MD_CONSTANTS.DEBUG;

// Returns the font size for a specific markdown heading level
function getFontSizeForHeadingLevel(level) {
  return (
    MD_CONSTANTS.HEADING_SIZES[level] ||
    MD_CONSTANTS.HEADING_SIZES.DEFAULT
  );
}

// Initializes the document sandbox functionality
function start() {
  // Cache loaded fonts to avoid reloading them
  const fontCache = new Map();

  // Preloads and caches fonts by their postscript names
  async function preloadFonts(postscriptNames) {
    await Promise.all(
      postscriptNames.map(async (psName) => {
        const font = await fonts.fromPostscriptName(psName);
        if (font) { fontCache.set(psName, font) }
        else { console.warn(`Font ${psName} couldn't be loaded.`) }
      })
    );
  }

  // APIs to be exposed to the UI runtime
  const docApi = {
    // Creates a text node in the current document
    createTextNode: (text) => {
      try {
        // Find the current page
        let currentNode = editor.context.insertionParent;
        let page = null;
        while (currentNode) {
          if (currentNode.type === "Page") {
            page = currentNode; break;
          }
          currentNode = currentNode.parent;
        }

        // Create a new text node
        const textNode = editor.createText(text);
        console.log("textNode created", text);

        // Set the text content
        textNode.textAlignment = constants.TextAlignment.left;
        const artboard = page.artboards.first;
        textNode.layout = {
          type: constants.TextLayout.autoHeight,
          width: artboard.width - MD_CONSTANTS.LAYOUT.MARGIN_WIDTH,
        };
        console.log("textNode layout", textNode.layout);

        // Position the text at the top-left corner and fill the page width
        textNode.setPositionInParent(
          { x: MD_CONSTANTS.LAYOUT.MARGIN, y: MD_CONSTANTS.LAYOUT.MARGIN },
          { x: 0, y: 0 }
        );

        console.log("textNode setPositionInParent");

        // Apply default character styles
        textNode.fullContent.applyCharacterStyles({
          fontSize: MD_CONSTANTS.LAYOUT.DEFAULT_FONT_SIZE,
        });
        console.log("textNode applyCharacterStyles");

        // Add to document
        artboard.children.append(textNode);
        console.log("textNode added to the artboard", textNode);
        return textNode;

      } catch (error) {
        console.error("Error creating text node:", error);
        throw error;
      }
    },

    // Creates a styled text node from markdown content
    createStyledTextFromMarkdown: async (markdownText, styleRanges) => {
      try {
        // Create text node first (this is allowed synchronously)
        const textNode = docApi.createTextNode(markdownText);

        // Preload fonts we'll need for styling
        await preloadFonts([
          MD_STYLES.FONTS.HEADING, MD_STYLES.FONTS.EMPHASIS,
          MD_STYLES.FONTS.REGULAR, MD_STYLES.FONTS.CODE,
        ]);

        // Get cached fonts
        const headingFont = fontCache.get(MD_STYLES.FONTS.HEADING);
        const italicFont = fontCache.get(MD_STYLES.FONTS.EMPHASIS);
        const boldFont = fontCache.get(MD_STYLES.FONTS.STRONG);
        const monospaceFont = fontCache.get(MD_STYLES.FONTS.CODE);

        // Now queue all style edits together for better performance
        await editor.queueAsyncEdit(async () => {
          for (const range of styleRanges) {
            if (DEBUG_STYLES) {
              console.log(`Applying ${range.style.type} style:`, range);
            }
            // Apply different styles based on the type
            if (range.style.type === "list") {
              docApi.applyListStyle(
                textNode, range.start, range.end, range.style.ordered
              );
            } else if (range.style.type === "heading") {
              if (DEBUG_STYLES) {
                console.log(
                  "Applying heading style for level:", range.style.level
                );
              }
              // Apply heading styles
              textNode.fullContent.applyCharacterStyles(
                {
                  font: headingFont,
                  fontSize: getFontSizeForHeadingLevel(range.style.level),
                },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied heading style:", range.style.level);
              }
            } else if (range.style.type === "emphasis") {
              if (DEBUG_STYLES) {
                console.log("Applying emphasis style");
              }
              // Apply italic style
              textNode.fullContent.applyCharacterStyles(
                { font: italicFont },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied emphasis style");
              }
            } else if (range.style.type === "strong") {
              if (DEBUG_STYLES) {
                console.log("Applying strong style");
              }
              // Apply bold style
              textNode.fullContent.applyCharacterStyles(
                { font: boldFont },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied strong style");
              }
            } else if (range.style.type === "code") {
              if (DEBUG_STYLES) {
                console.log("Applying code style");
              }
              // Apply monospace font for code
              textNode.fullContent.applyCharacterStyles(
                { font: monospaceFont },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied code style");
              }
            }
            // Add any additional styles here...
          }
          console.log("All styles applied");
        });
      } catch (error) {
        console.error("Error creating styled text from markdown:", error);
        throw error;
      }
    },

    // Applies ordered or unordered list styles to a text range
    applyListStyle: (textNode, start, end, ordered) => {
      try {
        const listType = ordered
          ? constants.ParagraphListType.ordered
          : constants.ParagraphListType.unordered;

        textNode.fullContent.applyParagraphStyles(
          {
            list: {
              type: listType,
              numbering: ordered
                ? constants.OrderedListNumbering.numeric
                : undefined,
              prefix: ordered
                ? MD_STYLES.LIST.ORDERED_PREFIX
                : MD_STYLES.LIST.UNORDERED_PREFIX,
              postfix: ordered
                ? MD_STYLES.LIST.ORDERED_POSTFIX
                : MD_STYLES.LIST.UNORDERED_POSTFIX,
              indentLevel: MD_STYLES.LIST.DEFAULT_INDENT,
            },
            spaceBefore: MD_STYLES.LAYOUT.PARAGRAPH_SPACE_BEFORE,
            spaceAfter: MD_STYLES.LAYOUT.PARAGRAPH_SPACE_AFTER,
            lineSpacing: MD_STYLES.LAYOUT.LINE_SPACING,
          },
          { start, length: end - start }
        );
      } catch (error) {
        console.error("Error applying list style:", error);
        throw error;
      }
    },
  };
  runtime.exposeApi(docApi);
}
start();

4.4 Put it all together

We have all the pieces in place: the file handler, the parser, the formatter, and the sandbox styler. Now let's connect them all.

First, add the necessary imports to the top of src/ui/file-handler.js. Then, update the parseMarkdownAndInsert function for the final time. This version will no longer just log the AST, but will call the formatter and the sandbox to render the styled text in the document.

This final change connects all the pieces of our application:

data-slots=heading, code

data-repeat=1

data-languages=JavaScript

ui/file-handler.js

import { parseMarkdown } from "./markdown-parser.js";
import {                                                  // 👈
  createExpressStylingFromAST                             // 👈
} from "./adobe-express-formatter.js";                    // 👈

export default function setupFileHandler(sandboxProxy) {
  customElements.whenDefined("sp-dropzone").then(() => {

    // 👆 (keep the rest of the file the same) 👆

    const parseMarkdownAndInsert = async () => {
      if (!markdownContent) {
        console.error("No markdown content to parse");
        return;
      }

      try {
        progressCircle.style.display = "block";
        message.heading = "Processing markdown...";
        parseButton.disabled = true;

        // 1. Parse the markdown to get the AST
        const ast = await parseMarkdown(markdownContent);

        // 2. Create styling instructions from the AST     // 👈
        const { plainText, styleRanges } =                 // 👈
          createExpressStylingFromAST(ast);                // 👈

        // 3. Send the text and styles to the sandbox      // 👈
        message.heading = "Adding text to document...";    // 👈
        await sandboxProxy.createStyledTextFromMarkdown(   // 👈
          plainText, styleRanges                           // 👈
        );                                                 // 👈

        message.heading = "Markdown successfully added!";
      } catch (error) {
        console.error("Error during parsing and styling:", error);
        message.heading = "An error occurred";
      } finally {
        progressCircle.style.display = "none";
        parseButton.disabled = false;
      }
    };

    // 👇 (keep the rest of the file the same) 👇

  });
}

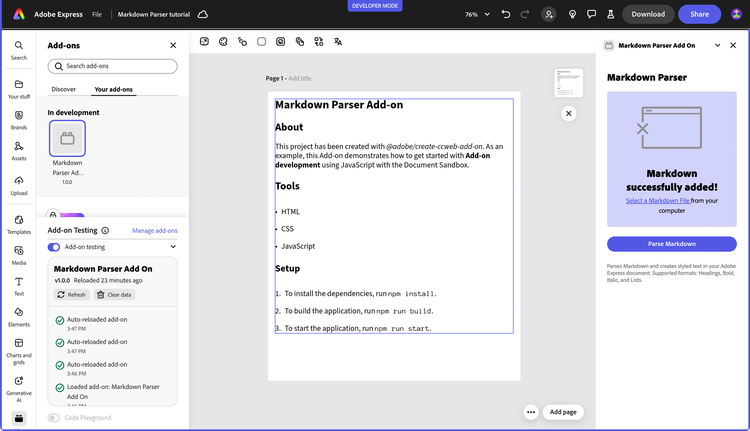

Markdown Parser with Text API

5. Conclusion

Congratulations! You have successfully built a functional Markdown Parser add-on for Adobe Express. You've learned how to:

This project serves as a strong foundation. You can extend it by supporting more Markdown features like tables, blockquotes, or even custom styling options for your users. Happy coding!

5.1 Final code

You can find the final code for this tutorial in the GitHub add-on samples repository; there are two folders:

data-slots=heading, code

data-repeat=8

data-languages=index.html, styles.css, index.js, file-handler.js, markdown-parser.js, adobe-express-formatter.js, code.js, constants.js

iframe

<!-- index.html -->

 <!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0"/>
  <title>Markdown Parser add-on</title>
  <link rel="stylesheet" href="styles.css"/>
</head>

<body>
  <sp-theme scale="medium" color="light" system="express">
    <h2>Markdown Parser</h2>
    <div class="row">
      <sp-dropzone tabindex="0" id="dropzone" drop-effect="copy">
        <sp-illustrated-message id="message"
          style="--mod-illustrated-message-display: flex;"
          heading="Drag and drop your file">
          <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 150 103"
               width="150" height="103">
            <path
              d="M133.7,8.5h-118c-1.9,0-3.5,1.6-3.5,3.5v27c0,0.8,0.7,1.5,1.5,1.5s1.5-0.7,1.5-1.5V23.5h119V92c0,0.3-0.2,0.5-0.5,0.5h-118c-0.3,0-0.5-0.2-0.5-0.5V69c0-0.8-0.7-1.5-1.5-1.5s-1.5,0.7-1.5,1.5v23c0,1.9,1.6,3.5,3.5,3.5h118c1.9,0,3.5-1.6,3.5-3.5V12C137.2,10.1,135.6,8.5,133.7,8.5z M15.2,21.5V12c0-0.3,0.2-0.5,0.5-0.5h118c0.3,0,0.5,0.2,0.5,0.5v9.5H15.2z M32.6,16.5c0,0.6-0.4,1-1,1h-10c-0.6,0-1-0.4-1-1s0.4-1,1-1h10C32.2,15.5,32.6,15.9,32.6,16.5z M13.6,56.1l-8.6,8.5C4.8,65,4.4,65.1,4,65.1c-0.4,0-0.8-0.1-1.1-0.4c-0.6-0.6-0.6-1.5,0-2.1l8.6-8.5l-8.6-8.5c-0.6-0.6-0.6-1.5,0-2.1c0.6-0.6,1.5-0.6,2.1,0l8.6,8.5l8.6-8.5c0.6-0.6,1.5-0.6,2.1,0c0.6,0.6,0.6,1.5,0,2.1L15.8,54l8.6,8.5c0.6,0.6,0.6,1.5,0,2.1c-0.3,0.3-0.7,0.4-1.1,0.4c-0.4,0-0.8-0.1-1.1-0.4L13.6,56.1z">
            </path>
          </svg>
        </sp-illustrated-message>
        <div>
          <label for="file-input">
            <sp-link href="#"
              onclick="document.getElementById('file-input').click()">
              Select a Markdown File
            </sp-link>
            from your computer
          </label>
          <input type="file" id="file-input" style="display: none" />
        </div>
      </sp-dropzone>
    </div>

    <div class="row button-row">
      <sp-button id="parseButton" variant="accent" disabled>
        Parse Markdown
      </sp-button>
      <sp-progress-circle size="s" indeterminate id="progress-circle">
      </sp-progress-circle>
    </div>

    <div class="row info-text">
      <p>
        Parses Markdown and creates styled text in your Adobe Express
        document. Supported formats: Headings, Bold, Italic, and Lists.
      </p>
    </div>
  </sp-theme>
</body>
</html>

iframe

/* styles.css */
body { margin: 0; padding: 0; overflow-x: hidden; }

sp-theme {
  margin: 0 var(--spectrum-global-dimension-static-size-300);
  display: grid;
}

h2 { font-weight: var(--spectrum-global-font-weight-black); }

sp-button { flex: 1; }

sp-dropzone { max-width: 272px; }

sp-progress-circle { margin-left: 10px; }

.row {
  display: flex; flex-direction: row; justify-content: space-between;
  width: 100%; align-items: flex-end;
}

.button-row {
  margin-top: 20px; display: flex; align-items: center;
  justify-content: center;
}

.gap-20 { gap: var(--spectrum-global-dimension-static-size-250); }

.gutter-row {
  display: flex; flex-direction: row; justify-content: flex-end;
  align-items: flex-start; border: 1px solid black; width: 100%;
  margin-bottom: var(--spectrum-global-dimension-static-size-150);
}

.info-text { margin-top: 10px; font-size: 12px; color: #6e6e6e; }

iframe

// ui/index.js

import "@spectrum-web-components/styles/typography.css";

import "@spectrum-web-components/theme/src/themes.js";
import "@spectrum-web-components/theme/theme-light.js";
import "@spectrum-web-components/theme/express/theme-light.js";
import "@spectrum-web-components/theme/express/scale-medium.js";
import "@spectrum-web-components/theme/sp-theme.js";

import "@spectrum-web-components/button/sp-button.js";
import "@spectrum-web-components/link/sp-link.js";
import "@spectrum-web-components/illustrated-message/sp-illustrated-message.js";
import "@spectrum-web-components/dropzone/sp-dropzone.js";
import "@spectrum-web-components/progress-circle/sp-progress-circle.js";

import addOnUISdk from "https://express.adobe.com/static/add-on-sdk/sdk.js";
import setupFileHandler from "./file-handler.js";

addOnUISdk.ready.then(async () => {
  console.log("addOnUISdk is ready for use.");

  // Get the Authoring Sandbox
  const { runtime } = addOnUISdk.instance;
  const sandboxProxy = await runtime.apiProxy("documentSandbox");
  setupFileHandler(sandboxProxy);
});

iframe

// ui/file-handler.js

import { parseMarkdown } from "./markdown-parser.js"; // Already there
import { createExpressStylingFromAST } from "./adobe-express-formatter.js";

export default function setupFileHandler(sandboxProxy) {
  customElements.whenDefined("sp-dropzone").then(() => {
    const dropzone = document.getElementById("dropzone");
    const parseButton = document.getElementById("parseButton");
    const message = document.getElementById("message");
    const fileInput = document.getElementById("file-input");
    const progressCircle = document.getElementById("progress-circle");
    let input;
    let beingDraggedOver = false;
    let markdownContent = null;

    // Hide progress initially
    if (progressCircle) { progressCircle.style.display = "none" }

    const isMarkdownFile = (file) => {
      return (
        file.name.toLowerCase().endsWith(".md") ||
        file.type === "text/markdown"
      );
    };

    const updateMessage = () => {
      message.heading =
        input !== undefined
          ? beingDraggedOver
            ? "Drop here to replace!"
            : "Got it!"
          : "Drag and drop your file";
    };

    const handleDropOrChange = (event) => {
      let file;

      // Handle different event sources
      if (event.type === "drop") {
        file = event.dataTransfer.files[0];
      } else if (event.type === "change") {
        file = event.target.files[0];
      } else if (event.detail && event.detail.dropEvent) {
        // Handle sp-dropzone-drop event
        file = event.detail.dropEvent.dataTransfer.files[0];
      }
      if (!file) {
        console.error("No file found in the event"); return;
      }
      if (!isMarkdownFile(file)) {
        message.heading = "Please drop a markdown (.md) file"; return;
      }

      // Set input to a temporary value to show "Got it!" immediately
      input = "loading";
      dropzone.setAttribute("filled", true);
      beingDraggedOver = false;
      updateMessage();

      const reader = new FileReader();
      reader.onload = (e) => {
        const content = e.target.result;
        input = content;
        markdownContent = content;
        console.log("Markdown content:", content);
        // Enable parse button now that we have content
        parseButton.disabled = false;
        // Ensure message is updated after content is loaded
        updateMessage();
      };
      reader.readAsText(file);
    };

    const parseMarkdownAndInsert = async () => {
      if (!markdownContent) {
        console.error("No markdown content to parse");
        return;
      }

      try {
        progressCircle.style.display = "block";
        message.heading = "Processing markdown...";
        parseButton.disabled = true;

        // 1. Parse the markdown to get the AST
        const ast = await parseMarkdown(markdownContent);

        // 2. Create styling instructions from the AST
        const {
          plainText, styleRanges
        } = createExpressStylingFromAST(ast);
        // 3. Send the text and styles to the sandbox
        message.heading = "Adding text to document...";
        await sandboxProxy.createStyledTextFromMarkdown(
          plainText, styleRanges
        );

        message.heading = "Markdown successfully added!";
      } catch (error) {
        console.error("Error during parsing and styling:", error);
        message.heading = "An error occurred";
      } finally {
        progressCircle.style.display = "none";
        parseButton.disabled = false;
      }
    };

    // Event listeners
    dropzone.addEventListener("dragover", (event) => {
      event.preventDefault();
      beingDraggedOver = true;
      updateMessage();
    });
    dropzone.addEventListener("dragleave", () => {
      beingDraggedOver = false;
      updateMessage();
    });
    dropzone.addEventListener("drop", (event) => {
      event.preventDefault();
      handleDropOrChange(event);
    });
    // Also listen for the Spectrum Web Component's native event
    dropzone.addEventListener("sp-dropzone-drop", (event) => {
      event.preventDefault();
      handleDropOrChange(event);
    });
    fileInput.addEventListener("change", (event) => {
      handleDropOrChange(event);
    });

    // Parse button click handler
    parseButton.addEventListener("click", parseMarkdownAndInsert);
    // Initially disable parse button until we have content
    parseButton.disabled = true;
  });
}

iframe

// ui/markdown-parser.js

import { unified } from "unified";
import remarkParse from "remark-parse";
import remarkStringify from "remark-stringify";
import { toString } from "mdast-util-to-string";

// Parse markdown content into an abstract syntax tree (AST)
export async function parseMarkdown(markdownContent) {
  try {
    // Create a unified processor with remark-parse
    const processor = unified().use(remarkParse);
    // Parse the markdown content into an AST
    const ast = processor.parse(markdownContent);
    // Run any transformations needed
    const result = await processor.run(ast);
    return result;
  } catch (e) {
    console.error("Error parsing markdown in markdown-parser.js:", e);
    throw e;
  }
}

// Replace multiple consecutive spaces, tabs,
// and newlines with a single space
function cleanText(text) { return text.replace(/\s+/g, " ").trim() }

// Get properly formatted text from the AST
export function getFormattedText(ast) {
  let text = "";

  // Process nodes to create proper paragraph breaks
  const processNode = (node) => {
    if (!node) return "";
    if (node.type === "root") {
      // Process each child node
      node.children.forEach((child, index) => {
        const childText = processNode(child);
        text += childText;
        // Add paragraph breaks between block elements
        if (
          index < node.children.length - 1 &&
          ["paragraph", "heading", "list"].includes(child.type)
        ) {  text += "\n\n" }
      });
      return text;
    }

    // Handle specific node types
    switch (node.type) {
      case "paragraph": return cleanText(toString(node));
      case "heading":   return cleanText(toString(node));
      case "list":
        let listText = "";
        node.children.forEach((item, index) => {
          // const marker = node.ordered ? `${index + 1}. ` : "• ";
          const itemText = cleanText(toString(item));
          // listText += marker + itemText;
          listText += itemText;
          if (index < node.children.length - 1) { listText += "\n" }
        });
        return listText;
      default:
        // For other node types, just return the text
        return cleanText(toString(node));
    }
  };
  return processNode(ast);
}

// Convert AST back to markdown string (for testing/debugging)
export async function astToMarkdown(ast) {
  try {
    const processor = unified().use(remarkStringify);
    const result = processor.stringify(ast);
    return result;
  } catch (e) {
    console.error("Error converting AST to markdown:", e);
    throw e;
  }
}

// Extract plain text from the AST
export function extractTextFromAst(ast) { return toString(ast) }

// Process markdown by parsing to AST + transforming for Adobe Express
export async function processMarkdown(markdownContent) {

  const ast = await parseMarkdown(markdownContent);
  // Extract all headings for potential TOC
  const headings = [];
  const processNode = (node) => {
    if (node.type === "heading") {
      headings.push({
        depth: node.depth, text: toString(node),
        children: node.children
      });
    }
    if (node.children) { node.children.forEach(processNode) }
  }
  processNode(ast);

  // Get both formatted text (with proper paragraphs) and raw text
  const formattedText = getFormattedText(ast);

  return { ast, headings, plainText: formattedText, formattedText }
}

iframe

// ui/adobe-express-formatter.js

import { getFormattedText, extractTextFromAst } from "./markdown-parser.js";

// Creates a mapping of text ranges and their styling commands for Adobe Express
function processNodeForStyling(ast, styleRanges) {
  let offset = 0;

  const traverse = (node) => {
    if (!node) return;

    const startOffset = offset;
    // Helper function to process styled nodes with common pattern
    const processStyledNode = (node, styleType, styleProps = {}) => {
      const rangeStart = offset;
      node.children.forEach(traverse);
      const rangeEnd = offset;

      styleRanges.push({
        start: rangeStart,
        end: rangeEnd,
        style: { type: styleType, ...styleProps },
      });
    };

    switch (node.type) {
      case "root":
        node.children.forEach((child, index) => {
          traverse(child);
          if (
            index < node.children.length - 1 &&
            ["paragraph", "heading", "list"].includes(child.type)
          ) {
            offset += 2; // \n\n between blocks
          }
        });
        break;

      case "paragraph":
        node.children.forEach(traverse);
        break;

      case "heading":
        processStyledNode(node, "heading", { level: node.depth });
        break;

      case "text":
        offset += node.value.length;
        break;

      case "emphasis":
        processStyledNode(node, "emphasis", { italic: true });
        break;

      case "strong":
        processStyledNode(node, "strong", { bold: true });
        break;

      // example AST traversal logic for lists:
      case "list":
        const listStart = offset;
        node.children.forEach((item, index) => {
          item.children.forEach(traverse);
          if (index < node.children.length - 1) offset += 1; // newline between items
        });

        styleRanges.push({
          start: listStart,
          end: offset,
          style: { type: "list", ordered: node.ordered },
        });
        break;

      case "inlineCode":
        offset += node.value.length;
        styleRanges.push({
          start: startOffset,
          end: offset,
          style: { type: "code", isInline: true },
        });
        break;

      default:
        if (node.children) node.children.forEach(traverse);
        break;
    }
  };
  traverse(ast);
}

// Create Adobe Express text styling instructions from a markdown AST
export function createExpressStylingFromAST(ast) {
  // Extract the full text from the AST
  const plainText = getFormattedText(ast);
  const styleRanges = [];

  // Process the AST to generate style ranges
  processNodeForStyling(ast, styleRanges, plainText);

  return { plainText, styleRanges };
}

// Helper function to print out style ranges for debugging
export function debugStyleRanges(text, styleRanges) {
  console.log("---- Style Ranges Debug ----");
  styleRanges.forEach((range, index) => {
    const snippet = text.substring(range.start, range.end);
    console.log(
      `Range ${index}: ${range.start}-${range.end} (${range.style.type})`
    );
    console.log(`Text: "${snippet}"`);
    console.log("Style:", range.style);
    console.log("-----");
  });
}

// Helper function to apply Adobe Express text styling
export async function applyExpressTextStyling(sandboxProxy, text, styleRanges) {
  try {
    // First create a text node with the plain text
    const textNode = await sandboxProxy.createTextNode(text);

    // Then apply styling to the text node
    for (const range of styleRanges) {
      switch (range.style.type) {
        case "heading":
          await sandboxProxy.applyHeadingStyle(
            textNode,
            range.start,
            range.end,
            range.style.level
          );
          break;

        case "emphasis":
          await sandboxProxy.applyTextStyle(textNode, range.start, range.end, {
            italic: true,
          });
          break;

        case "strong":
          await sandboxProxy.applyTextStyle(textNode, range.start, range.end, {
            bold: true,
          });
          break;

        case "link":
          await sandboxProxy.applyLinkStyle(
            textNode,
            range.start,
            range.end,
            range.style.url
          );
          break;

        // You can add cases for other styles here...
      }
    }
    return textNode;
  } catch (error) {
    console.error("Error applying Express text styling:", error);
    throw error;
  }
}

Document API

// sandbox/code.js

import addOnSandboxSdk from "add-on-sdk-document-sandbox";
import { editor, fonts, constants } from "express-document-sdk";
import { MD_CONSTANTS } from "./constants.js";

const { runtime } = addOnSandboxSdk.instance;
const DEBUG_STYLES = MD_CONSTANTS.DEBUG;

// Returns the font size for a specific markdown heading level
function getFontSizeForHeadingLevel(level) {
  return (
    MD_CONSTANTS.HEADING_SIZES[level] || MD_CONSTANTS.HEADING_SIZES.DEFAULT
  );
}

// Initializes the document sandbox functionality
function start() {
  // Cache loaded fonts to avoid reloading them
  const fontCache = new Map();

  // Preloads and caches fonts by their postscript names
  async function preloadFonts(postscriptNames) {
    await Promise.all(
      postscriptNames.map(async (psName) => {
        const font = await fonts.fromPostscriptName(psName);
        if (font) {
          fontCache.set(psName, font);
        } else {
          console.warn(`Font ${psName} couldn't be loaded.`);
        }
      })
    );
  }

  // APIs to be exposed to the UI runtime
  const docApi = {
    // Creates a text node in the current document
    createTextNode: (text) => {
      try {
        // Find the current page
        let currentNode = editor.context.insertionParent;
        let page = null;
        while (currentNode) {
          if (currentNode.type === "Page") {
            page = currentNode;
            break;
          }
          currentNode = currentNode.parent;
        }

        // Create a new text node
        const textNode = editor.createText(text);
        console.log("textNode created", text);

        // Set the text content
        textNode.textAlignment = constants.TextAlignment.left;
        const artboard = page.artboards.first;
        console.log(
          "constants.TextLayout.autoHeight",
          constants.TextLayout.autoHeight
        );
        textNode.layout = {
          type: constants.TextLayout.autoHeight,
          width: artboard.width - MD_CONSTANTS.LAYOUT.MARGIN_WIDTH,
        };
        console.log("textNode layout", textNode.layout);

        // Position the text at the top-left corner and fill the page width
        textNode.setPositionInParent(
          { x: MD_CONSTANTS.LAYOUT.MARGIN, y: MD_CONSTANTS.LAYOUT.MARGIN },
          { x: 0, y: 0 }
        );

        console.log("textNode setPositionInParent");

        // Apply default character styles
        textNode.fullContent.applyCharacterStyles({
          fontSize: MD_CONSTANTS.LAYOUT.DEFAULT_FONT_SIZE,
        });
        console.log("textNode applyCharacterStyles");

        // Add to document
        artboard.children.append(textNode);
        console.log("textNode added to the artboard", textNode);
        return textNode;
      } catch (error) {
        console.error("Error creating text node:", error);
        throw error;
      }
    },

    // Creates a styled text node from markdown content
    createStyledTextFromMarkdown: async (markdownText, styleRanges) => {
      try {
        // Create text node first (this is allowed synchronously)
        const textNode = docApi.createTextNode(markdownText);

        // Preload fonts we'll need for styling
        await preloadFonts([
          MD_CONSTANTS.FONTS.HEADING,
          MD_CONSTANTS.FONTS.EMPHASIS,
          MD_CONSTANTS.FONTS.REGULAR,
          MD_CONSTANTS.FONTS.CODE,
        ]);

        // Get cached fonts
        const headingFont = fontCache.get(MD_CONSTANTS.FONTS.HEADING);
        const italicFont = fontCache.get(MD_CONSTANTS.FONTS.EMPHASIS);
        const boldFont = fontCache.get(MD_CONSTANTS.FONTS.STRONG);
        const monospaceFont = fontCache.get(MD_CONSTANTS.FONTS.CODE);

        // Now queue all style edits together for better performance
        await editor.queueAsyncEdit(async () => {
          for (const range of styleRanges) {
            if (DEBUG_STYLES) {
              console.log(`Applying ${range.style.type} style:`, range);
            }
            // Apply different styles based on the type
            if (range.style.type === "list") {
              docApi.applyListStyle(
                textNode,
                range.start,
                range.end,
                range.style.ordered
              );
            } else if (range.style.type === "heading") {
              if (DEBUG_STYLES) {
                console.log(
                  "Applying heading style for level:",
                  range.style.level
                );
              }
              // Apply heading styles
              textNode.fullContent.applyCharacterStyles(
                {
                  font: headingFont,
                  fontSize: getFontSizeForHeadingLevel(range.style.level),
                },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied heading style:", range.style.level);
              }
            } else if (range.style.type === "emphasis") {
              if (DEBUG_STYLES) {
                console.log("Applying emphasis style");
              }
              // Apply italic style
              textNode.fullContent.applyCharacterStyles(
                { font: italicFont },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied emphasis style");
              }
            } else if (range.style.type === "strong") {
              if (DEBUG_STYLES) {
                console.log("Applying strong style");
              }
              // Apply bold style
              textNode.fullContent.applyCharacterStyles(
                { font: boldFont },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied strong style");
              }
            } else if (range.style.type === "code") {
              if (DEBUG_STYLES) {
                console.log("Applying code style");
              }
              // Apply monospace font for code
              textNode.fullContent.applyCharacterStyles(
                { font: monospaceFont },
                { start: range.start, length: range.end - range.start }
              );
              if (DEBUG_STYLES) {
                console.log("Applied code style");
              }
            }
            // Add any additional styles here...
          }
          console.log("All styles applied");
        });
      } catch (error) {
        console.error("Error creating styled text from markdown:", error);
        throw error;
      }
    },

    // Applies ordered or unordered list styles to a text range
    applyListStyle: (textNode, start, end, ordered) => {
      try {
        const listType = ordered
          ? constants.ParagraphListType.ordered
          : constants.ParagraphListType.unordered;

        textNode.fullContent.applyParagraphStyles(
          {
            list: {
              type: listType,
              numbering: ordered
                ? constants.OrderedListNumbering.numeric
                : undefined,
              prefix: ordered
                ? MD_CONSTANTS.LIST.ORDERED_PREFIX
                : MD_CONSTANTS.LIST.UNORDERED_PREFIX,
              postfix: ordered
                ? MD_CONSTANTS.LIST.ORDERED_POSTFIX
                : MD_CONSTANTS.LIST.UNORDERED_POSTFIX,
              indentLevel: MD_CONSTANTS.LIST.DEFAULT_INDENT,
            },
            spaceBefore: MD_CONSTANTS.LAYOUT.PARAGRAPH_SPACE_BEFORE,
            spaceAfter: MD_CONSTANTS.LAYOUT.PARAGRAPH_SPACE_AFTER,
            lineSpacing: MD_CONSTANTS.LAYOUT.LINE_SPACING,
          },
          { start, length: end - start }
        );
      } catch (error) {
        console.error("Error applying list style:", error);
        throw error;
      }
    },
  };
  runtime.exposeApi(docApi);
}
start();

Document API

// sandbox/constants.js

export const MD_CONSTANTS = {
  // Font settings
  FONTS: {
    HEADING: "SourceSans3-Bold",
    EMPHASIS: "SourceSans3-It",
    STRONG: "SourceSans3-Bold",
    CODE: "AnonymousPro",
    REGULAR: "SourceSans3-Regular",
  },

  // Font sizes for different heading levels
  HEADING_SIZES: {
    1: 24,
    2: 22,
    3: 20,
    4: 18,
    5: 16,
    6: 16,
    DEFAULT: 16,
  },

  // Text layout settings
  LAYOUT: {
    MARGIN: 20,
    DEFAULT_FONT_SIZE: 16,
    LINE_SPACING: 1.5,
    PARAGRAPH_SPACE_BEFORE: 8,
    PARAGRAPH_SPACE_AFTER: 4,
    MARGIN_WIDTH: 40,
  },

  // List styling
  LIST: {
    UNORDERED_PREFIX: "•",
    ORDERED_PREFIX: "",
    ORDERED_POSTFIX: ".",
    UNORDERED_POSTFIX: "",
    DEFAULT_INDENT: 0,
  },

  // Debug mode
  DEBUG: false,
};

5.2 Next steps

If you want to learn more about Text API you can check the Text How-to, which contains several examples on how to apply Character and Paragraph styles, as well as using fonts and colors.
