Setting up the Marketo Observability Data Stream

These instructions describe how to set up and get started using Adobe I/O Events to subscribe to Marketo Observability events.

Introduction

The Marketo Observability Data Stream (MODS) provides insights about the data flow into Marketo through the Data Ingestion Service. The stream offers several different event types:

Metrics - Periodic aggregated metrics showing all data sent to the API and processed into Marketo
Results - Per API request results for tracking and verification
Status - Periodic notices providing insight into the remaining API quota and any request processing backlog

Note: MODS (Marketo Observability Data Stream) is currently a Beta Product

Prerequisite Setup

The following are required to be able to subscribe to the data stream:

Marketo Engage subscription that is IMS-enabled
Marketo Engage subscription provisioned with a Performance Tier or CET package
Developer or admin account in the Experience Cloud

Getting Started with Adobe I/O

See the Adobe I/O Events Docs

Basic instructions for this use case, starting from the developer console:

When prompted, click the designated button to proceed

Select Create new project

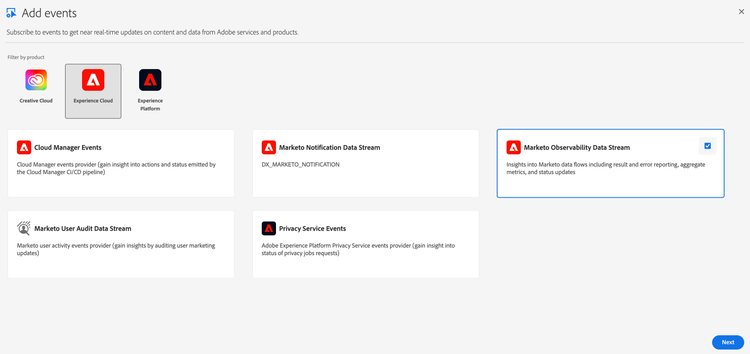

Select Add event
Filter by Experience Cloud
Select Marketo Observability Data Stream

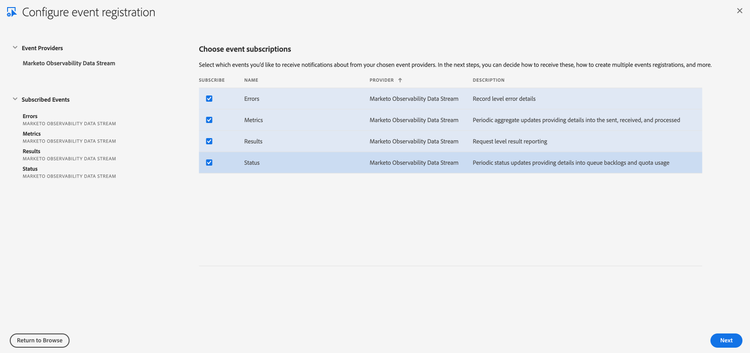

Subscribe to observability events that you're interested in

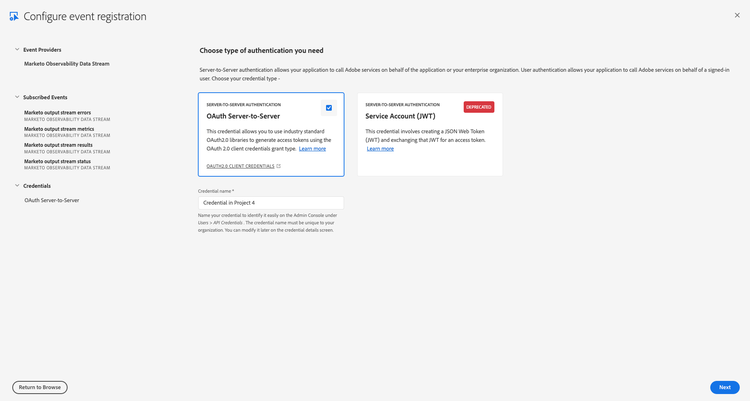

Set up authentication (OAuth Server-to-Server) to be used for accessing the Journaling API

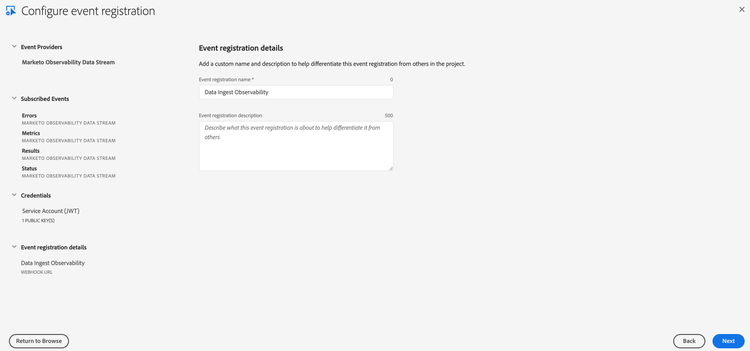

Set the name and description for your event registration

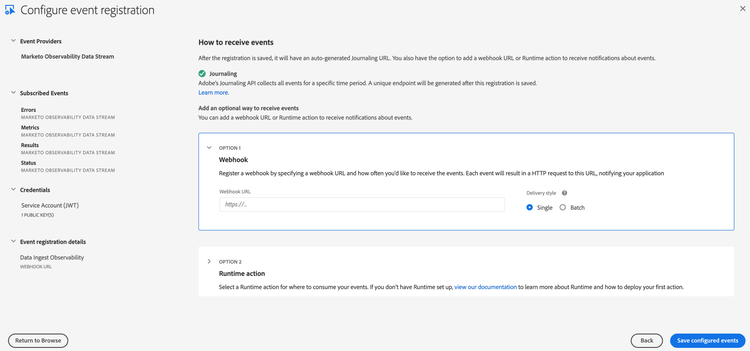

Finish Event Registration Setup
- Provide a name and description for this event subscription
- Optionally choose whether to enable Webhook or Runtime action
  - Enable Webhook
    - We recommend batch over single webhooks
    - For Webhook URL a public https endpoint must be provided
    - The endpoint must be able to handle get and post requests
    - The get request must respond with the challenge query if it exists
    - The post request must respond that it received the message or the webhook will re-attempt to send several times before giving up and automatically disabling the webhook sends
  - Enable Runtime action
    - Getting Started with Adobe I/O Runtime
    - Runtime Actions as Webhook
After Saving
- Verify that the Status is Active
- If Webhook was selected, verify that it successfully passed the challenge without errors

Developer Guidelines

When setting up a project to subscribe to events, there are three ways to interact with those event subscriptions in order to receive the events. The first is Journaling, which provides a pull model in which events can be pulled via API and stores up to 7 days of past events. The second is Webhooks, which can be configured to send events either as single events or batched to a webhook endpoint in near real-time with the event occurrence. Third is Runtime, where you can set up your own custom function within Adobe that events will automatically run through near-real time.

Journaling

Getting Started with Journaling

Important Takeaways:

Stores up to 7 days of history
Can be iterated through from any previous event within the history
Will still receive and store events even if webhook is failing
Useful for fetching events that were missed due to webhook issues or for a pulling mechanism instead of webhook push

Webhooks

Getting Started with Adobe I/O Events Webhooks

Webhook Endpoint Requirements:

Handle GET and POST requests
Respond with a 200-type response within a reasonable time period
Challenge Request
- GET request with challenge query parameter
- Must respond with value of challenge query parameter
Webhook Events
- POST request with JSON data body with one or more events
- Recommended to set up webhook as batch

Event Data Structure Examples

Events are structured in JSON format using the CloudEvents spec

Metrics

{
    "id": "b90382d8-6b23-11ee-b962-0242ac120002",
    "specversion": "1.0",
    "type": "com.adobe.platform.marketo.observability.metrics",
    "source": "urn:data_ingestion_service",
    "time": "2023-08-14T18:00:00Z",
    "datacontenttype": "application/json",
    "data": {
        "munchkinId": "123-ABC-456",
        "windowStart": "2023-08-14T17:00:00Z",
        "requests": {
            "received": 3,
            "processed": 1,
            "rejected": {
                "606": 1,
                "607": 1
            }
        },
        "records": {
            "person": {
                "high": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                },
                "normal": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                }
            },
            "customObject": {
                "high": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                },
                "normal": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                }
            }
        }
    }
}
Copied to your clipboard
{
    "id": "b90382d8-6b23-11ee-b962-0242ac120002",
    "specversion": "1.0",
    "type": "com.adobe.platform.marketo.observability.metrics",
    "source": "urn:data_ingestion_service",
    "time": "2023-08-14T18:00:00Z",
    "datacontenttype": "application/json",
    "data": {
        "munchkinId": "123-ABC-456",
        "windowStart": "2023-08-14T17:00:00Z",
        "requests": {
            "received": 3,
            "processed": 1,
            "rejected": {
                "606": 1,
                "607": 1
            }
        },
        "records": {
            "person": {
                "high": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                },
                "normal": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                }
            },
            "customObject": {
                "high": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                },
                "normal": {
                    "received": 100,
                    "created": 90,
                    "updated": 5,
                    "failed": {
                        "503": 5
                    }
                }
            }
        }
    }
}

Results

Result events contain an array of processed requests indicating what was processed. These may be complete or partial results depending on the size of the request payload. Request payloads are processed in chunks, and if a request is split into multiple chunks, the processing results could potentially be reported across multiple events.

{
    "id": "b90382d8-6b23-11ee-b962-0242ac120002",
    "specversion": "1.0",
    "type": "com.adobe.platform.marketo.observability.results",
    "source": "urn:data_ingestion_service",
    "time": "2023-08-14T17:30:00Z",
    "datacontenttype": "application/json",
    "data": {
        "munchkinId": "123-ABC-456",
        "requests": [
            {
                "requestId": "cf0a1a20-668e-492a-8ec2-ce8747507068",
                "requestTime": "2023-08-14T17:20:00Z",
                "clientId": "foo@marketo.com",
                "correlationId": "6180bb48-8dc7-4fc5-85ca-a59dd1edb0f3",
                "requestSource": "Adobe Journey Optimizer",
                "objectType": "person",
                "priority": "high",
                "records": {
                    "received": 100,
                    "created": 90,
                    "updated": 10,
                    "failed": {}
                }
            },
            {
                "requestId": "67b28858-f5ee-45ac-aa40-63a04085e6be",
                "requestTime": "2023-08-14T17:20:00Z",
                "clientId": "foo@marketo.com",
                "correlationId": "6180bb48-8dc7-4fc5-85ca-a59dd1edb0f3",
                "requestSource": "Public API",
                "objectType": "customObject",
                "priority": "normal",
                "records": {
                    "received": 100,
                    "created": 10,
                    "updated": 10,
                    "failed": {
                        "503": 10,
                        "404": 10
                    }
                }
            }
        ]
    }
}
Copied to your clipboard
{
    "id": "b90382d8-6b23-11ee-b962-0242ac120002",
    "specversion": "1.0",
    "type": "com.adobe.platform.marketo.observability.results",
    "source": "urn:data_ingestion_service",
    "time": "2023-08-14T17:30:00Z",
    "datacontenttype": "application/json",
    "data": {
        "munchkinId": "123-ABC-456",
        "requests": [
            {
                "requestId": "cf0a1a20-668e-492a-8ec2-ce8747507068",
                "requestTime": "2023-08-14T17:20:00Z",
                "clientId": "foo@marketo.com",
                "correlationId": "6180bb48-8dc7-4fc5-85ca-a59dd1edb0f3",
                "requestSource": "Adobe Journey Optimizer",
                "objectType": "person",
                "priority": "high",
                "records": {
                    "received": 100,
                    "created": 90,
                    "updated": 10,
                    "failed": {}
                }
            },
            {
                "requestId": "67b28858-f5ee-45ac-aa40-63a04085e6be",
                "requestTime": "2023-08-14T17:20:00Z",
                "clientId": "foo@marketo.com",
                "correlationId": "6180bb48-8dc7-4fc5-85ca-a59dd1edb0f3",
                "requestSource": "Public API",
                "objectType": "customObject",
                "priority": "normal",
                "records": {
                    "received": 100,
                    "created": 10,
                    "updated": 10,
                    "failed": {
                        "503": 10,
                        "404": 10
                    }
                }
            }
        ]
    }
}

Status

{
    "id": "b90382d8-6b23-11ee-b962-0242ac120002",
    "specversion": "1.0",
    "type": "com.adobe.platform.marketo.observability.status",
    "source": "urn:data_ingestion_service",
    "time": "2023-08-14T18:00:00Z",
    "datacontenttype": "application/json",
    "data": {
        "munchkinId": "123-ABC-456",
        "quota": 65432100,
        "queue": {
            "high": {
                "lagSeconds": 15,
                "requestBacklog": 1,
                "recordBacklog": 100
            },
            "normal": {
                "lagSeconds": 135,
                "requestBacklog": 10,
                "recordBacklog": 1000
            }
        },
    }
}
Copied to your clipboard
{
    "id": "b90382d8-6b23-11ee-b962-0242ac120002",
    "specversion": "1.0",
    "type": "com.adobe.platform.marketo.observability.status",
    "source": "urn:data_ingestion_service",
    "time": "2023-08-14T18:00:00Z",
    "datacontenttype": "application/json",
    "data": {
        "munchkinId": "123-ABC-456",
        "quota": 65432100,
        "queue": {
            "high": {
                "lagSeconds": 15,
                "requestBacklog": 1,
                "recordBacklog": 100
            },
            "normal": {
                "lagSeconds": 135,
                "requestBacklog": 10,
                "recordBacklog": 1000
            }
        },
    }
}

Data Field Definitions

Field	Description
id	Unique UUID generated per event
specversion	CloudEvents version specification being used
type	Type of event used for event subscription routing
source	Context in which an event happened
time	Timestamp of the completion of the action
datacontenttype	Content type of the data object
data	Event data object
munchkinId	Internal Marketo subscription identifier
clientId	Marketo API User Id or Adobe IMS Client Id
correlationId	An id representation of where the request originated from (empty if from public API)
origin	Name representation of the correlationId component
objectType	Marketo object type that's being processed (account, custom object, person, etc.)
priority	Priority of the request (high or normal)
received	Count of requests/records received to the Data Ingest Service
created	Count of records created from processing the requests to the Data Ingest Service
updated	Count of records updated from processing the requests to the Data Ingest Service
failed	Count of records failed while processing the requests to the Data Ingest Service broken down by error code
rejected	Count of requests rejected (never accepted by the Data Ingest Service) by error code
quota	Remaining daily quota for the Data Ingest Service
queue	Stats of the processing queue backlog
lagSeconds	Difference between now and the oldest message in the processing queue
requestBacklog	Number of requests in the processing queue
recordBacklog	Number of records in the processing queue
recipient_client_id	Auto generated by IO Events, can be used for security checks
event_id	Auto generated by IO Events, it matches the x-adobe-event-id header

Debug

Debug Tracing

Once you have successfully completed your setup and event subscription registration, events should start being stored in the journal. In addition, if you have webhooks or runtime set up, the events will go through those flows. From the project's page in the event registration details, you should see a tab for Debug Tracing. For webhooks, this will show a record of failed and successful challenge attempts as well as webhook attempts. Each request includes the request/response details to help debug.

There is also an Event Browser tab which lets you manually look at events in the Journal from the Developer Console UI
