Asset Events Actions

Overview

Asset Events are initiated by actions, which are operations (create, update, move, etc.) made on the resources of assets. You can determine which action has been made on which resource by looking at certain Asset Events properties.

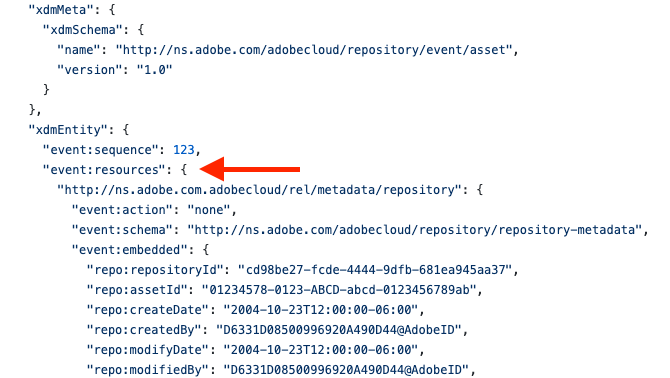

1. The event:resources object contains the Resource Change objects, which describe resources that have been impacted by an action. Resources are identified by their associated link relations.



2. One of the Resource Change objects always represents the Repository Metadata Resource, given that this resource is required to be embedded in the event (i.e., as the value of event:embedded). This is the case even if the Repository Metadata Resource wasn't affected by the action that triggered the event. (The value of event:action indicates in what way a resource was affected, or if it was affected at all. The possible values for this property are none, updated, created, and deleted.)



3. Below is an example of a Resource Change object that signals a resource has been affected by an action. (In this case, the Primary Resource has been updated.)

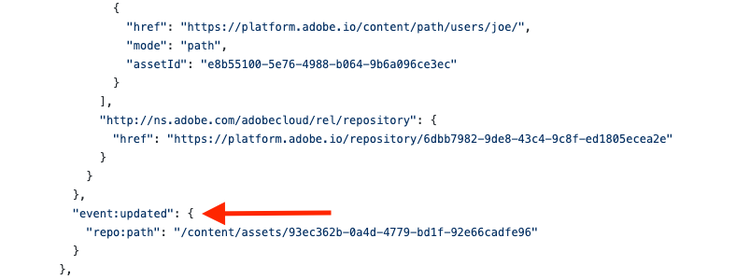

4. When an asset has been moved, discarded, or restored, the event:updated property will be present in the Resource Change object that represents the Repository Metadata Resource. The value of this property is an object that, depending on the action, contains one or more of the following properties:

   • repo:path: the previous path of the Primary Resource of the asset
     • Note: This property is only present when the asset has been moved.
   • storage:region: the previous storage region of the asset
     • Note: This property is only present when the asset has been moved into a different region.
   • repo:state: the previous state of the asset
     • Note: This property is only present when the asset has been either discarded or restored.



Actions by Asset Type

This section is organized by asset type (files/directories and composites), and is intended to help you recognize, via an Asset Event object, how an asset's resources has been affected by a given action. Each subsection contains an abbreviated Asset Event object, so that you can more easily view the relevant properties.

Files/Directories

Created

An event is triggered by the creation of a file/directory. In event:resources, the Primary Resource is listed as created.

• Note: If the Repository Metadata Resource did not exist prior to the creation of the file/directory, this Resource will be listed as created. If the asset is versioned, the Versions Resource will be listed as created.

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "created"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "created"
        },
        "version-history": {
          "event:action": "created"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "created"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "created"
        },
        "version-history": {
          "event:action": "created"
        }
      }
    }
  }
}

Updated

An event is triggered by an update to a file/directory that did not involve copying or moving the file/directory (e.g., updating an image). In event:resources, both the Repository Metadata Resource and the Primary Resource are listed as updated.

• Note: If the asset is versioned, the Versions Resource will be listed as updated.

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        },
        "version-history": {
          "event:action": "updated"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        },
        "version-history": {
          "event:action": "updated"
        }
      }
    }
  }
}

Copied

Two separate Events are triggered by copying a file/directory (i.e., duplicating it at a specified target location):

• An event for the creation of the copy
• An event for the update of the copy's parent directory

Event for the Creation of the Copy

In event:resources, the Repository Metadata Resource is listed as created.

• Note: The event may list more resources as created, depending on the resources available at the source asset

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "created"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "created"
        }
      }
    }
  }
}

Event for the Update of the Parent Directory

In event:resources, the Primary Resource is listed as updated.

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        }
      }
    }
  }
}

Moved

Three separate events are triggered by moving a file/directory (i.e., changing the path of the asset):

• An event for the moving of the asset
• An event for the update of the source parent directory (i.e., the asset's previous parent directory)
• An event for the update of the target parent directory (i.e., the asset's new parent directory)

Event for the Moving of the Asset

In event:resources, the Repository Metadata Resource is listed as updated.

The event:updated object contains two properties that describe the source location of the moved asset.

• The value of repo:path is the previous path of the Primary Resource of the asset.
• The value of storage:region is the previous storage region of the asset. (storage:region is present only if the asset has moved to a different region.)

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated",
          "event:updated": {
            "repo:path": "<the previous path of the Primary Resource of the asset>",
            "storage:region": "<the previous storage region (if the asset was moved to a different region)>"
          }
        }
      }
    }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated",
          "event:updated": {
            "repo:path": "<the previous path of the Primary Resource of the asset>",
            "storage:region": "<the previous storage region (if the asset was moved to a different region)>"
          }
        }
      }
    }
    }
  }
}

Event for the Update of the Parent Directory (Source and Target)

In event:resources, the Primary Resource is listed as updated.

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        }
      }
    }
  }
}

Discarded

An Event is triggered by discarding a file/directory. In event:resources, the Repository Metadata Resource is listed as updated. The value of repo:state in event:updated is the previous state of the asset. (The current state is DISCARDED.)

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated",
          "event:embedded": {
            "repo:state": "DISCARDED"
          },
          "event:updated": {
            "repo:state": "ACTIVE"
          }
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated",
          "event:embedded": {
            "repo:state": "DISCARDED"
          },
          "event:updated": {
            "repo:state": "ACTIVE"
          }
        }
      }
    }
  }
}

Restored

An Event is triggered by restoring a file/directory. In event:resources, the Repository Metadata Resource is listed as updated. The value of repo:state in event:updated is the previous state of the asset. (The current state is ACTIVE.)

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated",
          "event:embedded": {
            "repo:state": "ACTIVE"
          },
          "event:updated": {
            "repo:state": "DISCARDED"
          }
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "updated",
          "event:embedded": {
            "repo:state": "ACTIVE"
          },
          "event:updated": {
            "repo:state": "DISCARDED"
          }
        }
      }
    }
  }
}

Deleted

Two separate Events are triggered by the deletion of a file/directory:

• An event for the deleted asset
• An event for the update of the parent directory of the deleted asset

Event for the Deleted Asset

In event:resources, both the Repository Metadata Resource and the Primary Resource are listed as deleted.

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "deleted"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "deleted"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "deleted"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "deleted"
        }
      }
    }
  }
}

Event for the Update of the Parent Directory

In event:resources, the Primary Resource is listed as updated.

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        }
      }
    }
  }
}

Created/Updated Embedded Metadata Resource

An Event is triggered by the creation or update of a file's/directory's Embedded Metadata Resource. In event:resources, the Embedded Metadata Resource is listed as updated.

• Note: This resource is automatically created when the Primary Resource is created. In this case, the value of event:action is still updated.

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/embedded": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com/adobecloud/rel/metadata/embedded": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/metadata/repository": {
          "event:action": "none"
        }
      }
    }
  }
}

Composites

A Composite differs from a regular Files in that it a) has a Manifest Resource which is closely coupled with—but not the same as—its Primary Resource and b) has any number of Component Resources which can be created/updated without an immediate update to the Primary/Manifest. These differences make it necessary to include some additional data in the created/updated Events for Composites.

Created Manifest

An Event is triggered by the upload of a Manifest Resource to a Composite. In event:resources, the Repository Metadata Resource is listed as updated. The following resources are listed as created:

• Primary
• Manifest
• Embedded Metadata
• Versions
• Rendition

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com.adobecloud/rel/metadata/repository": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "created"
        },
        "http://ns.adobe.com.adobecloud/rel/manifest": {
          "event:action": "created"
        },
        "http://ns.adobe.com/adobecloud/rel/metadata/embedded": {
          "event:action": "created"
        },
        "version-history": {
          "event:action": "created"
        },
        "http://ns.adobe.com/adobecloud/rel/rendition": {
          "event:action": "created"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com.adobecloud/rel/metadata/repository": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "created"
        },
        "http://ns.adobe.com.adobecloud/rel/manifest": {
          "event:action": "created"
        },
        "http://ns.adobe.com/adobecloud/rel/metadata/embedded": {
          "event:action": "created"
        },
        "version-history": {
          "event:action": "created"
        },
        "http://ns.adobe.com/adobecloud/rel/rendition": {
          "event:action": "created"
        }
      }
    }
  }
}

Updated Manifest

An Event is triggered by the update of the Manifest Resource of a Composite. In event:resources, the following resources are listed as updated:

• Repository Metadata
• Primary
• Manifest
• Embedded Metadata
• Versions
• Rendition

Copy
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com.adobecloud/rel/metadata/repository": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        },
        "http://ns.adobe.com.adobecloud/rel/manifest": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/metadata/embedded": {
          "event:action": "updated"
        },
        "version-history": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/rendition": {
          "event:action": "updated"
        }
      }
    }
  }
}
Copied to your clipboard
{
  "data": {
    "xdmEntity": {
      "event:resources": {
        "http://ns.adobe.com.adobecloud/rel/metadata/repository": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/primary": {
          "event:action": "updated"
        },
        "http://ns.adobe.com.adobecloud/rel/manifest": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/metadata/embedded": {
          "event:action": "updated"
        },
        "version-history": {
          "event:action": "updated"
        },
        "http://ns.adobe.com/adobecloud/rel/rendition": {
          "event:action": "updated"
        }
      }
    }
  }
}

Last updated 11/11/2021
