Personalization

You can retrieve personalized content from Adobe personalization solutions, including Adobe Target, Adobe Journey Optimizer, and Offer Decisioning.

You can also get same-page and next-page personalization capabilities through personalization destinations, such as Adobe Target and the custom personalization connection. To learn how to configure Experience Platform for same-page and next-page personalization, see the dedicated guide.

When using the Edge Network API, you must integrate the response provided by the personalization engine with the logic used to render content. Unlike the Web SDK, this API cannot automatically apply content returned by personalization solutions.

Terminology

Before working with Adobe personalization solutions, make sure to understand the following concepts:

Offer: A marketing message that can have rules associated with it that specify who is eligible to see the offer.
Decision: Informs the selection of an offer. Previously known as an offer activity.
Schema: Informs the type of offer returned based on a decision.
Scope: The scope of the decision.
- In Adobe Target, the scope is equivalent to the mbox. The global mbox is the __view__ scope
- For Offer Decisioning, scopes are the Base64-encoded strings of JSON containing the activity and placement IDs that you want the offer decisioning service to use to propose offers.

The `query` object

Retrieving personalized content requires an explicit request query object for a request example. The query object has the following format:

{
  "query": {
    "personalization": {
      "schemas": [
        "https://ns.adobe.com/personalization/html-content-item",
        "https://ns.adobe.com/personalization/json-content-item",
        "https://ns.adobe.com/personalization/redirect-item",
        "https://ns.adobe.com/personalization/dom-action"
      ],
      "decisionScopes": [
        "alloyStore",
        "siteWide",
        "__view__",
        "eyJhY[...]GMifQ"
      ],
      "surfaces": [
        "web://example.html/",
        "web://example.html/#sample-json-content"
      ]
    }
  }
}

Attribute

Type

Required / Optional

Description

schemas

String[]

Required for Target personalization. Optional for Offer Decisioning.

List of schemas used in the decision, to select the type of offers returned.

scopes

String[]

Optional

List of decision scopes. Maximum 30 per request.

The handle object

The personalized content retrieved from personalization solutions is presented in a personalization:decisions handle, which has the following format for its payload:

{
   "type":"personalization:decisions",
   "payload":[
      {
         "id":"AT:eyJhY[...]iMCJ9",
         "scope":"__view__",
         "scopeDetails":{
            "decisionProvider":"TGT",
            "activity":{
               "id":"131010"
            },
            "experience":{
               "id":"0"
            },
            "strategies":[
               {
                  "algorithmID":"0",
                  "trafficType":"0"
               }
            ]
         },
         "items":[
            {
               "id":"0",
               "schema":"https://ns.adobe.com/personalization/dom-action",
               "meta":{
                  "offer.name":"Default Content",
                  "experience.id":"0",
                  "activity.name":"Luma target reporting",
                  "activity.id":"131010",
                  "experience.name":"Experience A",
                  "option.id":"2",
                  "offer.id":"0"
               },
               "data":{
                  "type":"setHtml",
                  "format":"application/vnd.adobe.target.dom-action",
                  "content":"Customer Service not chrome",
                  "selector":"HTML > BODY > DIV.page-wrapper:eq(0) > FOOTER.page-footer:eq(0) > DIV.footer:eq(0) > DIV.links:eq(0) > DIV.widget:eq(0) > UL.footer:eq(0) > LI.nav:eq(1) > A:nth-of-type(1)",
                  "prehidingSelector":"HTML > BODY > DIV:nth-of-type(1) > FOOTER:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(2) > DIV:nth-of-type(1) > UL:nth-of-type(1) > LI:nth-of-type(2) > A:nth-of-type(1)"
               }
            }
         ]
      }
   ]
}

Attribute

Type

Description

payload.id

String

The decision ID.

payload.scope

String

The decision scope that resulted in the proposed offers.

payload.scopeDetails.decisionProvider

String

Set to TGT when using Adobe Target.

payload.scopeDetails.activity.id

String

The unique ID of the offer activity.

payload.scopeDetails.experience.id

String

The unique ID of the offer placement.

items[].id

String

The unique ID of the offer placement.

items[].data.id

String

The ID of the proposed offer.

items[].data.schema

String

The schema of the content associated with the proposed offer.

items[].data.format

String

The format of the content associated with the proposed offer.

items[].data.language

String

An array of languages associated with the content from the proposed offer.

items[].data.content

String

Content associated with the proposed offer in the format of a string.

items[].data.selector

String

HTML selector used to identify the target DOM element for a DOM action offer.

items[].data.prehidingSelector

String

HTML selector used to identify the DOM element to be hidden while handling a DOM action offer.

items[].data.deliveryUrl

String

Image content associated with the proposed offer in the format of a URL.

items[].data.characteristics

String

Characteristics associated with the proposed offer in the format of a JSON object.

Sample API call

              data-slots=heading, code



              data-repeat=2



              data-languages=CURL,JSON



              Request


              curl -X POST "https://edge.adobedc.net/ee/v2/interact?datastreamId={DATASTREAM_ID}" \
-H "Content-Type: application/json" \
-d '{
    "event": {
      "xdm": {
        "identityMap": {
          "email": [
            {
              "id": "user@example.com",
              "primary": true
            }
          ]
        },
        "eventType": "web.webpagedetails.pageViews",
        "web": {
          "webPageDetails": {
            "URL": "https://alloystore.dev/",
            "name": "home-demo-Home Page"
          }
        },
        "timestamp": "YYYY-08-09T14:09:20.859Z"
      }
    },
    "query": {
      "personalization": {
        "schemas": [
          "https://ns.adobe.com/personalization/html-content-item",
          "https://ns.adobe.com/personalization/json-content-item",
          "https://ns.adobe.com/personalization/redirect-item",
          "https://ns.adobe.com/personalization/dom-action"
        ],
        "decisionScopes": [
          "__view__",
          "eyJhY[...]GMifQ"
        ]
      }
    }
  }'



              Response


              {
  "requestId": "da20d11d-adac-458c-91ac-15bf4e420a15",
  "handle": [
    {
      "payload": [
        {
          "id": "AT:eyJ[...]CJ9",
          "scope": "__view__",
          "scopeDetails": {
            "decisionProvider": "TGT",
            "activity": {
              "id": "131010"
            },
            "experience": {
              "id": "0"
            },
            "strategies": [
              {
                "algorithmID": "0",
                "trafficType": "0"
              }
            ]
          },
          "items": [
            {
              "id": "0",
              "schema": "https://ns.adobe.com/personalization/dom-action",
              "meta": {
                "offer.name": "Default Content",
                "experience.id": "0",
                "activity.name": "Luma target reporting",
                "activity.id": "131010",
                "experience.name": "Experience A",
                "option.id": "2",
                "offer.id": "0"
              },
              "data": {
                "type": "setHtml",
                "format": "application/vnd.adobe.target.dom-action",
                "content": "Customer Service not chrome",
                "selector": "HTML > BODY > DIV.page-wrapper:eq(0) > FOOTER.page-footer:eq(0) > DIV.footer:eq(0) > DIV.links:eq(0) > DIV.widget:eq(0) > UL.footer:eq(0) > LI.nav:eq(1) > A:nth-of-type(1)",
                "prehidingSelector": "HTML > BODY > DIV:nth-of-type(1) > FOOTER:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(2) > DIV:nth-of-type(1) > UL:nth-of-type(1) > LI:nth-of-type(2) > A:nth-of-type(1)"
              }
            }
          ]
        }
      ],
      "type": "personalization:decisions"
    }
  ]
}



Request parameters

Parameter

Type

Required

Description

configId

String

Yes

The datastream ID.

requestId

String

Provide an external request tracing ID. If none is provided, the Edge Network will generate one for you and return it back in the response body / headers.

Response parameters

Returns a 200 OK status and one or more Handle objects, depending on the edge services that are enabled in the datastream configuration.

Notifications

Send notifications when a prefetched content or view has been visited or rendered to the end user. In order for notifications to be fired off for the right scope, make sure to keep track of the corresponding id for each scope.

Notifications with the right id for the corresponding scopes are required to be fired in order for reporting to be reflected correctly.

              data-slots=heading, code



              data-repeat=2



              data-languages=CURL,JSON



              Request


              curl -X POST "https://edge.adobedc.net/ee/v2/collect?datastreamId={DATASTREAM_ID}" \
-H "Content-Type: application/json" \
-d '{
    "events": [
      {
        "xdm": {
          "identityMap": {
            "email": [
              {
                "id": "user@example.com",
                "primary": true
              }
            ]
          },
          "eventType": "web.webpagedetails.pageViews",
          "web": {
            "webPageDetails": {
              "URL": "https://alloystore.dev/",
              "name": "home-demo-Home Page"
            }
          },
          "timestamp": "YYYY-08-09T14:09:20.859Z",
          "_experience": {
            "decisioning": {
              "propositions": [
                {
                  "id": "AT:eyJ[...]CJ9",
                  "scope": "__view__",
                  "items": [
                    {
                      "id": "0"
                    }
                  ]
                }
              ]
            }
          }
        }
      }
    ]
  }'



              Response


              {
  "requestId": "f567a988-4b3c-45a6-9ed8-f283188a445e"
}



Request parameters

Parameter

Type

Required

Description

datastreamId

String

Yes

The ID of the datastream used by the data collection endpoint.

requestId

String

External external request tracing ID. If none is provided, the Edge Network will generate one for you and return it back in the response body / headers.

silent

Boolean

Optional boolean parameter indicating whether the Edge Network should return a 204 No Content response with an empty payload. Critical errors are reported using the corresponding HTTP status code and payload.

Response parameters

A successful response returns one of the following statuses, and a requestID if none was provided in the requst.

202 Accepted when the request was successfully processed;
204 No Content when the request was successfully processed and the silent parameter was set to true;
400 Bad Request when the request was not properly formed (e.g., the mandatory primary identity was not found).

Offer Decisioning

The Edge Network API can deliver personalized experiences managed in Offer Decisioning to the web channel. It supports a non-visual interface to create, activate, and deliver your activities and personalization experiences.

Prerequisites

Personalization using Offer Decisioning requires the following:

Access to Adobe Journey Optimizer
Offer Decisioning must be enabled in the Datastream settings.

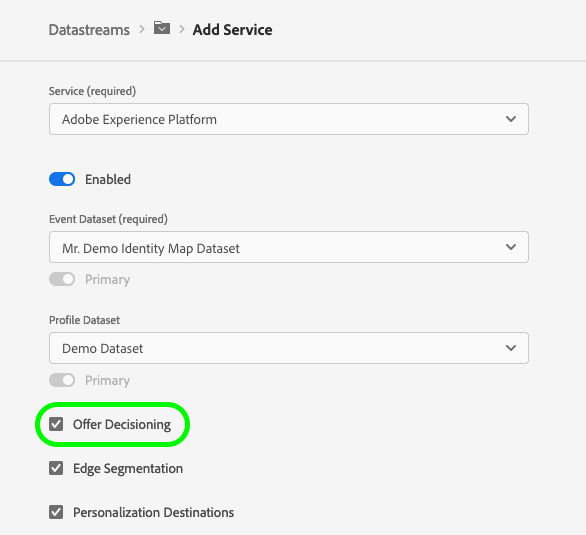

UI image showing the datastream service configuration screen, with Offer Decisioning selected

Defining decision scopes

The Offer decision engine uses Adobe Experience Platform data and Real-Time Customer profiles, along with the offer library, to deliver offers to the right customers and channels at the right time.

To learn more about the offer decisioning engine, see the dedicated documentation.

After configuring your datastream, you must define the decision scopes to be used in your personalization campaign.

Decision scopes are the Base64-encoded JSON strings containing the activity and placement IDs that you want the offer decisioning service to use when proposing offers.

Decision scope JSON

{
   "activityId":"xcore:offer-activity:11cfb1fa93381aca",
   "placementId":"xcore:offer-placement:1175009612b0100c"
}

Decision scope Base64-encoded string

"eyJhY3Rpdm[...]EwMGMifQ=="

After you have created your offers and collections, define a decision scope. Copy the Base64-encoded decision scope. It is used in the query object of the API request.

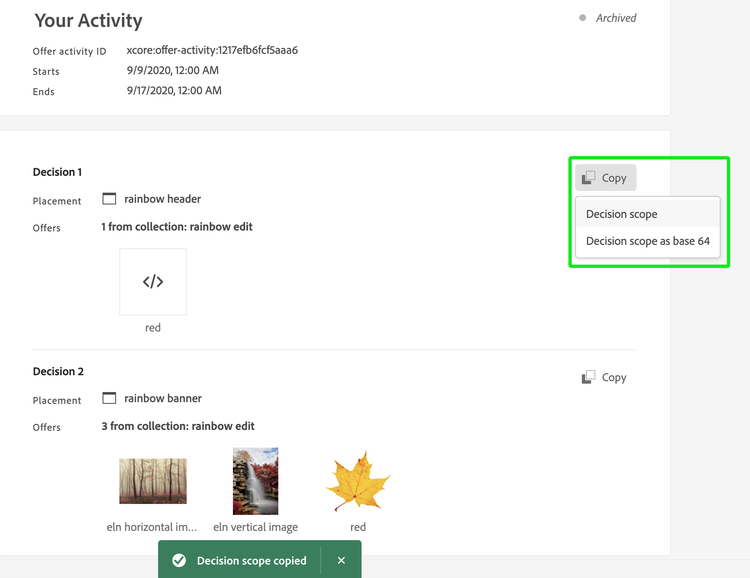

UI image showing the Offer Decisioning UI, highlighting the decision scope.

"query":{
   "personalization":{
      "decisionScopes":[
         "eyJ4ZG06YW[...]U3ZTdkYiJ9"
      ]
   }
}

Offer Decisioning example

              data-slots=heading, code



              data-repeat=2



              data-languages=CURL,JSON



              Request


              curl -X POST 'https://edge.adobedc.net/ee/v2/interact?datastreamId={DATASTREAM_ID}' \
-H 'Content-Type: application/json' \
-d '{
  "event": {
    "xdm": {
      "eventType": "web.webpagedetails.pageViews",
      "identityMap": {
        "ECID": [
          {
            "id": "05907638112924484241029082405297151763",
            "authenticatedState": "ambiguous",
            "primary": true
          }
        ]
      },
      "web": {
        "webPageDetails": {
          "URL": "https://alloystore.dev",
          "name": "Home Page"
        },
        "webReferrer": {
          "URL": ""
        }
      },
      "device": {
        "screenHeight": 1440,
        "screenWidth": 3440,
        "screenOrientation": "landscape"
      },
      "environment": {
        "type": "browser",
        "browserDetails": {
          "viewportWidth": 3440,
          "viewportHeight": 1440
        }
      },
      "placeContext": {
        "localTime": "YYYY-03-22T22:45:21.193-06:00",
        "localTimezoneOffset": 360
      },
      "timestamp": "YYYY-03-23T04:45:21.193Z",
      "implementationDetails": {
        "name": "https://ns.adobe.com/experience/alloy/reactor",
        "version": "1.0",
        "environment": "serverapi"
      }
    },
    "data": {
      "page": {
        "pageInfo": {
          "pageName": "Promotions",
          "siteSection": "Home"
        },
        "promos": {
          "heroPromos": "purse,shoes,sunglasses"
        },
        "customVariables": {
          "testGroup": "orange/black theme"
        },
        "events": {
          "homePage": true
        },
        "products": [
          {
            "productSKU": "abc123",
            "productName": "shirt"
          }
        ]
      },
      "__adobe.target": {
        "profile.eyeColor": "brown",
        "profile.hairColor": "brown"
      }
    }
  },
  "query": {
    "personalization": {
      "decisionScopes": [
        "eyJ4ZG06YW[...]U3ZTdkYiJ9"
      ]
    }
  }
}'



              Response


              {
  "requestId": "b375077d-7e1d-4c18-b7d3-e4da0fb4fbc5",
  "handle": [
    {
      "payload": [],
      "type": "personalization:decisions",
      "eventIndex": 0
    },
    {
      "payload": [
        {
          "id": "120d5db7-181c-42c5-8653-88b3cd3e1e69",
          "scope": "eyJ4ZG06YW[...]U3ZTdkYiJ9",
          "activity": {
            "id": "xcore:offer-activity:14efca8941895181",
            "etag": "1"
          },
          "placement": {
            "id": "xcore:offer-placement:12d544ae54e7e7db",
            "etag": "1"
          },
          "items": [
            {
              "id": "xcore:personalized-offer:14efc848a3577d92",
              "etag": "2",
              "schema": "https://ns.adobe.com/experience/offer-management/content-component-json",
              "data": {
                "id": "xcore:personalized-offer:14efc848a3577d92",
                "format": "application/json",
                "language": [
                  "en-us"
                ],
                "content": "{\n\t\"ODEFirstTest\" : \"Personalizaton Content\"\n}",
                "characteristics": {
                  "reporting": "testRequest"
                }
              }
            }
          ]
        }
      ],
      "type": "personalization:decisions",
      "eventIndex": 0
    },
    {
      "payload": [
        {
          "key": "kndctr_53A16ACB5CC1D3760A495C99_AdobeOrg_identity",
          "value": "CiYwN[...]9Lw==",
          "maxAge": 34128000
        }
      ],
      "type": "state:store"
    }
  ]
}



If the visitor qualifies for a personalization activity based on data sent to Offer Decisioning, then the relevant activity content is found under the handle object, where the type is personalization:decisions.

Other content is returned under the handle object as well. Other content types are not relevant to Offer Decisioning personalization. If the visitor qualifies for multiple activities, they are contained in an array.

Property

Description

Example

scope

The decision scope associated with the proposed offers that were returned.

"scope": "eyJhY3Rpdm[...]EwMGMifQ=="

activity.id

The unique ID of the offer activity.

"id": "xcore:offer-activity:11cfb1fa93381aca"

placement.id

The unique ID of the offer placement.

"id": "xcore:offer-placement:1175009612b0100c"

items.id

The unique ID of the proposed offer.

"id": "xcore:personalized-offer:124cc332095cfa74"

schema

The schema of the content associated with the proposed offer.

"schema": "https://ns.adobe.com/experience/offer-management/content-component-html"

data.id

The unique ID of the proposed offer.

"id": "xcore:personalized-offer:124cc332095cfa74"

format

The format of the content associated with the proposed offer.

"format": "text/html"

language

An array of languages associated with the content from the proposed offer.

"language": [ "en-US" ]

content

Content associated with the proposed offer in the format of a string.

"content": "<p style="color:red;">20% Off on shipping</p>"

deliveryUrl

Image content associated with the proposed offer in the format of a URL.

"deliveryURL": "https://image.jpeg"

characteristics

JSON object containing the characteristics associated with the proposed offer.

"characteristics": { "foo": "bar", "foo1": "bar1" }
