Configuring a Secure Proxy

For security reasons, Runtime does not expose egress IPs. Customers who need a way to secure communication with downstream services using IP whitelisting can use a proxy between their backend service and I/O Runtime.

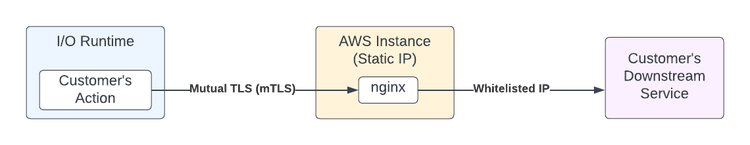

This can be done by adding a proxy component (in this example, an AWS EC2 instance running nginx). The proxy component will have a fixed IP address, so using an IP allowlist can secure the backend service. Communication between I/O Runtime and the proxy component will be secured via mutual TLS (mTLS) communication.

The following steps outline how to:

• Configure the NGINX proxy component to support mutual TLS (mTLS)
• Configure an AppBuilder action to use mTLS to securely communicate with the proxy component

An EC2 instance with NGINX installed is a prerequisite for configuring this proxy. The official NGINX documentation has more information.

1. Verify SSH connectivity to the EC2 instance. (screenshot of terminal/template cmd)

   Copy
   ssh -i <your-key.pem> ec2-user@<EC2-IPAddress>
   Copied to your clipboard
   ssh -i <your-key.pem> ec2-user@<EC2-IPAddress>

2. Generate certificates needed for mTLS (link out to example-mtls project for generating secrets)

   • Generate mtls_server.key/.crt

     Copy
     openssl req -x509 -nodes -days 3650 -newkey rsa:4096 -keyout mtls_server.key -out mtls_server.crt
     Copied to your clipboard
     openssl req -x509 -nodes -days 3650 -newkey rsa:4096 -keyout mtls_server.key -out mtls_server.crt

   • Generate mtls_client.key/.crt

     Copy
     openssl req -x509 -nodes -days 3650 -newkey rsa:4096 -keyout mtls_client.key -out mtls_client.crt
     Copied to your clipboard
     openssl req -x509 -nodes -days 3650 -newkey rsa:4096 -keyout mtls_client.key -out mtls_client.crt

3. Use the referenced file mtls.conf.example and replace DESTINATION_HOST with the final destination you would like to proxy to. For example, if your target host is api.myhost.com you would search for this line:

   Copy
   proxy_pass https://DESTINATION_HOST
   Copied to your clipboard
   proxy_pass https://DESTINATION_HOST

   Then make the replacement:

   Copy
   proxy_pass https://api.myhost.com
   Copied to your clipboard
   proxy_pass https://api.myhost.com

   Save the resulting file locally as mtls.conf, in the same folder as your certificates.

4. Copy sample NGINX configuration to EC2 instance with updated placeholder details. (terminal screenshots for scp cmds)

   1. First copy files to home folder:

      Copy
      scp -i <your-key.pem> mtls_server.key mtls_server.crt mtls_client.key mtls_client.crt mtls.conf ec2-user@<EC2-IPAddress>:~/
      Copied to your clipboard
      scp -i <your-key.pem> mtls_server.key mtls_server.crt mtls_client.key mtls_client.crt mtls.conf ec2-user@<EC2-IPAddress>:~/

   2. Then move them into place, while connected via SSH to the ec2 instance:

      Copy
      sudo mv ~/mtls* /etc/nginx/conf.d/
      Copied to your clipboard
      sudo mv ~/mtls* /etc/nginx/conf.d/

5. Restart nginx

6. Verify you can connect via curl locally from the ec2 instance:

   Copy
   $ curl -ki --cert /etc/nginx/conf.d/mtls_client.crt --key /etc/nginx/conf.d/mtls_client.key https://localhost/
   Copied to your clipboard
   $ curl -ki --cert /etc/nginx/conf.d/mtls_client.crt --key /etc/nginx/conf.d/mtls_client.key https://localhost/

   • To preserve your changes, you may create an AMI from your running AWS instance.

7. In your AppBuilder app, you will need to make changes to wire the mTLS client key and certificate.

   • .env: Add the following lines with paths to your mtls client certificate files.

     Copy
     ## Support mTLS
     __AIO_MTLS_CERT=(cat /path/to/mtls_client.crt)
     __AIO_MTLS_KEY=(cat /path/to/mtls_client.key)
     Copied to your clipboard
     ## Support mTLS
     __AIO_MTLS_CERT=(cat /path/to/mtls_client.crt)
     __AIO_MTLS_KEY=(cat /path/to/mtls_client.key)

   • app.config.yaml: Add the following default parameters pointing to the environment variables.

     Copy
     inputs:
         __AIO_MTLS_CERT: $__AIO_MTLS_CERT
         __AIO_MTLS_KEY: $__AIO_MTLS_KEY
     Copied to your clipboard
     inputs:
         __AIO_MTLS_CERT: $__AIO_MTLS_CERT
         __AIO_MTLS_KEY: $__AIO_MTLS_KEY

8. In your action code, you can reference these environment variables when making an HTTP request to the proxy component (replace the PROXY_ENDPOINT with your AWS EC2 hostname/IP):

   Copy
   // configure the client side of mTLS
   const options = {
       cert: params.__AIO_MTLS_CERT,
       key:  params.__AIO_MTLS_KEY,
       rejectUnauthorized: false, // in test, if you're working with self-signed certificates
       keepAlive: false, // switch to true if you're making a lot of calls from this client
   };

   const sslConfiguredAgent = new https.Agent(options);

   try {
       // Replace the `PROXY_ENDPOINT` with your AWS EC2 hostname/IP
       const url = "https://PROXY_ENDPOINT/path/to/resource?param=value"

       console.log(`Making call to: [${url}]`);
       // make the request just as you would normally ...
       const response = await fetch(url, {
       agent: sslConfiguredAgent, // ... but add the agent we initialised
       });

       const responseBody = await response.text();

       // handle the response as you would see fit
       console.log(responseBody);
       return { statusCode: 200, body: { resp: responseBody }};
   } catch (error) {
       // return the error
       console.log(error);
       return { statusCode: 418, body: { error: error }};
   }
   Copied to your clipboard
   // configure the client side of mTLS
   const options = {
       cert: params.__AIO_MTLS_CERT,
       key:  params.__AIO_MTLS_KEY,
       rejectUnauthorized: false, // in test, if you're working with self-signed certificates
       keepAlive: false, // switch to true if you're making a lot of calls from this client
   };

   const sslConfiguredAgent = new https.Agent(options);

   try {
       // Replace the `PROXY_ENDPOINT` with your AWS EC2 hostname/IP
       const url = "https://PROXY_ENDPOINT/path/to/resource?param=value"

       console.log(`Making call to: [${url}]`);
       // make the request just as you would normally ...
       const response = await fetch(url, {
       agent: sslConfiguredAgent, // ... but add the agent we initialised
       });

       const responseBody = await response.text();

       // handle the response as you would see fit
       console.log(responseBody);
       return { statusCode: 200, body: { resp: responseBody }};
   } catch (error) {
       // return the error
       console.log(error);
       return { statusCode: 418, body: { error: error }};
   }

9. Deploy your application to I/O Runtime via aio app deploy and test out the setup by invoking your action.
